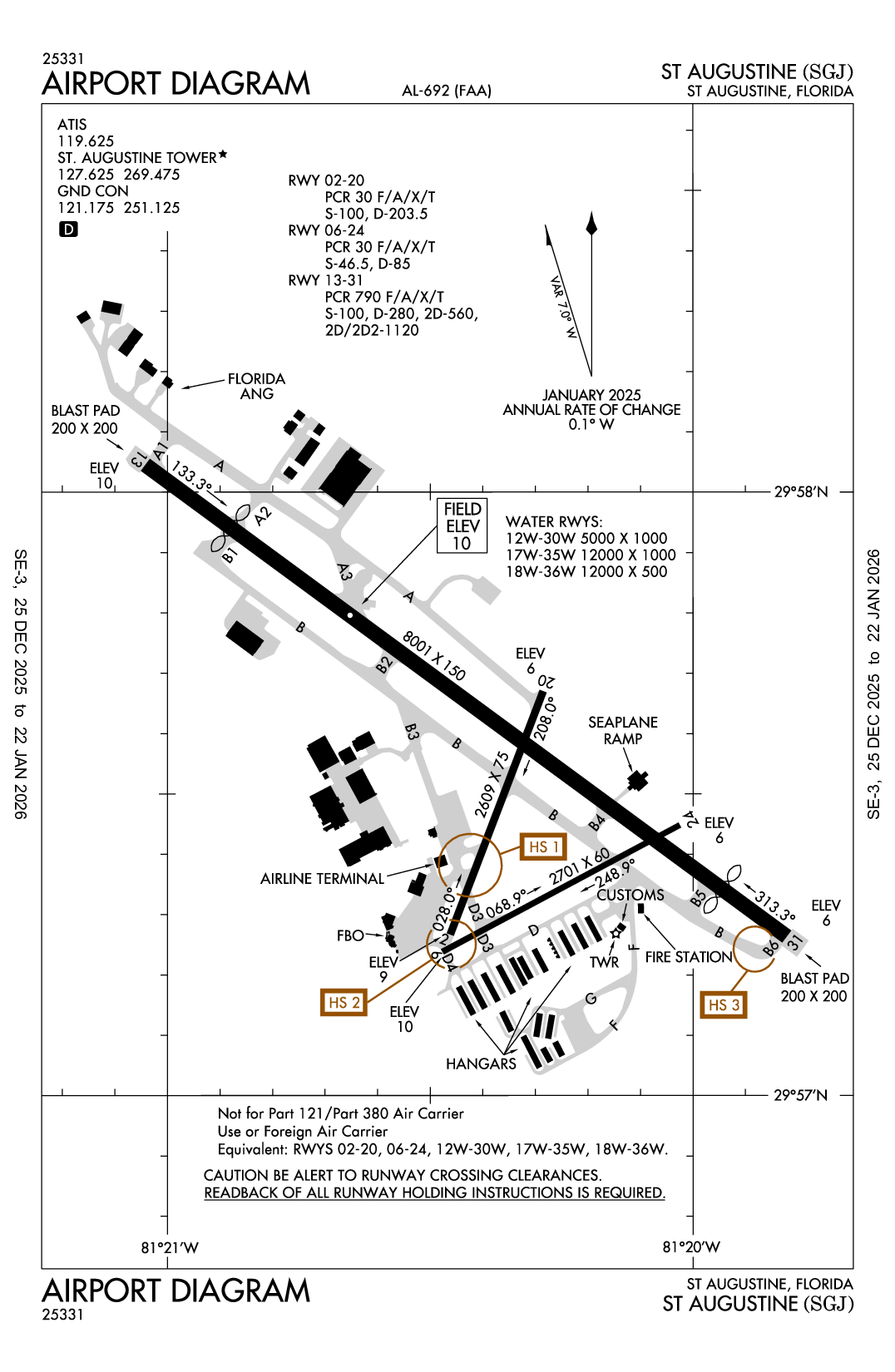

ST AUGUSTINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSGJ
ICAO KSGJIATA USTLocal SGJ
ST AUGUSTINE
PublicPUB

4 miles N of ST AUGUSTINE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 57' 33"N 81° 20' 23"W
Elevation
10' MSL
Pattern Alt
1010' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A, 100LL
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
10/1/26-10/29/26
KSGJ VFR
11:56 AM EDT
Few 4,900'
10sm
75°F
57°F
30.14"Hg
010° 14kts
AO2 SLP207 T02390139 $
METAR KSGJ 231556Z 01014KT 10SM FEW049 24/14 A3014 RMK AO2 SLP207 T02390139 $
+ Add Your Business

KSGJ FBOs

Promote Listing
Atlantic Aviation
UNICOM: 130.05
Phone: (904) 824-1995
No Rating Available
1 Review (Read | Sign In To Write)
0 out of 1 Recommend
Independent
As of 10/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.51 10.58
Fuel Notes
Prices include tax
Promote Listing
St. Augustine Airport
UNICOM: 122.95
Phone: (904) 209-0090
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.26
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.

KSGJ Aircraft Service & Maintenance

Promote Listing
Extreme Aerosports Services LLC dba Southeast Aero Services
Phone: (904) 824-1899
Fax: (904) 824-6334
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.625
AWOS-3PT 119.625
(904) 824-7084

Common

CTAF 127.625
ACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
UNICOM 122.95

Ground

ST AUGUSTINE GROUND 121.175
0700-2100

Tower

ST AUGUSTINE TOWER 127.625
0700-2100

Approach

JACKSONVILLE APPROACH 120.75

Departure

JACKSONVILLE DEPARTURE 120.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Hotspot

Terminal Area Forecast

KSGJ
Fri, 10/23 7:20 AM EDT
Fri, 10/23 8:00 AM EDT - Sat, 10/24 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Few 3,000'
6sm
040° 9kts
VFR
11:00 AM EDT - 10:00 PM EDT
Scattered 3,500'
6sm
030° 15kts
Gusts 25kts
VFR
10:00 PM EDT - 6:00 AM EDT
Broken 3,500'
6sm
020° 14kts
Gusts 22kts
VFR
6:00 AM EDT - 8:00 AM EDT
Broken 10,000'
6sm
020° 16kts
Gusts 22kts
TAF KSGJ 231120Z 2312/2412 04009KT P6SM FEW030
   FM231500 03015G25KT P6SM SCT035
   FM240200 02014G22KT P6SM BKN035
   FM241000 02016G22KT P6SM BKN100
KSGJ
EffectiveExpiresCategoryNOTAM
Domestic
10/22/26
1411Z
Runway!SGJ 10/019 SGJ RWY 31 ALS U/S 2610221411-2705282000EST
10/19/26
2149Z
12/3/26
2149Z
!SGJ 10/016 SGJ OBST TOWER LGT (ASR 1315482) 295121.30N0812852.40W (9.6NM SW SGJ) 324FT (301FT AGL) U/S 2610192149-2612032149
10/19/26
1942Z
10/31/26
2200Z
!SGJ 10/015 SGJ AD AP SELF SERVE FUEL NOT AVBL 2610191942-2610312200
10/13/26
0148Z
11/13/26
2359Z
!SGJ 10/011 SGJ OBST TOWER LGT (ASR 1261211) 294753.70N0812615.80W (11.1NM SSW SGJ) 290.7FT (259.8FT AGL) U/S 2610130148-2611132359
10/8/26
1855Z
Runway!SGJ 10/007 SGJ RWY 31 PAPI U/S 2610081855-2610302100EST
10/5/26
2306Z
1/4/27
0006Z
!SGJ 10/005 SGJ OBST TOWER LGT (ASR 1200731) 294638.70N0812706.40W (12.5NM SSW SGJ) 297.6FT (269.7FT AGL) U/S 2610052306-2701040006
10/3/26
0809Z
11/17/26
0908Z
!SGJ 10/003 SGJ OBST TOWER LGT (ASR 1049479) 300615.00N0812810.80W (10.8NM NW SGJ) 519.0FT (502.0FT AGL) U/S 2610030809-2611170908
9/16/26
1115Z
Runway!SGJ 09/014 SGJ RWY 31 RAI LGT U/S 2609161115-2705072000EST
9/5/26
0011Z
12/4/26
0111Z
!SGJ 09/004 SGJ OBST TOWER LGT (ASR 1012539) 295154.10N0811733.60W (6.1NM SSE SGJ) 332.0FT (325.1FT AGL) U/S 2609050011-2612040111
9/1/26
2014Z
11/30/26
2114Z
!SGJ 09/001 SGJ OBST TOWER LGT (ASR 1200725) 300734.90N0812326.70W (10.3NM NNW SGJ) 296.9FT (292.0FT AGL) U/S 2609012014-2611302114
8/18/26
1638Z
11/17/26
0400Z
!SGJ 08/008 SGJ OBST TOWER LGT (ASR 1001674) 294452.50N0811955.50W (12.6NM S SGJ) 294.0FT (264.1FT AGL) U/S 2608181638-2611170400
6/24/26
1005Z
!SGJ 06/017 SGJ NAV ILS RWY 31 NOT MNT 2606241005-2712032000EST
FDC
3/31/26
1237Z
!FDC 6/6168 SGJ IAP ST AUGUSTINE, ST AUGUSTINE, FL.
RNAV (GPS) RWY 31, AMDT 2A...
LPV DA 258/HAT 250 ALL CATS.
2603311237-2611101236EST
9/9/25
1842Z
!FDC 5/0380 SGJ IAP NORTHEAST FLORIDA RGNL, ST AUGUSTINE, FL.
RNAV (GPS) RWY 13, ORIG-F...
LNAV/VNAV DA 395/HAT 385 ALL CATS.
CIRCLING CAT C MDA 680/HAA 670.
LNAV CAT C VIS 1 3/8.
CHANGE NOTE TO READ: RWY 13 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
STRAIGHT-IN MINIMUMS NA AT NIGHT.
CIRCLING RWY 2, 6 NA AT NIGHT.
2509091842-2709092359EST
Yes
0600-2200
ST AUGUSTINE ARPT AUTH
4796 US 1 NORTH
ST AUGUSTINE, FL 32095
Phone: 904-209-0090
COURTNEY PITTMAN
4796 US 1 NORTH
ST AUGUSTINE, FL 32095
Phone: 904-209-0090
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
SGJ
--
ACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

2609 ft. x 75 ft.
ASPH
Good
NONE
MED
30/F/A/X/T
100,000lbs
204,000lbs
--
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 57' 16"N 29° 57' 40"N
Longitude 81° 20' 28"W 81° 20' 17"W
Elevation 9' 6'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

2701 ft. x 60 ft.
ASPH
Good
NONE
MED
30/F/A/X/T
46,000lbs
85,000lbs
--
--
  Runway 06 Runway 24
True Heading 62°242°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 29° 57' 14"N 29° 57' 27"N
Longitude 81° 20' 29"W 81° 20' 02"W
Elevation 10' 6'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3.25° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12W/30W

5000 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway 12W Runway 30W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

8001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
790/F/A/X/T
100,000lbs
280,000lbs
560,000lbs
1,120,000lbs
  Runway 13 Runway 31
True Heading 126°306°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 29° 58' 03"N 29° 57' 16"N
Longitude 81° 21' 03"W 81° 19' 49"W
Elevation 10' 6'
Threshold Crossing Height 44 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17W/35W

12000 ft. x 1000 ft.

WATER
NONE


--
--
--
--
  Runway 17W Runway 35W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18W/36W

12000 ft. x 500 ft.

WATER
NONE


--
--
--
--
  Runway 18W Runway 36W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-4AEROBATIC ACT E SIDE OF RWY 13/31 CTC TWR FOR TFC & GNV RADIO FOR TIMES.
A110-5FICON NOT MNTD 2100 - 0700 LCL.
A110-6FOR CD WHEN ATCT CLSD CTC JACKSONVILLE APCH AT 904-741-0284.
A26PPR 24 HRS FOR UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS CALL AMGR 904-209-0090.
A30-02/20RWY 02/20 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-06/24RWY 06/24 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-12W/30WRWY 12W/30W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-17W/35WRWY 17W/35W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-18W/36WRWY 18W/36W NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A57-13RWY 13 APCH SLP 34:1 TO MKD DSPCD THR.
A58-13ROAD 15 FT TALL 200 FT BFR AER OF RWY 13 150 RIGHT OF CNTRLN.
A70-100LLJET SINGLE POINT REFUELING AVBL.
A70-ASELF SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APTACTVT MALSR RWY 31; HIRL RWY 13/31; MIRL RWY 06/24 & 2/20 - CTAF. PAPI RWY 06 & 31 AND VASI RWY 13 OPR CONSLY.
E80AINTL LRA. USER FEE CTC U.S.CUSTOMS ON ARPT 904-209-0099.
ST AUGUSTINE (ICAO: KSGJ, IATA: SGJ) is a public airport located in ST AUGUSTINE, FL, US.
