iFlightPlanner



...

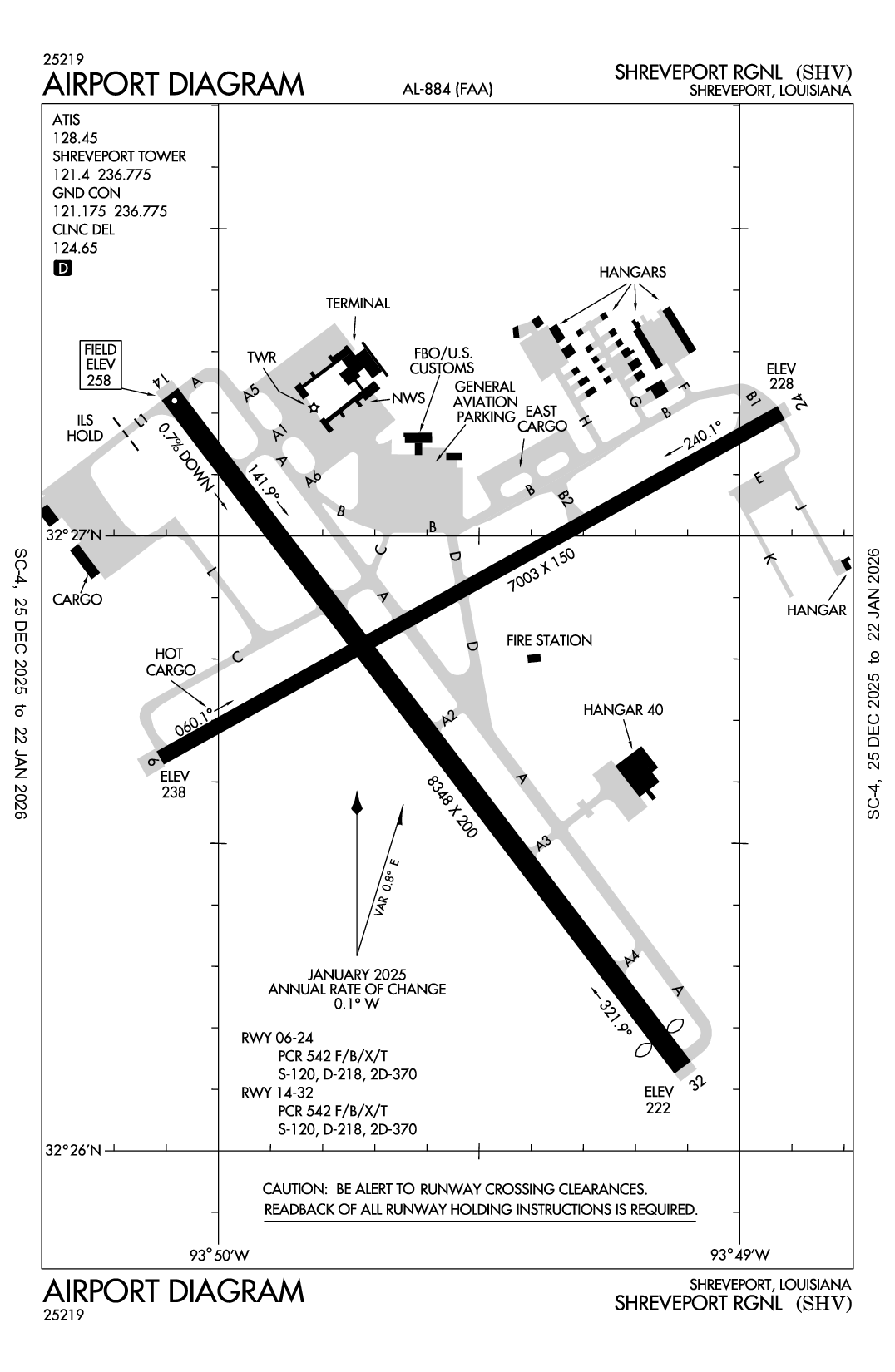

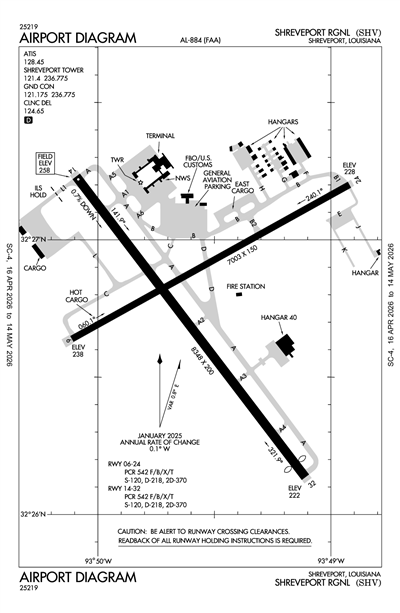

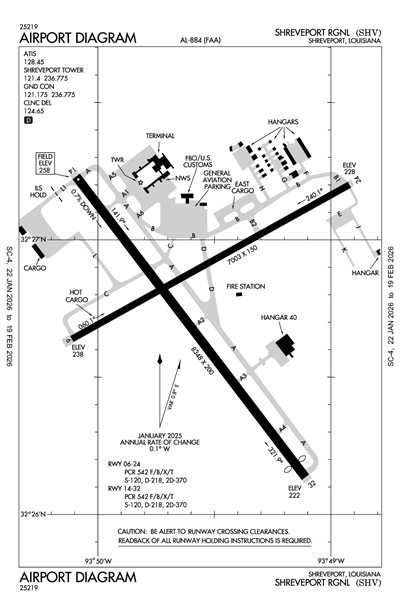

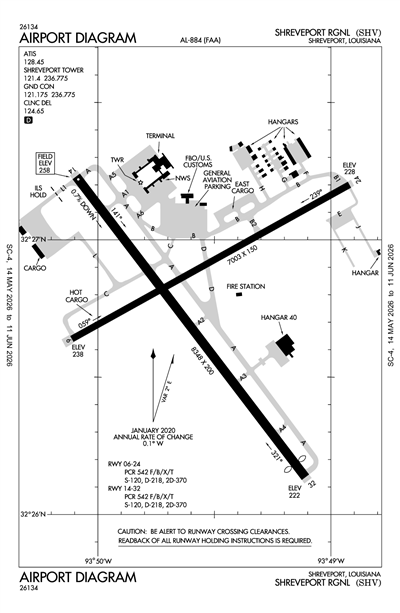

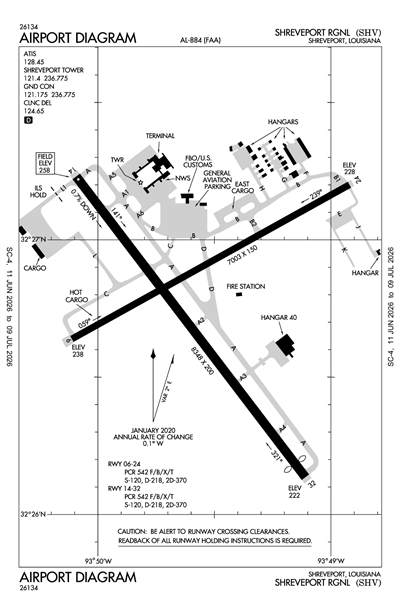

SHREVEPORT RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSHV
SHREVEPORT RGNL
PublicPUB

4 miles SW of SHREVEPORT, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 26' 47"N 93° 49' 34"W
258' MSL
1258' MSL
02E
JET A, 100LL
DE RIDDER (DRI)
MEMPHIS
FORT WORTH (ZFW)
11/27/25-12/25/25
KSHV LIFR
12:56 AM CST
Light Drizzle and Mist
Overcast 300'
1.5sm
61°F
57°F
29.87"Hg
150° 5kts
DZB40 SLPNO
METAR KSHV 180656Z 15005KT 1 1/2SM -DZ BR OVC003 16/14 A2987 RMK DZB40 SLPNO
+ Add Your Business

KSHV FBOs

Promote Listing
Signature Aviation
UNICOM: 130.075
Phone: (318) 636-1000
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.97 6.14 6.44
Fuel Notes
Prices include tax

KSHV Other Aviation Services

Promote Listing
Outerlink Global Solutions
Phone: (817) 456-3747
Fax: (318) 222-0503
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 128.45

ASOS

ASOS
318-216-0546
 128.45

Clearance Delivery

CD/P
 124.65

Emergency

EMERG
 121.5

Ground

GND/P
 121.175

Tower

LCL/P
 121.4

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSHV
Thu, 12/18 12:35 AM CST
Thu, 12/18 1:00 AM CST - Fri, 12/19 12:00 AM CST
LIFR
1:00 AM CST - 4:00 AM CST
Mist
Overcast 200'
1sm
150° 6kts
LIFR
4:00 AM CST - 8:30 AM CST
Fog
Overcast 100'
0.5sm
170° 5kts
LIFR
8:30 AM CST - 11:00 AM CST
Mist
Overcast 400'
2sm
180° 6kts
MVFR
11:00 AM CST - 4:00 PM CST
Showers in vicinity
Overcast 1,000'
6sm
230° 10kts
VFR
4:00 PM CST - 7:00 PM CST
Few 2,500'
6sm
310° 10kts
VFR
7:00 PM CST - 12:00 AM CST
Few 25,000'
6sm
320° 6kts
TAF KSHV 180635Z 1807/1906 15006KT 1SM BR OVC002
   FM181000 17005KT 1/2SM FG OVC001
   FM181430 18006KT 2SM BR OVC004
   FM181700 23010KT P6SM VCSH OVC010
   FM182200 31010KT P6SM FEW025
   FM190100 32006KT P6SM FEW250
KSHV
EffectiveExpiresCategoryNOTAM
Domestic
12/18/25
0700Z
12/31/25
2200Z
!SHV 12/063 SHV TWY L BTN TWY C AND WEST CARGO RAMP CLSD 2512180700-2512312200
12/18/25
0700Z
12/31/25
2359Z
!SHV 12/062 SHV TWY E NONMOVEMENT AREA 2512180700-2512312359
12/18/25
0659Z
12/31/25
2200Z
!SHV 12/061 SHV TWY C BTN RWY 14/32 AND APCH END RWY 06 CLSD 2512180659-2512312200
12/18/25
0658Z
12/31/25
2200Z
Runway!SHV 12/060 SHV RWY 06/24 CLSD 2512180658-2512312200
12/18/25
0654Z
12/31/25
2300Z
!SHV 12/059 SHV TWY C BTN RWY 14/32 AND TWY A CLSD 2512180654-2512312300
12/11/25
2000Z
3/11/26
0500Z
!SHV 12/039 SHV OBST TOWER LGT (ASR 1064500) 322821.20N0934900.30W (1.6NM NNE SHV) 442.9FT (189.0FT AGL) U/S 2512112000-2603110500
12/8/25
1443Z
12/18/25
2200Z
Runway!SHV 12/029 SHV RWY 24 RWY END ID LGT U/S 2512081443-2512182200
12/8/25
1443Z
12/18/25
2200Z
Runway!SHV 12/028 SHV RWY 06 RWY END ID LGT U/S 2512081443-2512182200
12/8/25
1400Z
12/18/25
2200Z
Runway!SHV 12/026 SHV RWY 24 PAPI U/S 2512081400-2512182200
12/8/25
1400Z
12/18/25
2200Z
!SHV 12/025 SHV NAV ILS RWY 06 LOC/DME U/S 2512081400-2512182200
12/8/25
1227Z
Runway!SHV 12/023 SHV RWY 14 RVRM U/S 2512081227-2512222000EST
12/8/25
1227Z
Runway!SHV 12/021 SHV RWY 32 RVRM U/S 2512081227-2512222000EST
12/6/25
1451Z
12/31/25
2300Z
Runway!SHV 12/016 SHV RWY 14 RTZL U/S 2512061451-2512312300
11/29/25
1850Z
12/31/25
2300Z
!SHV 11/050 SHV TWY A IN PAVEMENT RWY GUARD LGT AT APCH END RWY 14 NOT STD 2511291850-2512312300
11/29/25
1849Z
12/31/25
2300Z
!SHV 11/049 SHV OBST BLDG (ASN UNKNOWN) 322637N0934912W (0.434NM NE APCH END RWY 32)
UNKNOWN (200FT AGL) NOT LGTD 2511291849-2512312300
11/29/25
1849Z
12/31/25
2300Z
Runway!SHV 11/048 SHV RWY 14/32 RCLL U/S 2511291849-2512312300
11/29/25
1848Z
12/31/25
2300Z
Runway!SHV 11/047 SHV RWY 06 PAPI U/S 2511291848-2512312300
11/29/25
1847Z
12/31/25
2300Z
!SHV 11/045 SHV TWY A CL MARKINGS FADED 2511291847-2512312300
11/14/25
2105Z
3/31/26
2359Z
!SHV 11/031 SHV NAV ILS RWY 14 IM U/S 2511142105-2603312359
9/26/25
0403Z
1/30/26
2359Z
!SHV 09/048 SHV OBST TOWER LGT (ASR 1205585) 322348.20N0934828.20W (3.1NM SSE SHV) 449.1FT (245.7FT AGL) U/S 2509260403-2601302359
7/23/25
1353Z
!SHV 07/031 SHV NAV ILS RWY 32 OM U/S 2507231353-2602042111EST
FDC
12/5/25
1927Z
!FDC 5/5464 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
ILS RWY 14 (CAT II), AMDT 26B... ...
S-ILS 14: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALTIMETER. I-SHV INNER MARKER OUT OF SERVICE. 2512051927-2607171927EST
6/2/25
2034Z
!FDC 5/8060 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
RNAV (GPS) RWY 14, AMDT 2C...
LNAV/VNAV DA 680/HAT 442 ALL CATS. LNAV MDA 780/HAT 522 ALL CATS, VIS CAT C/D RVR 5000. CIRCLING CAT A MDA 820/HAA 562. VDP 1.16NM TO RW14. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2506022034-2601122034EST
6/2/25
2034Z
!FDC 5/8058 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
LOC RWY 6, AMDT 4...
CIRCLING CAT A MDA 820/HAA 562. WOXAT FIX MINIMUMS: CIRCLING CAT A MDA 820/HAA 562. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2506022034-2601122034EST
6/2/25
2034Z
!FDC 5/8055 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
ILS OR LOC RWY 14, AMDT 26B...
ILS OR LOC RWY 32, AMDT 6B...
RNAV (GPS) RWY 24, AMDT 2C...
RNAV (GPS) RWY 32, AMDT 2B...
CIRCLING CAT A MDA 820/HAA 562. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2506022034-2601122034EST
6/2/25
2034Z
!FDC 5/8052 SHV IAP SHREVEPORT RGNL, SHREVEPORT, LA.
RNAV (GPS) RWY 6, AMDT 4...
LNAV MDA 780/HAT 522 ALL CATS. CIRCLING CAT A MDA 820/HAA 562. VDP 1.34NM TO RW06. TEMPORARY CRANE 469 MSL 4947FT NW OF SHV AIRPORT (2023-ASW-5818-NRA).
2506022034-2601122034EST
Yes
ALL
CITY OF SHREVEPORT
505 TRAVIS STREET
SHREVEPORT, LA 71101
Phone: 318-673-5050
LARRY BLACKWELL
5103 HOLLYWOOD AVE SUITE 300
SHREVEPORT, LA 71109
Phone: 318-673-5370
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
SHV
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Avionics
Cargo Handling
Charter Service

Runway 06/24

7003 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

120,000lbs
218,000lbs
370,000lbs
--
  Runway 06 Runway 24
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 26' 38"N 32° 27' 12"N
Longitude 93° 50' 07"W 93° 48' 55"W
Elevation 238' 228'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

8348 ft. x 200 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
218,000lbs
370,000lbs
--
  Runway 14 Runway 32
True Heading 143°323°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 27' 14"N 32° 26' 08"N
Longitude 93° 50' 06"W 93° 49' 07"W
Elevation 258' 222'
Threshold Crossing Height 50 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL MON-FRI 0800-1700; OTHER TIMES BY APPOINTMENT CALL 318-635-7873 OR 800-973-2867.
A110-4BIRD ACTIVITY INVOF ARPT.
SHREVEPORT RGNL (ICAO: KSHV, IATA: SHV) is a public airport located in SHREVEPORT, LA.
