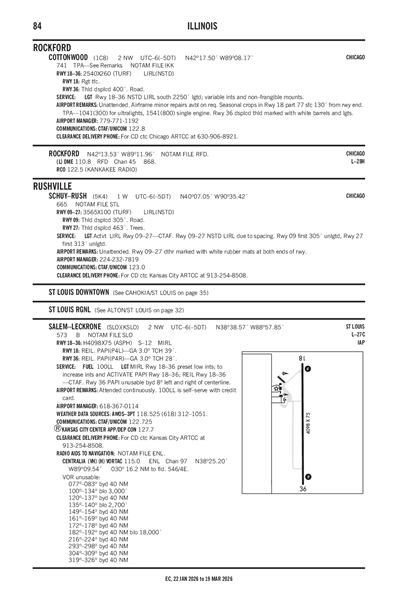

SALEM-LECKRONE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSLO
SALEM-LECKRONE
PublicPUB

2 miles NW of SALEM, IL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 38' 34"N 88° 57' 51"W
573' MSL
1573' MSL
01W
100LL
SAINT LOUIS (STL)
ST LOUIS
KANSAS CITY (ZKC)
11/28/24-12/26/24
KSLO VFR
6:15 AM CST
Overcast 3,700'
10sm
40°F
25°F
30.21"Hg
180° 9kts
AO2 T00461037
KSLO 231215Z AUTO 18009KT 10SM OVC037 05/M04 A3021 RMK AO2 T00461037

KSLO FBOs

Tate's Flying Service
UNICOM: 122.8
Phone: (618) 548-2411
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/11
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.55
Full Serve 5.55
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

AWOS-3PT

AWOS-3PT
618-312-1051
118.525

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMVN (20nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Overcast 7,000'
Scattered 6,000'
6sm
170° 8kts
VFR
10:00 AM CST - 9:00 PM CST
Overcast 5,000'
6sm
200° 10kts
MVFR
9:00 PM CST - 6:00 AM CST
Light Rain
Overcast 3,000'
5sm
220° 5kts
KMVN 231120Z 2312/2412 17008KT P6SM SCT060 OVC070
   FM231600 20010KT P6SM OVC050
   FM240300 22005KT 5SM -RA OVC030
KSLO
Domestic
12/9/240918Z !SLO 12/002 SLO OBST TOWER LGT (ASN 2018-AGL-11924-OE) 383639N0884833W (7.5NM ESE SLO) 752FT (226FT AGL) U/S 2412090918-2501230917
12/4/241631Z !SLO 12/001 SLO OBST TOWER LGT (ASR 1008228) 383712.00N0885750.00W (1.4NM S SLO) 720.1FT (184.1FT AGL) U/S 2412041631-2503040500
11/24/241334Z !SLO 11/004 SLO OBST TOWER LGT (ASN 2016-AGL-15163-OE) 383124N0884944W (9.5NM SE SLO) 833FT (256FT AGL) U/S 2411241334-2501081333
11/22/241302Z !SLO 11/002 SLO OBST TOWER LGT (ASR 1221186) 384806.90N0885328.10W (10.2NM NNE SLO) 905.8FT (315.0FT AGL) U/S 2411221302-2501061301
9/26/241543Z !SLO 09/006 SLO RWY 36 RWY END ID LGT U/S 2409261543-2503262111EST
9/26/241541Z !SLO 09/005 SLO RWY 18 RWY END ID LGT U/S 2409261541-2503262111EST
FDC
9/27/232005Z !FDC 3/6563 SLO ODP SALEM-LECKRONE, SALEM, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
TAKEOFF OBSTACLE NOTES: RWY 18: TREE 108 FT FROM DER, 192 FT RIGHT OF CENTERLINE, 9 FT AGL/566 FT MSL.
TREE 681 FT FROM DER, 484 FT LEFT OF CENTERLINE, 621 FT MSL.
TREES BEGINNING 717 FT FROM DER, 291 FT LEFT OF CENTERLINE, UP TO 635 FT MSL.
TREES BEGINNING 1064 FT FROM DER, 412 FT RIGHT OF CENTERLINE, UP TO 601 FT MSL.
TREES BEGINNING 1611 FT FROM DER, 511 FT RIGHT OF CENTERLINE, UP TO 616 FT MSL.
TREES BEGINNING 1792 FT FROM DER, 517 FT RIGHT OF CENTERLINE, UP TO 617 FT MSL.
TREE 1892 FT FROM DER, 945 FT RIGHT OF CENTERLINE, 623 FT MSL.
TREE 2417 FT FROM DER, 994 FT RIGHT OF CENTERLINE, 635 FT MSL.
RWY 36: TREE 59 FT FROM DER, 248 FT RIGHT OF CENTERLINE, 4 FT AGL/577 FT MSL.
TREE 318 FT FROM DER, 513 FT RIGHT OF CENTERLINE, 588 FT MSL.
TREE 2912 FT FROM DER, 1145 FT LEFT OF CENTERLINE, 647 FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2309272005-2509272005EST
No
ALL
SALEM AIRPORT AUTHORITY
PO BOX 353
SALEM, IL 62881
Phone: 618-367-0114
ROBERT L.TATE JR
1100 AIRPORT RD
SALEM, IL 62881
Phone: 618-367-0114
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
SLO
--
MIRL RY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT PAPI RY 18/36, REIL RY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

4098 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 38' 55"N 38° 38' 14"N
Longitude 88° 57' 51"W 88° 57' 51"W
Elevation 573' 563'
Threshold Crossing Height 39 ft. AGL 28 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
SALEM-LECKRONE (ICAO: KSLO, IATA: SLO) is a public airport located in SALEM, IL.
