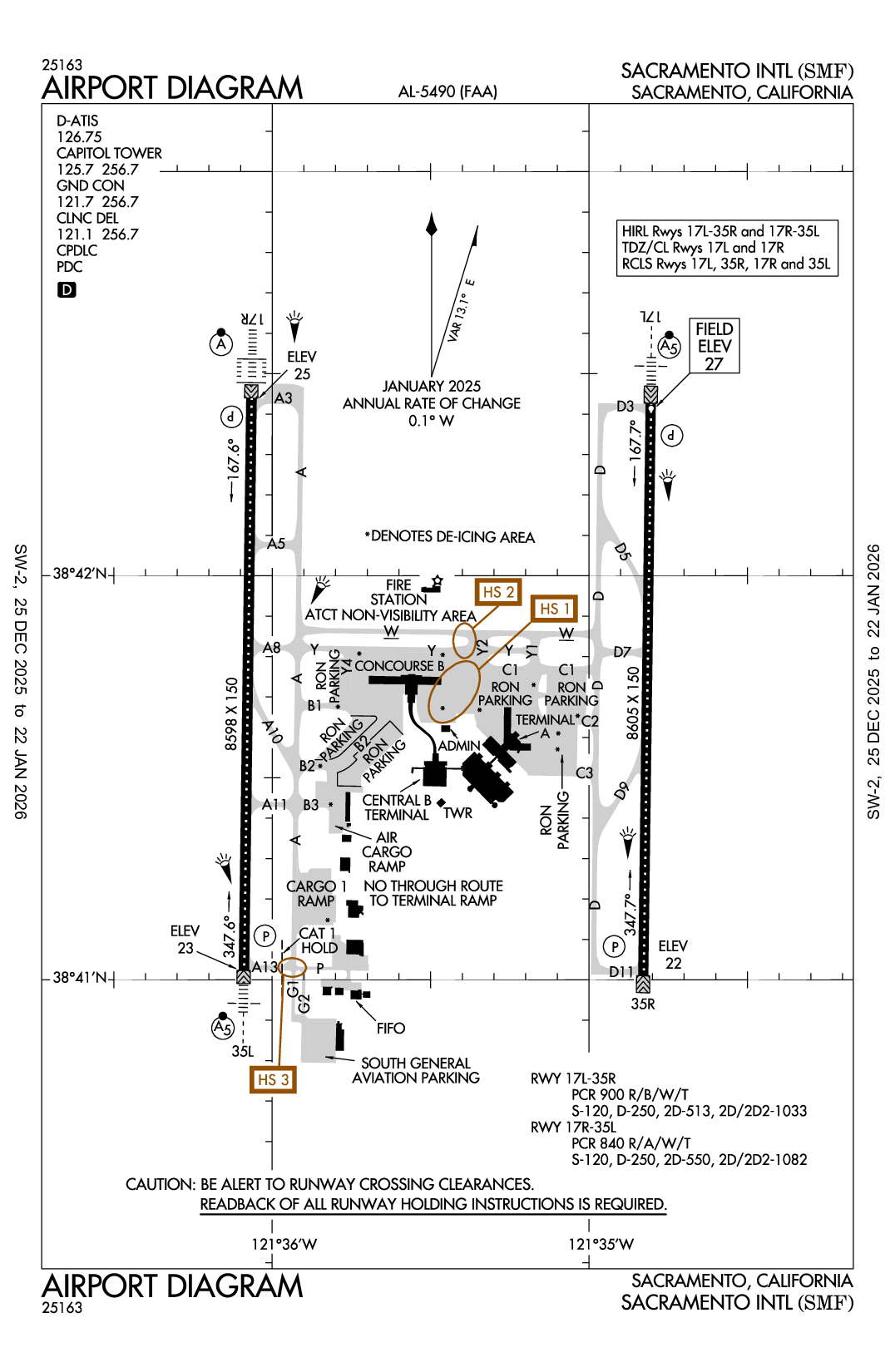

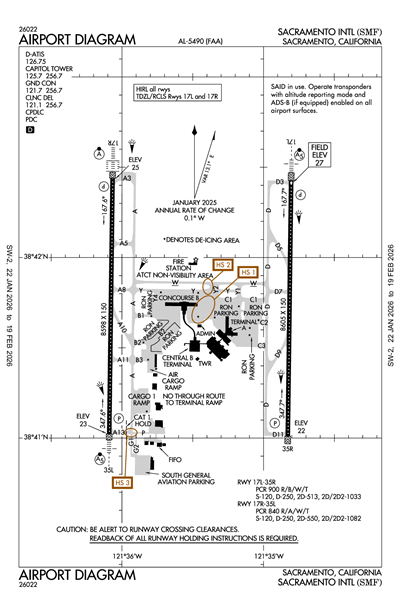

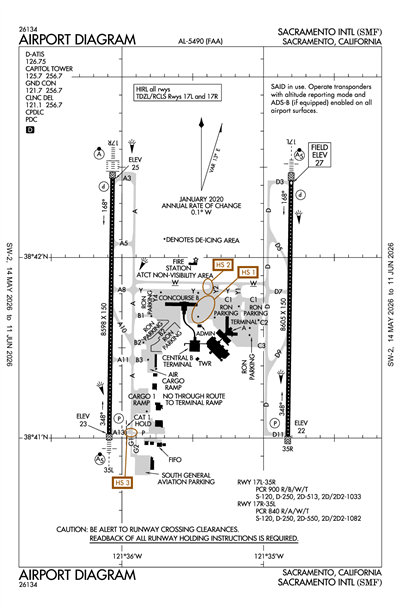

SACRAMENTO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSMF
SACRAMENTO INTL
PublicPUB

10 miles NW of SACRAMENTO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 41' 44"N 121° 35' 27"W
27' MSL
1027' MSL
13E
JET A, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
11/28/24-12/26/24
KSMF LIFR
3:53 AM PST
Drizzle
Overcast 1,200'
0.5sm
55°F
53°F
30.17"Hg
090° 3kts
AO2 SFC VIS 3/4 SLP217 P0001 60006 70010 T01280117 10128 20117 53004 $
KSMF 231153Z 09003KT 1/2SM R17R/6000FT DZ OVC012 13/12 A3017 RMK AO2 SFC VIS 3/4 SLP217 P0001 60006 70010 T01280117 10128 20117 53004 $
Add Your Business

KSMF FBOs

Promote Listing
Modern Aviation
UNICOM: 122.95
Phone: (916) 428-8292 x2
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.86 8.50 8.57
Fuel Notes
Prices include tax
Volume Discounts
Volume discounts available!
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KSMF
Mon, 12/23 3:51 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
IFR
4:00 AM PST - 11:00 AM PST
Mist
Overcast 900'
4sm
VRB° 5kts
LIFR
Temporary 4:00 AM PST - 6:00 AM PST
Fog
Broken 500'
0.5sm
Calm
MVFR
11:00 AM PST - 7:00 PM PST
Mist
Overcast 1,500'
6sm
VRB° 5kts
VFR
7:00 PM PST - 10:00 PM PST
Overcast 5,000'
6sm
150° 4kts
MVFR
10:00 PM PST - 4:00 AM PST
Mist
Overcast 2,000'
5sm
160° 11kts
KSMF 231151Z 2312/2412 VRB05KT 4SM BR OVC009
   TEMPO 2312/2314 1/2SM FG BKN005
   FM231900 VRB05KT 6SM BR OVC015
   FM240300 15004KT P6SM OVC050
   FM240600 16011KT 5SM BR OVC020
KSMF
Domestic
12/23/240329Z !SMF 12/050 SMF RWY 17L FICON 5/5/5 100 PCT WET OBS AT 2412230329. 2412230329-2412240329
12/23/240329Z !SMF 12/049 SMF RWY 17R FICON 5/5/5 100 PCT WET OBS AT 2412230329. 2412230329-2412240329
11/27/240125Z !SMF 11/060 SMF OBST TOWER LGT (ASR 1012084) 385228.60N1214227.80W (12.2NM NNW SMF) 260.8FT (236.9FT AGL) U/S 2411270125-2503270125
11/6/241900Z !SMF 11/015 SMF TWY A5 BTN RWY 17R/35L AND TWY A CLSD 2411061900-2502011500
FDC
10/31/241158Z !FDC 4/6793 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
ILS OR LOC RWY 17R, AMDT 16E...
CIRCLING MDA CATS A/B/C 540/HAA 513. KAYEG FIX MINIMUMS (DME REQUIRED): CIRCLING MDA CATS A/B/C 540/HAA 513. TEMPORARY CRANE 263 MSL 3763FT SE OF RWY 17R (2021-AWP-4609-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311158-2503151158EST
10/31/241158Z !FDC 4/6792 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (GPS) Y RWY 17R, AMDT 2D...
LNAV/VNAV DA 384/HAT 359 ALL CATS, VISIBLITY ALL CATS RVR 3000. LNAV MDA 480/HAT 455 ALL CATS, VISIBILITY CATS C/D RVR 4500. CIRCLING CAT A MDA 480/HAA 453. VDP AT 1.22NM TO RW17R. TEMPORARY CRANE 263 MSL 3763FT SE OF RWY 17R (2021-AWP-4609-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311158-2503151158EST
10/31/241158Z !FDC 4/6790 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
ILS OR LOC RWY 17L, AMDT 4D...
CIRCLING MDA CATS A/B/C 540/HAA 513. JOBUD FIX MINIMUMS (DME REQUIRED) CIRCLING MDA CATS A/B/C 540/HAA 513. TEMPORARY CRANE 263 MSL 4253FT SW OF RWY 17L (2021-AWP-4609-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311158-2503151158EST
10/31/241158Z !FDC 4/6789 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (GPS) Y RWY 17L, AMDT 3B...
LNAV/VNAV DA 384/HAT 357 ALL CATS, VISIBILITY ALL CATS RVR 3000. LNAV MDA 480/HAT 453 ALL CATS, VISIBILITY CATS C/D RVR 4500. CIRCLING MDA CATS A/B/C 540/HAA 513. VDP AT 1.22NM TO RW17L. TEMPORARY CRANE 263 MSL 4253FT SW OF RWY 17L (2021-AWP-4609-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311158-2503151158EST
10/31/241158Z !FDC 4/6788 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (RNP) Z RWY 17R, AMDT 2...
RNP 0.18 DA 382/HAT 357 ALL CATS, VISIBILITY ALL CATS RVR 3000. TEMPORARY CRANE 263 MSL 3763FT SE OF RWY 17R (2021-AWP-4609-NRA).
2410311158-2503151158EST
10/31/241158Z !FDC 4/6787 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (RNP) Z RWY 17L, AMDT 2...
RNP 0.30 DA 365/HAT 338 ALL CATS, VISIBILITY ALL CATS RVR 3000. TEMPORARY CRANE 263 MSL 4253FT SW OF RWY 17L (2021-AWP-4609-NRA).
2410311158-2503151158EST
10/31/241155Z !FDC 4/6775 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (GPS) Y RWY 35L, AMDT 3A...
LNAV/VNAV DA 384/HAT 360 ALL CATS, VIS ALL CATS RVR 3000. LNAV MDA 480/HAT 456 ALL CATS, VIS CATS C/D RVR 4500. CIRCLING CATS A/B/C MDA 540/HAA 513. VDP NA. TEMPORARY CRANE 132 MSL 1780FT NE OF RWY 35L (2022-AWP-1207-NRA), TEMPORARY CRANE 173 MSL 1772FT SE OF RWY 35L (2024-AWP-4300-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311155-2503301155EST
10/31/241155Z !FDC 4/6774 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
ILS OR LOC RWY 35L, AMDT 8...
CIRCLING CATS A/B/C MDA 540/HAA 513. TEMPORARY CRANE 132 MSL 1780FT NE OF RWY 35L (2022-AWP-1207-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311155-2503301155EST
10/31/241155Z !FDC 4/6773 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (RNP) Z RWY 35L, AMDT 2...
RNP 0.12 DA 370/HAT 346 ALL CATS, VIS ALL CATS RVR 3000. RNP 0.30 DA 413/HAT 389 ALL CATS, VIS ALL CATS RVR 3500. TEMPORARY CRANE 132 MSL 1780FT NE OF RWY 35L (2022-AWP-1207-NRA), TEMPORARY CRANE 173 MSL 1772FT SE OF RWY 35L (2024-AWP-4300-NRA).
2410311155-2503301155EST
10/31/241153Z !FDC 4/6769 SMF IAP SACRAMENTO INTL, SACRAMENTO, CA.
RNAV (GPS) Y RWY 35R, AMDT 2A...
LNAV/VNAV DA 384/ HAT 360 ALL CATS, VIS ALL CATS 1. LNAV MDA 400/ HAT 376 ALL CATS. CIRCLING CATS A/B/C MDA 540/HAA 513. VDP 0.98NM TO RW35R. TEMPORARY CRANES 95 MSL BEGINNING 1916FT W OF RWY 35R (2020-AWP-141/142/143-NRA), TEMPORARY CRANES 120 MSL BEGINNING 2240FT W OF RWY 35R (2018-AWP-2541/2542/2543/2544/2545/2546/2547/2548-NRA), TEMPORARY CRANE 173 MSL 4519FT W OF RWY 35R (2024-AWP-4300-NRA), TEMPORARY CRANE 179 MSL 798FT SW OF SMF AIRPORT (2024-AWP-5929-NRA).
2410311153-2503311153EST
Yes
ALL
COUNTY OF SACRAMENTO
6900 AIRPORT BLVD
SACRAMENTO, CA 95837
Phone: 916-929-5411
REID SMITH
6900 AIRPORT BLVD
SACRAMENTO, CA 95837
Phone: 916-874-0713
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
SMF
--
--
N/A
Yes - Lighted
No
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Major
None
None
Air Freight
Cargo Handling
Charter Service

Runway 17L/35R

8605 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
513,000lbs
1,033,000lbs
  Runway 17L Runway 35R
True Heading 181°1°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 42' 26"N 38° 41' 01"N
Longitude 121° 34' 48"W 121° 34' 50"W
Elevation 27' 22'
Threshold Crossing Height 64 ft. AGL 64 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17R/35L

8598 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,082,000lbs
  Runway 17R Runway 35L
True Heading 181°1°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 42' 26"N 38° 41' 01"N
Longitude 121° 36' 04"W 121° 36' 05"W
Elevation 25' 22'
Threshold Crossing Height 72 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1BIRDS ON AND IN VICINITY OF ARPT.
A110-17TWY RMK #2: THE MAXIMUM ALLOWABLE GROSS AIRCRAFT LOAD FOR TWYS G1, G2, AND THE GENERAL AVIATION PARKING APRON IS: 70,000 LBS FOR SINGLE GEAR AIRCRAFT; 170,000 LBS FOR DUAL GEAR AIRCRAFT; AND 250,000 LBS FOR DUAL TANDEM GEAR AIRCRAFT.
A110-18TWY RMK #2 CONT'D: AN AIRCRAFT CANNOT EXCEED THE AIRPLANE DESIGN GROUP III CRITERIA AND MUST HAVE A WHEEL BASE OF LESS THAN 60 FT.
A110-19MILITARY AIRCRAFT PARKING LIMITED. CONTACT ARPT OPNS IF PARKING IS REQUIRED (916) 806-5309.
A110-21PORTION OF TWY W 500 FT EAST OF TWY A TO 2100 FT EAST OF TWY A IS NOT VISIBLE FROM ATCT.
A110-22TWY Y4 RESTRICTED TO AIRCRAFT WITH A WINGSPAN OF LESS THAN 118 FT (GROUP III).
A110-23TWY B1 CLSD TO CARGO ACFT.
A110-24WEST RAMP SPOTS 56-60 & F1 RSTRD TO TOW IN AND TOW OUT ONLY FROM TXL B2. WHEN PUSHING BACK FOR DEP FROM WEST RAMP SPOTS 56-60 & F1 EACH ACFT IS TO PUSH BACK ON TO TXL B2 AND PULL FWD TO THE "ENGINE START LINE" PRIOR TO STARTING ENGS.
A110-26UNPAVED SFC NORTH OF TWY P AND EAST OF TWY A AND SOUTH OF CARGO 1 RAMP CLSD TO HEL.
A110-27ACFT MUST PUSH BACK TAIL TO THE NORTH FROM TRML GATES A1, A3 AND A5.
A110-28GND VEHICLE SURVEILLANCE SYS IN USE. OPR TRANSPONDERS WITH ALT RPRTG MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL ARPT SFCS.
A110-3NOISE SENSITIVE AREAS W OF ARPT ON SAC RIVER. LCL TURN DISCOURAGED FOR JET ACFT. WHEN CONDUCTING IFR APCH IN VFR CONDITIONS EXECUTE MISSED APCH AT DEP END OF RYS. PLAN VFR PATTERNS TO E. USE MIN POWER SETTINGS.
A110-4ALL ACFT CTC ATC GND CTL PRIOR TO MOVEMENT ON RAMP.
A110-9CROP DUSTERS OPER INVOF ARPT AT OR BELOW 200 FT AGL.
SACRAMENTO INTL (ICAO: KSMF, IATA: SMF) is a public airport located in SACRAMENTO, CA.
