KSOA
SONORA MUNI
PublicPUB

1 miles N of SONORA, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 35' 08"N 100° 38' 55"W
2140' MSL
3140' MSL
08E
None Listed
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
2/20/25-3/20/25
KSOA VFR
9:55 AM CDT
No Clouds
10sm
43°F
32°F
30.30"Hg
330° 9kts
AO2
KSOA 091455Z AUTO 33009KT 10SM 06/M00 A3030 RMK AO2
Add Your Business

KSOA FBOs

Promote Listing
Sonora Municipal Airport
UNICOM: 122.8
Phone: (325) 387-2447
Other: (325) 387-2558
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
325-387-3801
 118.075

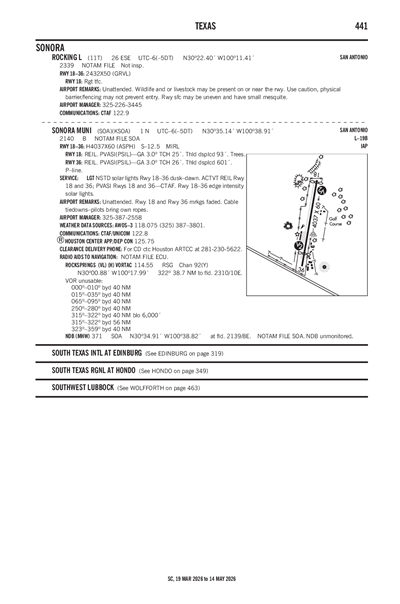

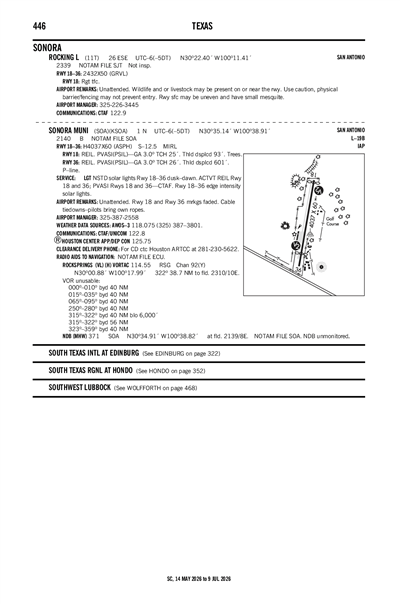

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSOA
Sun, 3/9 6:20 AM CDT
Sun, 3/9 7:00 AM CDT - Mon, 3/10 7:00 AM CDT
MVFR
7:00 AM CDT - 11:00 AM CDT
Broken 2,000'
6sm
350° 7kts
VFR
11:00 AM CDT - 5:00 PM CDT
Scattered 2,500'
6sm
350° 12kts
Gusts 20kts
VFR
5:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
350° 4kts
KSOA 091120Z 0912/1012 35007KT P6SM BKN020
   FM091600 35012G20KT P6SM SCT025
   FM092200 35004KT P6SM SKC
KSOA
Domestic
3/3/251840Z !SOA 03/015 SOA OBST POWER LINE LGT (ASN 2022-ASW-25908-OE) 303516N1003812W (0.6NM E SOA) 2298FT (73FT AGL) U/S 2503031840-2503312359
3/3/251838Z !SOA 03/014 SOA OBST POWER LINE LGT (ASN 2022-ASW-25915-OE) 303535N1003816W (0.7NM NE SOA) 2293FT (87FT AGL) U/S 2503031838-2503312359
3/3/251838Z !SOA 03/013 SOA OBST POWER LINE LGT (ASN 2022-ASW-25914-OE) 303532N1003815W (0.7NM NE SOA) 2331FT (70FT AGL) U/S 2503031838-2503312359
3/3/251838Z !SOA 03/012 SOA OBST POWER LINE LGT (ASN 2022-ASW-25913-OE) 303529N1003815W (0.7NM ENE SOA) 2364FT (71FT AGL) U/S 2503031838-2503312359
3/3/251837Z !SOA 03/011 SOA OBST POWER LINE LGT (ASN 2022-ASW-25912-OE) 303526N1003814W (0.7NM ENE SOA) 2368FT (68FT AGL) U/S 2503031837-2503312359
3/3/251837Z !SOA 03/010 SOA OBST POWER LINE LGT (ASN 2022-ASW-25911-OE) 303523N1003814W (0.6NM ENE SOA) 2366FT (70FT AGL) U/S 2503031837-2503312359
3/3/251837Z !SOA 03/009 SOA OBST POWER LINE LGT (ASN 2022-ASW-25910-OE) 303521N1003813W (0.6NM ENE SOA) 2353FT (72FT AGL) U/S 2503031837-2503312359
3/3/251836Z !SOA 03/008 SOA OBST POWER LINE LGT (ASN 2022-ASW-25909-OE) 303518N1003813W (0.6NM ENE SOA) 2328FT (71FT AGL) U/S 2503031836-2503312359
3/3/251836Z !SOA 03/007 SOA OBST POWER LINE LGT (ASN 2023-ASW-1102-OE) 303534N1003815W (0.7NM NE SOA) 2319FT (95FT AGL) U/S 2503031836-2503312359
3/3/251836Z !SOA 03/006 SOA OBST POWER LINE LGT (ASN 2023-ASW-1101-OE) 303530N1003815W (0.7NM ENE SOA) 2364FT (77FT AGL) U/S 2503031836-2503312359
3/3/251836Z !SOA 03/005 SOA OBST POWER LINE LGT (ASN 2023-ASW-1100-OE) 303528N1003814W (0.7NM ENE SOA) 2375FT (77FT AGL) U/S 2503031836-2503312359
3/3/251835Z !SOA 03/004 SOA OBST POWER LINE LGT (ASN 2023-ASW-1099-OE) 303525N1003814W (0.7NM ENE SOA) 2378FT (77FT AGL) U/S 2503031835-2503312359
3/3/251835Z !SOA 03/003 SOA OBST POWER LINE LGT (ASN 2023-ASW-1097-OE) 303522N1003813W (0.6NM ENE SOA) 2373FT (82FT AGL) U/S 2503031835-2503312359
3/3/251835Z !SOA 03/002 SOA OBST POWER LINE LGT (ASN 2023-ASW-1096-OE) 303519N1003813W (0.6NM ENE SOA) 2352FT (77FT AGL) U/S 2503031835-2503312359
3/3/251834Z !SOA 03/001 SOA OBST TOWER LGT (ASN 2023-ASW-1094-OE) 303517N1003812W (0.6NM ENE SOA) 2317FT (77FT AGL) U/S 2503031834-2503312359
2/20/251411Z !SOA 02/020 SOA SVC AUTOMATED WX BCST SYSTEM UNREL 2502201411-2503282359
1/10/251548Z !SOA 01/018 SOA OBST TOWER LGT (ASR 1047547) 302929.10N1002255.10W (15.0NM ESE SOA) 2699.8FT (399.9FT AGL) U/S 2501101548-2503312359
FDC
9/28/231141Z !FDC 3/6882 SOA ODP SONORA MUNI, SONORA, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
DEPARTURE PROCEDURE TAKE-OFF MINIMUMS RWY 18, 300 - 1 1/4 OR STANDARD WITH A MINIMUM CLIMB GRADIENT OF 553 FT PER NM TO 2400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2309281141-2509281141EST
No
UNATNDD
CITY OF SONORA
201 E MAIN ST
SONORA, TX 76950
Phone: 325-387-2558
PETER R DURAN
201 E MAIN ST
SONORA, TX 76950
Phone: 325-387-2558
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SOA
--
NSTD SOLAR LIGHTS RWY 18/36 DUSK- DAWN. ACTVT REIL RWY 18 & 36; PVASI RWY 18 & 36 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

4037 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 190°10°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition POOR POOR
Latitude 30° 35' 28"N 30° 34' 49"N
Longitude 100° 38' 51"W 100° 38' 59"W
Elevation 2,139' 2,135'
Threshold Crossing Height 25 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3FOR CD CTC HOUSTON ARTCC AT 281-230-5622.
SONORA MUNI (ICAO: KSOA, IATA: SOA) is a public airport located in SONORA, TX.
