KSOW
SHOW LOW RGNL
Public
PUB
2 miles E of SHOW LOW, AZ
View on
Map
Status
Operational
Coordinates
34° 15' 56"N
110° 00' 20"W
Elevation
6416' MSL
Pattern Alt
7216' MSL
Mag Variation
10E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
11/28/24-12/26/24
KSOW
VFR
5:35 AM MST
RAW
Few 10,000'
Viz
10sm
Temp
36°F
Dew
16°F
Pres
30.18"Hg
Wind
160° 4kts
RMK
AO2
KSOW 231235Z AUTO 16004KT 10SM FEW100 02/M09 A3018 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KSOW FBOs
Promote Listing
Show Low Regional Airport
UNICOM: 123.0
Phone: (928) 532-4190
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
12/18
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
4.92
3.56
Full Serve
5.17
3.81
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
123.0
CTAF
123.0
AWOS-3
AWOS-3
928-532-0379
118.075

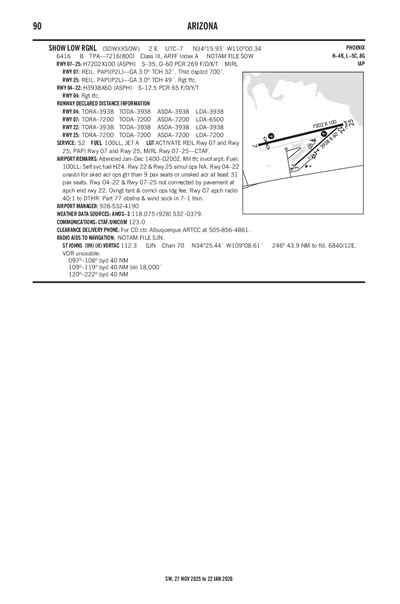

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 25
Terminal Area Forecast
KINW (58nm)
RAW
Reported
Mon, 12/23 4:20 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Few 12,000'
Viz
6sm
Wind
VRB° 5kts
VFR
11:00 AM MST - 6:00 PM MST
Scattered 20,000'
Few 10,000'
Viz
6sm
Wind
330° 6kts
VFR
6:00 PM MST - 2:00 AM MST
Few 25,000'
Viz
6sm
Wind
250° 5kts
VFR
2:00 AM MST - 5:00 AM MST
Sky Clear
Viz
6sm
Wind
150° 3kts
KINW 231120Z 2312/2412 VRB05KT P6SM FEW120
FM231800 33006KT P6SM FEW100 SCT200
FM240100 25005KT P6SM FEW250
FM240900 15003KT P6SM SKC
KSOW
Domestic
12/6/24
1905Z
!SOW 12/004 SOW RWY 07 RWY END ID LGT U/S 2412061905-2503312100
12/6/24
1904Z
!SOW 12/003 SOW RWY 25 RWY END ID LGT U/S 2412061904-2503312100
12/6/24
1903Z
!SOW 12/002 SOW RWY 25 PAPI HIGH INTST U/S 2412061903-2503312100
ATC Tower
No
Attendance
JAN-DEC 0700-1900
Owner
CITY OF SHOWLOW
180 N. 9TH PLACE
SHOW LOW, AZ 85901
Phone: (928) 532-4000
Manager
JACOB ALLEN
3150 AIRPORT LOOP, #100
SHOW LOW, AZ 85901
Phone: 928-532-4190
FSS
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
NOTAM
SOW
Light Schedule
--
Lights
ACTVT REIL RWY 07 & 25; PAPI RWY 07 & 25; MIRL RWY 07/25 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Minor
Pwrplant Repair
Minor
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Charter Service
Pilot Instruction
Aircraft Rental
Runway 04/22
Dimensions
3938 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
Pavement Class
7 /F/D/Y/T
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 04
Runway 22
True Heading
48°
228°
Traffic Pattern
Right
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
34° 15' 38"N
34° 16' 04"N
Longitude
110° 00' 27"W
109° 59' 52"W
Elevation
6,413'
6,401'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
Runway 07/25
Dimensions
7202 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
7 /F/D/X/T
Single Wheel
35,000lbs
Double Wheel
60,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
76°
256°
Traffic Pattern
Left
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
34° 15' 50"N
34° 16' 07"N
Longitude
110° 01' 08"W
109° 59' 45"W
Elevation
6,399'
6,400'
Threshold Crossing Height
32 ft. AGL
49 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
Yes
A110-1
PART 77 OBSTNS & WIND SOCK IN 7-1 TRSN.
A110-3
MIL TFC INVOF ARPT.
A110-5
OVNGT TSNT & COML OPS LNDG FEE.
A110-6
RWY 04/22 & 07/25 NOT CONNECTED BY PAVEMENT AT APCH END RWY 22.
A110-7
RWY 22 & 25 SIMUL OPS NA.
A110-9
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
SHOW LOW RGNL (ICAO: KSOW, IATA: SOW) is a public airport located in SHOW LOW, AZ.
