KSPK
SPANISH FORK MUNI/WOODHOUSE FLD
Public
PUB
2 miles N of SPANISH FORK, UT
View on
Map
Status
Operational
Coordinates
40° 08' 42"N
111° 40' 04"W
Elevation
4530' MSL
Pattern Alt
5530' MSL
Mag Variation
11E
Fuel
JET A, 100LL
FSS
CEDAR CITY (CDC)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
11/28/24-12/26/24
KSPK
VFR
4:55 AM MST
RAW
Mist
Clear
Viz
6sm
Temp
32°F
Dew
30°F
Pres
30.22"Hg
Wind
Calm
RMK
AO2
KSPK 231155Z AUTO 00000KT 6SM BR CLR M00/M01 A3022 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KSPK FBOs
Promote Listing
Utah Aviation Services
Phone: (801) 798-9888
Other: (801) 380-8238
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
12/4
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.30
Full Serve
5.25
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
AWOS-3PT
AWOS-3PT
801-804-5801
119.275

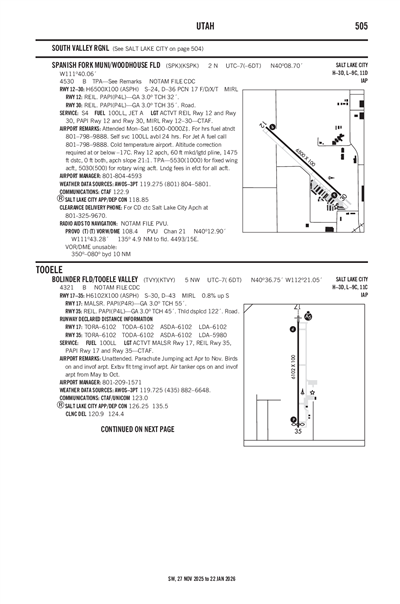

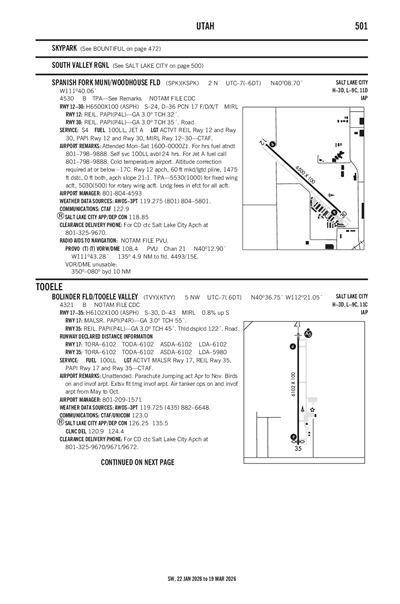

FAA A/FD Pages
FAA A/FD Page

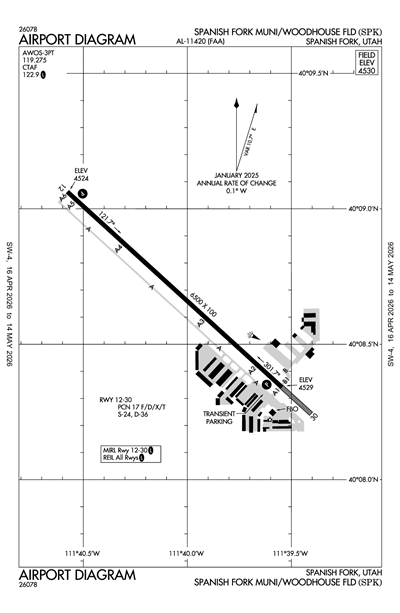

Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
SPANISH FORK ONE (OBSTACLE)
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) Y RWY 12
RNAV (GPS) Z RWY 12
RNAV (GPS)-A
Terminal Area Forecast
KPVU (5nm)
RAW
Reported
Mon, 12/23 4:21 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 7:00 AM MST
Mist
Broken 10,000'
Broken 6,000'
Viz
6sm
Wind
VRB° 5kts
VFR
7:00 AM MST - 1:00 PM MST
Showers in vicinity
Overcast 8,000'
Broken 4,000'
Viz
6sm
Wind
VRB° 5kts
VFR
1:00 PM MST - 7:00 PM MST
Broken 6,000'
Scattered 4,000'
Viz
6sm
Wind
300° 6kts
VFR
7:00 PM MST - 5:00 AM MST
Broken 20,000'
Few 8,000'
Viz
6sm
Wind
150° 6kts
KPVU 231121Z 2312/2412 VRB05KT 6SM BR BKN060 BKN100
FM231400 VRB05KT P6SM VCSH BKN040 OVC080
FM232000 30006KT P6SM SCT040 BKN060
FM240200 15006KT P6SM FEW080 BKN200
KSPK
Domestic
11/3/24
2359Z
!CDC 10/263 SPK AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 400907N1113706W (2.5NM E SPK) SFC-400FT AGL DLY 2359-0500 2411032359-2501270500
FDC
11/26/24
2025Z
!FDC 4/9004 SPK ODP SPANISH FORK MUNI/WOODHOUSE FLD, SPANISH FORK, UT.
SPANISH FORK ONE DEPARTURE ...
TAKE-OFF MINIMUMS: RWY 12, 300-1 WITH A MINIMUM CLIMB OF 455FT PER NM TO 7100. ADD TAKEOFF OBSTACLE NOTES: RWY 12, MULTIPLE CRANES BEGINNING 2425FT FROM DER, 868FT LEFT OF CENTERLINE, UP TO 165FT AGL/ 4743FT MSL (2022-ANM-7339-OE, 2022-ANM-7340-OE, 2022-ANM-7341-OE, 2022-ANM-5009-OE, 2022-ANM-5010-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2411262025-2505152025EST
ATC Tower
No
Attendance
MON-SAT 0900-1700
FOR AFTR HRS ATTENDANT 801-798-9888.
Owner
SPANISH FORK
2050 NORTH 300 WEST
SPANISH FORK, UT 84660
Phone: 801-798-5000
Manager
CHRISTIAN DAVIS
2050 NORTH 300 WEST
SPANISH FORK, UT 84660
Phone: 801-804-4593
FSS
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
NOTAM
CDC
Light Schedule
--
Lights
ACTVT REIL RWY 12 & 30; PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Avionics
Pilot Instruction
Aircraft Rental
Runway 12/30
Dimensions
6500 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
17 /F/D/X/T
Single Wheel
24,000lbs
Double Wheel
36,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 12
Runway 30
True Heading
132°
312°
Traffic Pattern
Markings
NPI
NPI
Markings Condition
POOR
POOR
Latitude
40° 09' 04"N
40° 08' 20"N
Longitude
111° 40' 35"W
111° 39' 33"W
Elevation
4,524'
4,529'
Threshold Crossing Height
32 ft. AGL
35 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
DEER & BIRDS ON & INVOF ARPT.
A110-2
NOISE ABATEMENT PROCEDURES IN EFFECT. CALL ARPT MGR 801-798-9888.
A110-3
DEC-FEB EXPECT UP TO 24 HRS AFTER STORM BEFORE RY PLOWING. RESIDUAL SNOW & ICE ON RY AFTER PLOWING. FOR STATUS CALL 801-798-9888/9.
A110-4
FOR CD CTC SALT LAKE CITY APCH AT 801-325-9670.
A110-5
RWY 12/30 RWY MARKINGS FADED.
A110-6
COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-7
RWY 12 APCH, 60 FT MKD/LGTD PLINE, 1475 FT DSTC, 0 FT BOTH, APCH SLOPE 21:1.
SPANISH FORK MUNI/WOODHOUSE FLD (ICAO: KSPK, IATA: SPK) is a public airport located in SPANISH FORK, UT.
