KSUN

FRIEDMAN MEML

PublicPUB

1 miles SE of HAILEY, ID

View on Map

Status

Operational

Coordinates

43° 30' 14"N 114° 17' 44"W

Elevation

5320' MSL

Pattern Alt

6320' MSL

Mag Variation

13E

Fuel

JET A-1+, 100LL

FSS

BOISE (BOI)

Sectional

SALT LAKE CITY

ARTCC

SALT LAKE CITY (ZLC)

Data Effective

11/28/24-12/26/24

KSUN VFR

5:35 AM MST RAW

Overcast 7,500'
Broken 4,600'
Scattered 2,200'

Viz

10sm

Temp

32°F

Dew

32°F

Pres

30.16"Hg

Wind

310° 5kts

RMK

AO2

KSUN 231235Z AUTO 31005KT 10SM SCT022 BKN046 OVC075 00/00 A3016 RMK AO2

Add Your Business

KSUN FBOs

Promote Listing

Atlantic Aviation

UNICOM: 122.95

Phone: (208) 788-9511

0 Reviews (Read | Sign In To Write)

Independent

As of 12/16	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.04
Full Serve	8.21	9.19

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.95 CTAF 125.6

ATIS

208-788-2108

128.225

AWOS-3

208-788-9213

128.225

Ground

GND/P

121.7

Tower

LCL/P

125.6

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

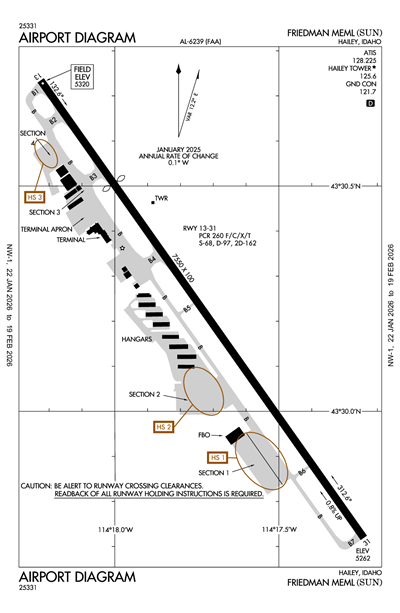

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

AURELIA THREE (RNAV)

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSUN

RAW

Reported

Mon, 12/23 4:39 AM MST

Valid

Mon, 12/23 5:00 AM MST - Tue, 12/24 11:00 AM MST

MVFR

5:00 AM MST - 9:00 AM MST

Light Snow

Overcast 3,000'
Broken 2,000'

Viz

6sm

Wind

VRB° 5kts

MVFR

Temporary 5:00 AM MST - 9:00 AM MST

Light Snow and Mist

Overcast 2,500'
Broken 1,500'
Scattered 800'

Viz

4sm

Wind

Calm

VFR

9:00 AM MST - 2:00 PM MST

Showers in vicinity

Overcast 5,000'
Broken 3,500'
Scattered 2,500'

Viz

6sm

Wind

320° 7kts

VFR

2:00 PM MST - 8:00 PM MST

Overcast 7,000'
Broken 5,000'
Scattered 3,500'

Viz

6sm

Wind

200° 6kts

VFR

8:00 PM MST - 11:00 AM MST

Scattered 20,000'
Scattered 7,000'

Viz

6sm

Wind

300° 7kts

KSUN 231139Z 2312/2418 VRB05KT P6SM -SN BKN020 OVC030
   TEMPO 2312/2316 4SM -SN BR SCT008 BKN015 OVC025
   FM231600 32007KT P6SM VCSH SCT025 BKN035 OVC050
   FM232100 20006KT P6SM SCT035 BKN050 OVC070
   FM240300 30007KT P6SM SCT070 SCT200 AMD LTD TO CLD VIS AND WIND TIL 231400

KSUN

Domestic
12/23/241500Z	!SUN 12/182 SUN OBST CRANE (ASN UNKNOWN) 433245N1141940W (3.0NM N SUN) UNKNOWN (110FT AGL) FLAGGED 2412231500-2412231900
12/23/241256Z	!SUN 12/183 SUN RWY 31 FICON 5/5/5 100 PCT WET DEICED SOLID OBS AT 2412231256. 2412231256-2412241256
12/19/242053Z	!SUN 12/162 SUN APRON SECTION 2 RAMP FICON 10FT SN PILES OBS AT 2412192053. 2412192053-2504302000
FDC
3/20/241624Z	!FDC 4/9179 SUN SID FRIEDMAN MEML, HAILEY, ID. AURELIA THREE DEPARTURE (RNAV)... PRESN TRANSITION,REAPS TRANSITION: DISREGARD TOP ALTITUDE 10000. TOP ALTITUDE WILL BE ASSIGNED BY ATC. 2403201624-2603201624EST

ATC Tower

Yes

Attendance

0700-2300

Owner

CITY OF HAILEY
BLANE CO - BOX 400
HAILEY, ID 83333
Phone: (208) 788-4221

Manager

CHRIS POMEROY
1616 AIRPORT CIR
HAILEY, ID 83333-5534
Phone: 208-788-4956

FSS

BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF

NOTAM

SUN

Light Schedule

Lights

WHEN ATCT CLSD, ACTVT HIRL RWY 13/31 - CTAF. PAPI RWY 31 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High Pressure

Bulk Oxygen

High Pressure

Other Services

Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

Dimensions

7550 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

23 /F/A/X/T

Single Wheel

65,000lbs

Double Wheel

95,000lbs

Double Tandem

150,000lbs

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	145°	325°
Traffic Pattern	Left	Left
Markings	NPI	PIR
Markings Condition	GOOD	FAIR
Latitude	43° 30' 44"N	43° 29' 43"N
Longitude	114° 18' 14"W	114° 17' 14"W
Elevation	5,320'	5,262'
Threshold Crossing Height	--	55 ft. AGL
Visual Glide Path Angle	--	3.5°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	WHEN ATCT CLSD - LAND RY 31 TAKEOFF RY 13; DUE TO OPPOSITE DIRECTION TRAFFIC USE LANDING LIGHT IN TRAFFIC PATTERN.
A110-11	DUE TO OPPOSITE TFC: APCH RY 31 ALONG E SIDE OF VALLEY: DEP RY 13 ALONG W SIDE OF VALLEY: SHOW LNGD LGT.
A110-12	NO LOCKED BRAKE TURNS.
A110-18	ARPT SFC CONDS NOT MNTD AND ARFF NOT AVBL BTN THE HRS OF 2300 AND 0700.
A110-19	LTD PARKG AVBL FOR AIR CARRIER ACFT.
A110-2	NOT RCMDD FOR NIGHT USE OR IN MARGINAL WEATHER BY UNFAMILIAR PILOTS DUE TO MOUNTAINOUS TERRAIN.
A110-20	RWY 13/31 LTD TO ACFT NOT EXCEEDING 95000 LBS CERTD MAX TKOF WT: DUAL WHEEL. ACFT WITH PUBLD MAX TKOF WT EXCEEDING 95000 LBS MUST SEEK PPR AT LEAST 48 HRS IN ADVANCE BY SMTG TO AMGR A MANUFACTURER'S ACFT SVC CHG THAT INSTLS A PLACARD VFYG ACFT IS CERTD FOR SUN WITH A MAX TKOF WT OF 95000 LBS. PPR FOR ALL ACFT WITH PUBLD WINGSPAN EXCEEDING 100 FT (30.48M).
A110-21	ATCT 275 FT EAST OF RY 13/31 CNTRLN.
A110-22	CTC AMGR 208-788-4956 OR 208-720-5186 FOR NOISE ABATEMENT PROCEDURES.
A110-23	APU OPERATION LIMITED TO 30 MINUTE MAXIMUM RUN TIME.
A110-24	TWYS B5 AND B6 RSTD TO ACFT WITH WINGSPANS OF 79 FT OR LESS (ACFT DESIGN GROUP II) ONLY.
A110-25	TSNT PRKG FOR GA ACFT WITH LESS THAN 40 FT WINGSPAN LCTD ON SECTION 2 APN IN BLUE TIE DOWN SPOTS. ALL TSNT PRKG CTC 208-788-9511.
A110-26	COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -14C.
A110-27	ALL TRANSIENT HELICOPTER OPS CTL - 208-720-5186 ARPT OPS; 208-788-9511 FBO FOR PARKING INSTRUCTIONS. NO DEDICATED HELICOPTER PARKING PADS EXIST.
A110-28	FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-29	ALL ARRG ACFT FM 2300 TO 0700L REQD TO ANNC CTAF 125.6 WHEN THEY ARE 20, 15, 10 AND 5 MIS OUT AND SHRT FINAL. EQPT MAY BE ON RWY.
A110-4	BIRD ACTIVITY SE END RY 31.

FRIEDMAN MEML (ICAO: KSUN, IATA: SUN) is a public airport located in HAILEY, ID.
