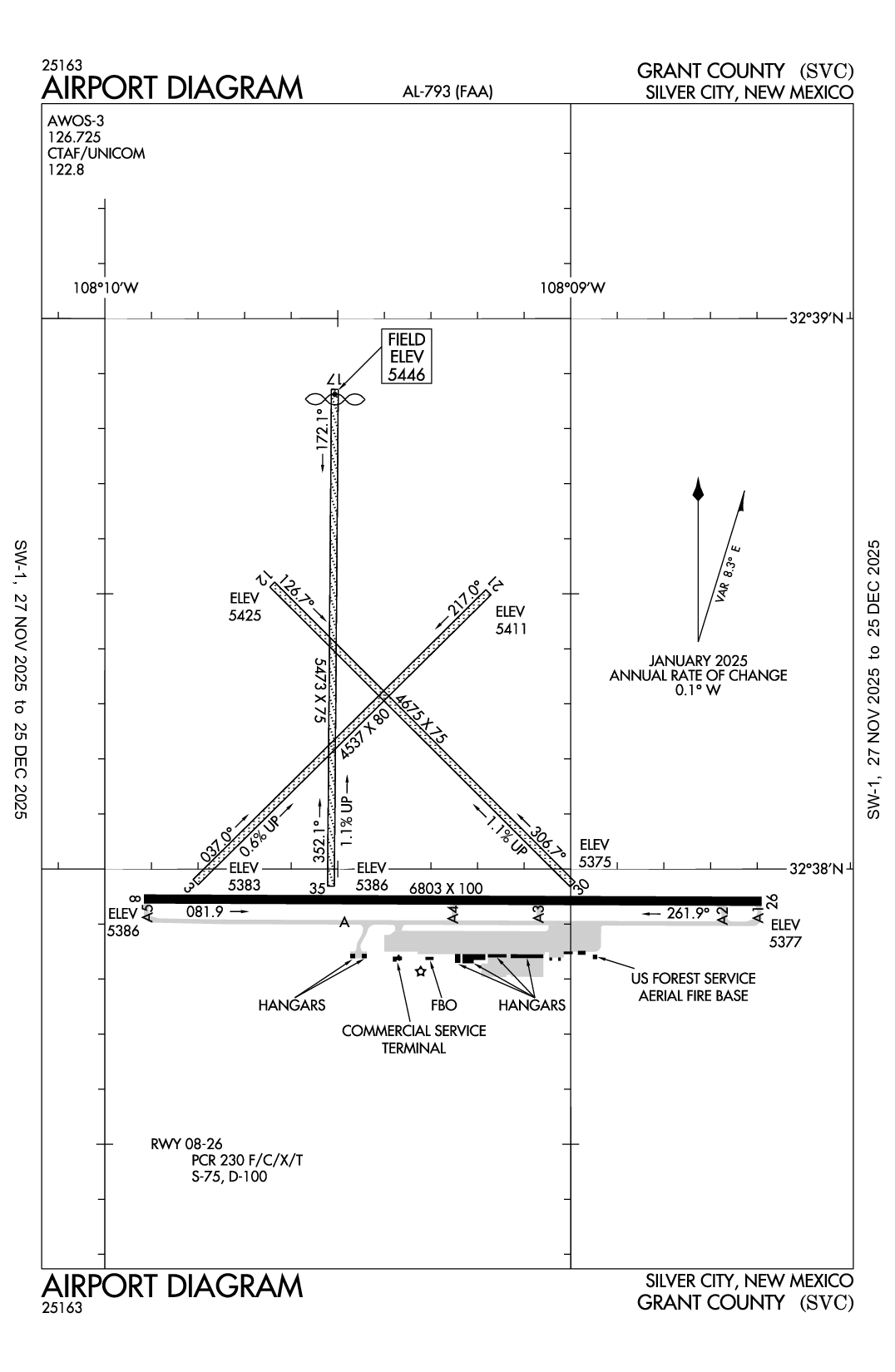

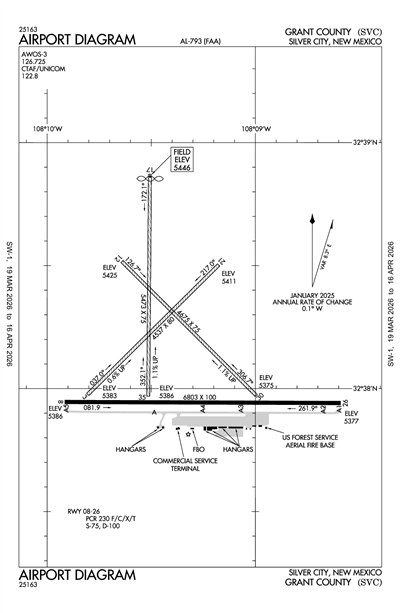

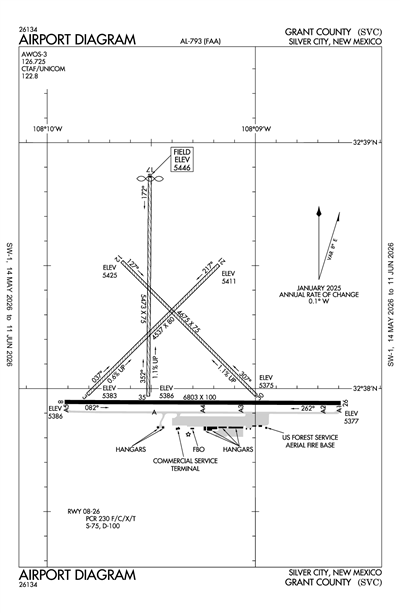

GRANT COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSVC
GRANT COUNTY
PublicPUB

10 miles SE of SILVER CITY, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 38' 12"N 108° 09' 23"W
5446' MSL
6446' MSL
08E
JET A-1, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
12/26/24-1/23/25
KSVC VFR
9:35 AM MST
Clear
10sm
38°F
-5°F
30.26"Hg
Calm
AO2 T00351205
KSVC 221635Z AUTO 00000KT 10SM CLR 04/M20 A3026 RMK AO2 T00351205
Add Your Business

KSVC FBOs

Promote Listing
Grant County Airport
UNICOM: 122.8
Phone: (575) 388-4554
Other: (575) 313-9784
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.25
Full Serve 5.90
Fuel Notes
Prices include tax
Volume Discounts
World Fuel Contract Fuel available
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
575-388-5947
 126.725

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDMN (32nm)
Wed, 1/22 4:20 AM MST
Wed, 1/22 5:00 AM MST - Thu, 1/23 5:00 AM MST
VFR
5:00 AM MST - 5:00 AM MST
Few 25,000'
6sm
VRB° 5kts
KDMN 221120Z 2212/2312 VRB05KT P6SM FEW250
KSVC
Domestic
1/27/251900Z !SVC 01/023 SVC COM REMOTE COM OUTLET 122.3 U/S 2501271900-2501272230
1/15/252007Z !SVC 01/019 SVC COM REMOTE COM OUTLET 122.1 U/S 2501152007-2501292300EST
1/14/250702Z !SVC 01/015 SVC OBST TOWER LGT (ASR 1248137) 323133.90N1080039.50W (10.0NM SE SVC) 5215.9FT (310.0FT AGL) U/S 2501140702-2501290602
12/26/241649Z !SVC 12/011 SVC AD AP WINDCONE FOR RWY 08 LGT U/S 2412261649-2501312350EST
FDC
1/22/251500Z !FDC 5/5227 SVC ODP GRANT COUNTY, SILVER CITY, NM.
SILVER CITY TWO DEPARTURE ...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DMN VORTAC OUT OF SERVICE. 2501221500-2501291517EST
1/22/251500Z !FDC 5/5224 SVC IAP GRANT COUNTY, SILVER CITY, NM.
LOC RWY 26, AMDT 6...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, DMN VORTAC OUT OF SERVICE.
2501221500-2501291517EST
8/17/211722Z !FDC 1/0187 SVC ODP GRANT COUNTY, SILVER CITY, NM.
SILVER CITY TWO DEPARTURE ...
TAKEOFF MINIMUMS: RWY 8, 300/1 3/4 OR STANDARD WITH MINIMUM CLIMB OF 223FT PER NM TO 5700. TAKEOFF OBSTACLE NOTES: RWY 8 TEMPORARY CRANE 1.45 NM FROM DER, 45FT LEFT OF CENTERLINE, 95FT AGL/5621FT MSL (2013-ASW-4902-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2108171722-2508311722EST
No
0600-1700
GRANT COUNTY
P.O. BOX 6, 188 AIRPORT RD.
HURLEY, NM 88043
Phone: 575-313-9784
REBEKAH WENGER
PO BOX 6 188 AIRPORT ROAD
HURLEY, NM 88043
Phone: 575-313-9784
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
SVC
--
ACTVT MALS RWY 26; REIL RWY 08; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Freight
Charter Service

Runway 03/21

4537 ft. x 80 ft.
DIRT
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 37' 59"N 32° 38' 30"N
Longitude 108° 09' 48"W 108° 09' 11"W
Elevation 5,383' 5,411'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

6803 ft. x 100 ft.
ASPH
Good
GRVD
MED

75,000lbs
100,000lbs
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 37' 57"N 32° 37' 56"N
Longitude 108° 09' 55"W 108° 08' 35"W
Elevation 5,386' 5,376'
Threshold Crossing Height 44 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 12/30

4675 ft. x 75 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 38' 31"N 32° 37' 58"N
Longitude 108° 09' 38"W 108° 08' 60"W
Elevation 5,425' 5,375'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5473 ft. x 75 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 38' 52"N 32° 37' 58"N
Longitude 108° 09' 30"W 108° 09' 31"W
Elevation 5,446' 5,386'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-15621 FT CRANE NE OF ARPT 8800 FT FM RWY 26 ON CNTRLN.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A110-3TWY A2, A3 & A4 UNUSBL COCKPIT TO MAIN GEAR LEN OVR 40 FT.
GRANT COUNTY (ICAO: KSVC, IATA: SVC) is a public airport located in SILVER CITY, NM.
