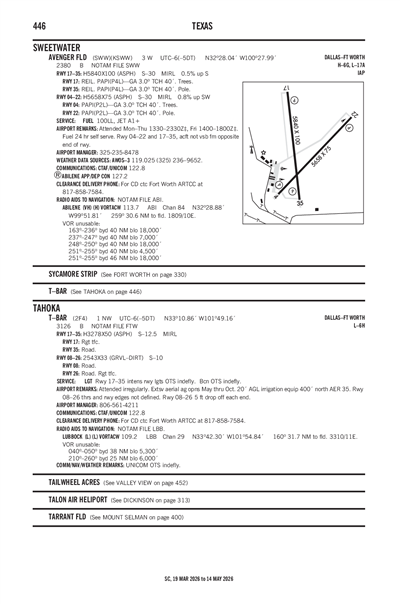

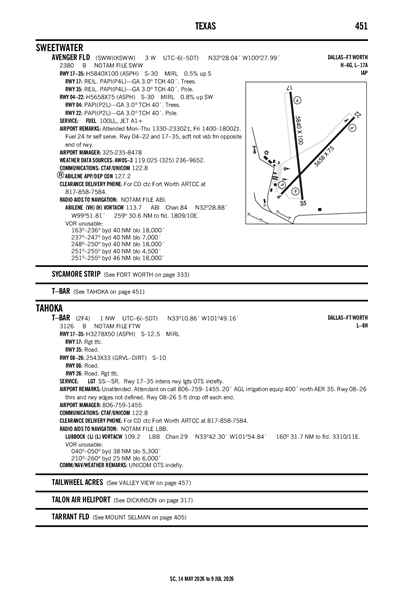

AVENGER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSWW
AVENGER FLD
PublicPUB

3 miles W of SWEETWATER, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 28' 02"N 100° 27' 60"W
2380' MSL
3380' MSL
08E
JET A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
12/26/24-1/23/25
KSWW VFR
10:35 AM CST
No Clouds
10sm
40°F
6°F
30.25"Hg
270° 9kts
AO2 T00431143
KSWW 221635Z AUTO 27009KT 10SM 04/M14 A3025 RMK AO2 T00431143
Add Your Business

KSWW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

KSWW Other Businesses

Promote Listing
NOVAN Aircraft Maintenance
UNICOM: 122.8
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
325-236-9652
 119.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDYS (32nm)
Wed, 1/22 6:00 AM CST
Wed, 1/22 6:00 AM CST - Thu, 1/23 12:00 PM CST
VFR
6:00 AM CST - 12:00 PM CST
Sky Clear
6sm
30.21"Hg
200° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: 4,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 18,000'
VFR
Becoming 12:00 PM CST - 5:00 PM CST
Sky Clear
6sm
30.18"Hg
360° 12kts
Gusts 18kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 18,000'
VFR
Becoming 5:00 PM CST - 8:00 AM CST
Sky Clear
6sm
30.21"Hg
010° 12kts
Moderate, Clear Air, Frequent: 9,000 - 9,000'
Moderate, Clear Air, Frequent: 9,000 - 18,000'
VFR
Becoming 8:00 AM CST - 12:00 PM CST
Sky Clear
6sm
30.53"Hg
360° 12kts
Gusts 18kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 18,000'
TAF KDYS 221200Z 2212/2318 20015G25KT 9999 SKC 520009 520909 QNH3021INS
   BECMG 2218/2219 36012G18KT 9999 SKC 520009 520909 QNH3019INS
   BECMG 2223/2300 01012KT 9999 SKC 530009 530909 QNH3021INS
   BECMG 2314/2315 36012G18KT 9999 SKC 520009 520909 QNH3052INS TX12/2221Z TNM05/2311Z
KSWW
Domestic
1/10/251441Z !SWW 01/007 SWW OBST TOWER LGT (ASR 1307289) 320450.59N1004102.54W (25.69NM SSW SWW) 2359FT (304FT AGL) U/S 2501101441-2502242359
12/6/241630Z !SWW 12/002 SWW SVC AUTOMATED WX BCST SYSTEM T/DP U/S 2412061630-2504162359
7/24/241721Z !SWW 07/007 SWW OBST WIND TURBINE (ASN UNKNOWN) 322438N1001234W (13.5NM ESE SWW) 2511FT (328FT AGL) NOT LGTD 2407241721-2501312359
7/24/241719Z !SWW 07/006 SWW OBST WIND TURBINE (ASN UNKNOWN) 322515N1001308W (13NM ESE SWW) 2521FT (328FT AGL) NOT LGTD 2407241719-2501312359
7/24/241717Z !SWW 07/005 SWW OBST WIND TURBINE (ASN UNKNOWN) 322515N1001326W (13.5NM ESE SWW) 2527FT (328FT AGL) NOT LGTD 2407241717-2501312359
7/24/241716Z !SWW 07/004 SWW OBST WIND TURBINE (ASN UNKNOWN) 322603N1001347W (12.5NM E SWW) 2510FT (328FT AGL) NOT LGTD 2407241716-2501312359
7/24/241713Z !SWW 07/003 SWW OBST WIND TURBINE (ASN UNKNOWN) 322643N1001511W (11NM ESE SWW) 2498FT (328FT AGL) NOT LGTD 2407241713-2501312359
5/28/241709Z !SWW 05/009 SWW SVC AUTOMATED WX BCST SYSTEM CEILING UNREL 2405281709-2506272359EST
FDC
1/2/242137Z !FDC 4/0327 SWW IAP AVENGER FLD, SWEETWATER, TX.
RNAV (GPS) RWY 35, ORIG-B...
LPV DA 2619/HAT 250 ALL CATS. LNAV/VNAV DA 2727/HAT 358 ALL CATS. LNAV MDA 2820/HAT 451 ALL CATS. TDZE 2369.
CHANGE REMOTE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SNYDER ALTIMETER SETTING AND INCREASE LPV DA TO 2691 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE LNAV/VNAV DA TO 2799 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT C/D 1/4 SM.
2401022137-2601022137EST
No
M-F 0800-1700
CITY OF SWEETWATER
PO BOX 450
SWEETWATER, TX 79556
Phone: 325-236-6313
LYNN BARRETT
P.O. BOX 450
SWEETWATER, TX 79556
Phone: 325-235-8478
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
SWW
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

5658 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 43°223°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 27' 40"N 32° 28' 20"N
Longitude 100° 28' 15"W 100° 27' 30"W
Elevation 2,380' 2,337'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5840 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 174°354°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 28' 34"N 32° 27' 36"N
Longitude 100° 28' 10"W 100° 28' 03"W
Elevation 2,341' 2,369'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2RWY 04/22 & 17/35, ACFT NOT VSB FM OPPOSITE END OF RWY.
A110-3(CONTACT PHONE NR) LENHOBBS122@GMAIL.COM
AVENGER FLD (ICAO: KSWW, IATA: SWW) is a public airport located in SWEETWATER, TX.
