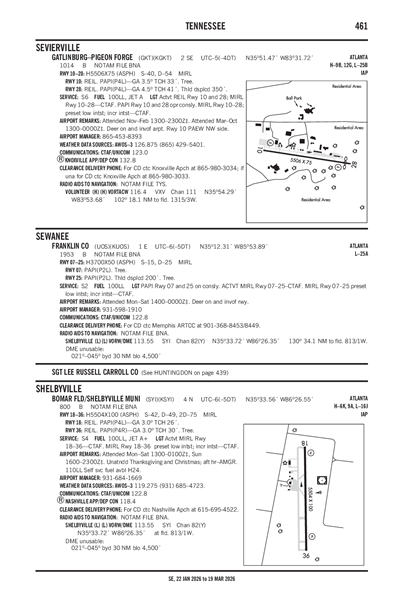

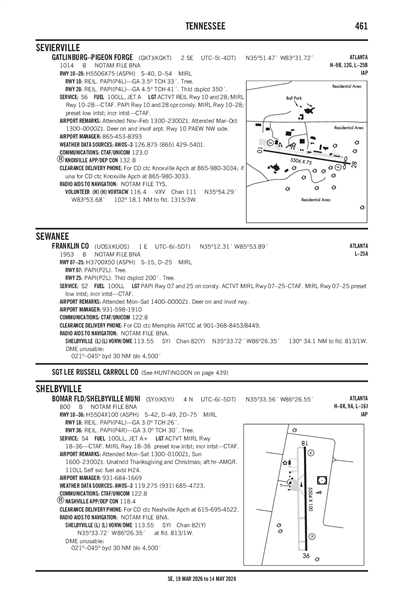

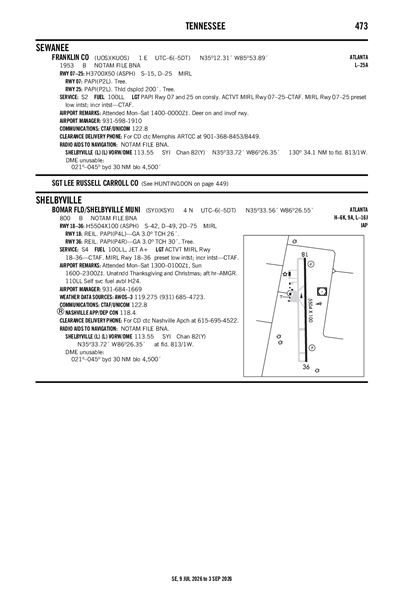

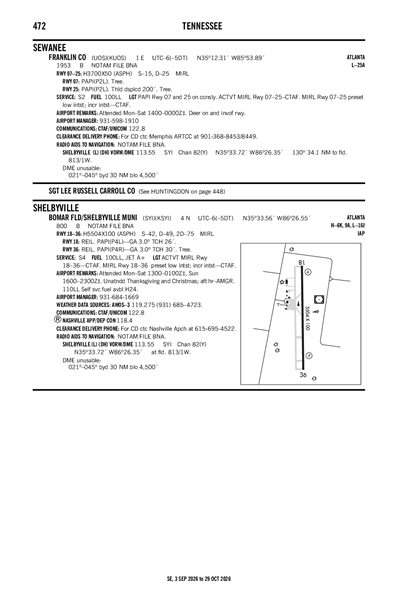

BOMAR FLD/SHELBYVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KSYI
BOMAR FLD/SHELBYVILLE MUNI
PublicPUB

4 miles N of SHELBYVILLE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 33' 34"N 86° 26' 33"W
800' MSL
1800' MSL
01W
JET A (FSII), 100LL
NASHVILLE (BNA)
ATLANTA
MEMPHIS (ZME)
12/26/24-1/23/25
KSYI VFR
10:10 AM CST
Clear
10sm
19°F
7°F
30.46"Hg
160° 6kts
A01
KSYI 221610Z AUTO 16006KT 10SM CLR M07/M14 A3046 RMK A01
Add Your Business

KSYI FBOs

Promote Listing
Shelbyville Municipal Airport
UNICOM: 122.8
Phone: (931) 684-1669
Fax: (931) 684-4457
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/29/2024
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.78 4.60
Full Serve 4.98 4.80
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
931-685-4723
 119.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMQY (27nm)
Wed, 1/22 5:20 AM CST
Wed, 1/22 6:00 AM CST - Thu, 1/23 6:00 AM CST
VFR
6:00 AM CST - 10:00 AM CST
Sky Clear
6sm
040° 4kts
VFR
10:00 AM CST - 6:00 AM CST
Scattered 25,000'
6sm
180° 6kts
KMQY 221120Z 2212/2312 04004KT P6SM SKC
   FM221600 18006KT P6SM SCT250
KSYI
Domestic
1/22/250127Z !BNA 01/605 SYI OBST TOWER LGT (ASR 1043484) 353936.00N0861814.00W (9.1NM NE SYI) 1617.8FT (317.9FT AGL) U/S 2501220127-2502060127
1/20/251447Z !BNA 01/580 SYI OBST TOWER LGT (ASR 1041756) 353507.60N0861400.20W (10.4NM E SYI) 1323.2FT (309.1FT AGL) U/S 2501201447-2505201447
1/20/251215Z !BNA 01/573 SYI OBST TOWER LGT (ASR 1037743) 353746.60N0861456.50W (10.4NM ENE SYI) 1341.9FT (298.9FT AGL) U/S 2501201215-2504200500
1/20/250635Z !BNA 01/568 SYI OBST TOWER LGT (ASR 1059057) 353515.10N0861405.40W (10.3NM E SYI) 1417.0FT (290.0FT AGL) U/S 2501200635-2502040535
FDC
1/6/251855Z !FDC 5/0741 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
VOR/DME RWY 18, AMDT 5A...
NOTE: VDP NA WHEN USING TULLAHOMA ALTIMETER SETTING.
2501061855-2701071855EST
10/8/241324Z !FDC 4/6342 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
VOR RWY 18, AMDT 5D...
APT ELEV: 800. TDZE: 799. S-18 HAT 701 ALL CATS. CIRCLING CAT A/B HAA 700, CAT C/D HAA 980.
2410081324-2610081324EST
10/8/241324Z !FDC 4/6341 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
VOR/DME RWY 18, AMDT 5A...
APT ELEV: 800. TDZE: 799. S-18 HAT 421 ALL CATS. CIRCLING CAT A HAA 460, CAT B HAA 620, CAT C/D HAA 980.
2410081324-2610081324EST
10/8/241324Z !FDC 4/6339 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
VOR RWY 36, AMDT 17...
APT ELEV: 800. TDZE: 800. S-36 HAT 420 ALL CATS. CIRCLING CAT A HAA 460, CAT B HAA 620, CAT C/D HAA 980.
2410081324-2610081324EST
10/8/241324Z !FDC 4/6338 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
RNAV (GPS) RWY 18, ORIG-A...
APT ELEV: 800. TDZE 799. LPV DA 1049 ALL CATS, LNAV/VNAV DA 1315 ALL CATS. LNAV HAT 481 ALL CATS. CIRCLING CAT A HAA 480, CAT B HAA 620, CAT C/D HAA 980.
2410081324-2610081324EST
10/8/241324Z !FDC 4/6337 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
RNAV (GPS) Y RWY 36, ORIG-B...
APT ELEV: 800. TDZE: 800. LNAV HAT 460 ALL CATS. CIRCLING CAT A HAA 460, CAT B HAA 620, CAT C/D HAA 980.
2410081324-2610081324EST
10/8/241324Z !FDC 4/6336 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
RNAV (GPS) Z RWY 36, ORIG-A...
APT ELEV: 800. TDZE: 800. LPV DA 1050 ALL CATS. LNAV HAT 780 ALL CATS. CIRCLING CAT A/B HAA 780, CAT C/D HAA 980.
2410081324-2610081324EST
3/23/231326Z !FDC 3/1502 SYI IAP BOMAR FLD/SHELBYVILLE MUNI, SHELBYVILLE, TN.
VOR RWY 18, AMDT 5D...
S-18 CATS C/D MINIMUMS NA.
STRAIGHT-IN RWY 18 NA AT NIGHT. RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2303231326-2503231326EST
No
MON - SAT 0700 - 1900
SUN 0800 - 1700
UNATNDD THANKSGIVING & CHRISTMAS; AFT HR - AMGR.
CITY OF SHELBYVILLE
201 NORTH SPRING STREET, CITY HALL PO BOX185
SHELBYVILLE, TN 37160
Phone: 931-684-2691
PAUL PERRY
2828 HIGHWAY 231N
SHELBYVILLE, TN 37160
Phone: 931-684-1669
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT MIRL RWY 18/36 - CTAF. MIRL RWY 18/36 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

5504 ft. x 100 ft.
ASPH
Good
NONE
MED

42,000lbs
49,000lbs
75,000lbs
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 34' 01"N 35° 33' 07"N
Longitude 86° 26' 33"W 86° 26' 33"W
Elevation 799' 793'
Threshold Crossing Height 26 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
No remarks are listed for this airport.
BOMAR FLD/SHELBYVILLE MUNI (ICAO: KSYI, IATA: SYI) is a public airport located in SHELBYVILLE, TN.
