KTAD
PERRY STOKES
PublicPUB

10 miles NE of TRINIDAD, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 15' 33"N 104° 20' 27"W
5762' MSL
6762' MSL
10E
JET A (FSII), 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
11/28/24-12/26/24
KTAD VFR
4:54 AM MST
Clear
10sm
36°F
19°F
30.05"Hg
250° 11kts
AO2 SLP149 T00221072 10033 21006 51005 $
KTAD 231154Z AUTO 25011KT 10SM CLR 02/M07 A3005 RMK AO2 SLP149 T00221072 10033 21006 51005 $
Add Your Business

KTAD FBOs

Promote Listing
Pinnacle Jet Center
UNICOM: 122.8
Phone: (719) 680-7831
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.10
Full Serve 4.75
Fuel Notes
Prices include tax
Fuel Hours
Self Serve AVGAS and Callouts available 24 Hours.
Volume Discounts
During normal business hours, facility fees are in effect. Facility fees are waived with a qualifying fuel purchase based on aircraft size. Contact Pinnacle Jet Centers at (719) 680-7831 for more information.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
719-845-1156
 119.025

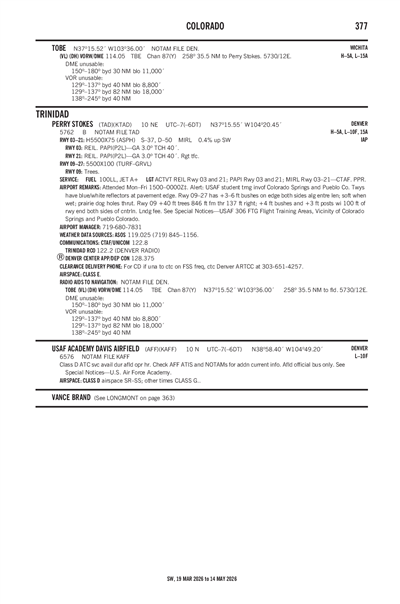

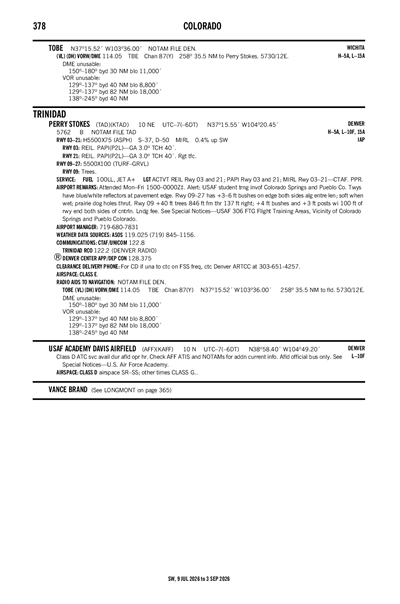

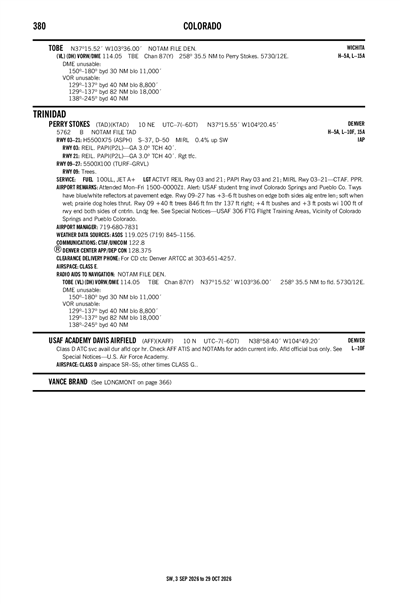

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPUB (62nm)
Mon, 12/23 4:20 AM MST
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 12:00 PM MST
Broken 11,000'
6sm
040° 6kts
VFR
12:00 PM MST - 8:00 PM MST
Broken 15,000'
Scattered 12,000'
6sm
110° 8kts
VFR
8:00 PM MST - 5:00 AM MST
Broken 12,000'
6sm
300° 7kts
KPUB 231120Z 2312/2412 04006KT P6SM BKN110
   FM231900 11008KT P6SM SCT120 BKN150
   FM240300 30007KT P6SM BKN120
KTAD
Domestic
10/3/242305Z !TAD 10/002 TAD RWY 21 PAPI U/S 2410032305-2504032359
FDC
7/15/241553Z !FDC 4/2389 TAD IAP PERRY STOKES, TRINIDAD, CO.
RNAV (GPS) RWY 21, ORIG...
LNAV MDA 6040/HAT 286 ALL CATS. CIRCLING CAT A MDA 6200/HAA 438 AND CIRCLING CAT C MDA 6360/HAA 598. CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PUEBLO ALTIMETER SETTING AND INCREASE ALL MDA 300 FEET: INCREASE LNAV CAT C/D VISIBILITY 3/4 SM, CIRCLING B/D VISIBILITY 1/4 SM AND CIRCLING CAT C VISIBILITY 1 1/4 SM.
2407151553-2607151553EST
No
MON-FRI 0800-1700
LAS ANIMAS COUNTY
PHIL DORENKAMP, 200 E 1ST ST
TRINIDAD, CO 81082-9607
Phone: 719-845-2598
EVAN OTTO
44814 CO RD 38.0
TRINIDAD, CO 81082-9607
Phone: 719-680-7831
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
TAD
--
ACTVT REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF. PPR.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

5500 ft. x 75 ft.
ASPH
Excellent
NONE
MED

37,000lbs
50,000lbs
--
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 15' 16"N 37° 15' 54"N
Longitude 104° 20' 39"W 104° 19' 51"W
Elevation 5,760' 5,740'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 09/27

5500 ft. x 100 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 106°286°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition POOR POOR
Latitude 37° 15' 39"N 37° 15' 24"N
Longitude 104° 21' 12"W 104° 20' 06"W
Elevation 5,759' 5,748'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A110-3TWYS HAVE BLUE/WHITE REFLECTORS AT PAVEMENT EDGE.
A110-8ALERT: USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO CO.
PERRY STOKES (ICAO: KTAD, IATA: TAD) is a public airport located in TRINIDAD, CO.
