WAYNESVILLE-ST ROBERT RGNL FORNEY FLD - Airport Diagram

KTBN

WAYNESVILLE-ST ROBERT RGNL FORNEY FLD

PublicPUB

0 miles SW of FORT LEONARD WOOD, MO

View on Map

Status

Operational

Coordinates

37° 44' 30"N 92° 08' 27"W

Elevation

1160' MSL

Pattern Alt

2160' MSL

Mag Variation

00E

Fuel

JET A, 100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

1/23/25-2/20/25

KTBN VFR

1:55 AM CST RAW

Scattered 21,000'
Few 19,000'

Viz

10sm

Temp

44°F

Dew

40°F

Pres

29.94"Hg

Wind

170° 10kts

RMK

AO2 SLP142 T00640042 $

KTBN 020755Z AUTO 17010KT 10SM FEW190 SCT210 06/04 A2994 RMK AO2 SLP142 T00640042 $

Add Your Business

KTBN FBOs

Promote Listing

St. Robert Cities Aviation

Phone: (573) 329-4216

0 Reviews (Read | Sign In To Write)

Avfuel

As of 1/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.60
Full Serve	4.70		4.40

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 125.4

ATIS

D-ATIS

118.7

ASOS

118.7

Emergency

EMERG

121.5

Ground

GND/P

123.75

Tower

LCL/P

125.4

Other

ARNG OPS	32.125
ARNG OPS	140.2
OPS FORNEY OPS	122.95

FAA A/FD Pages

FAA A/FD Page

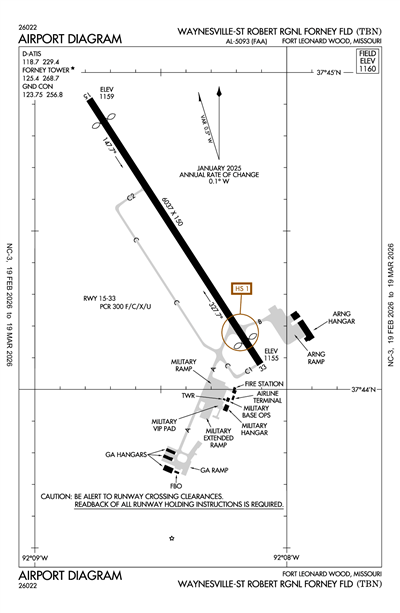

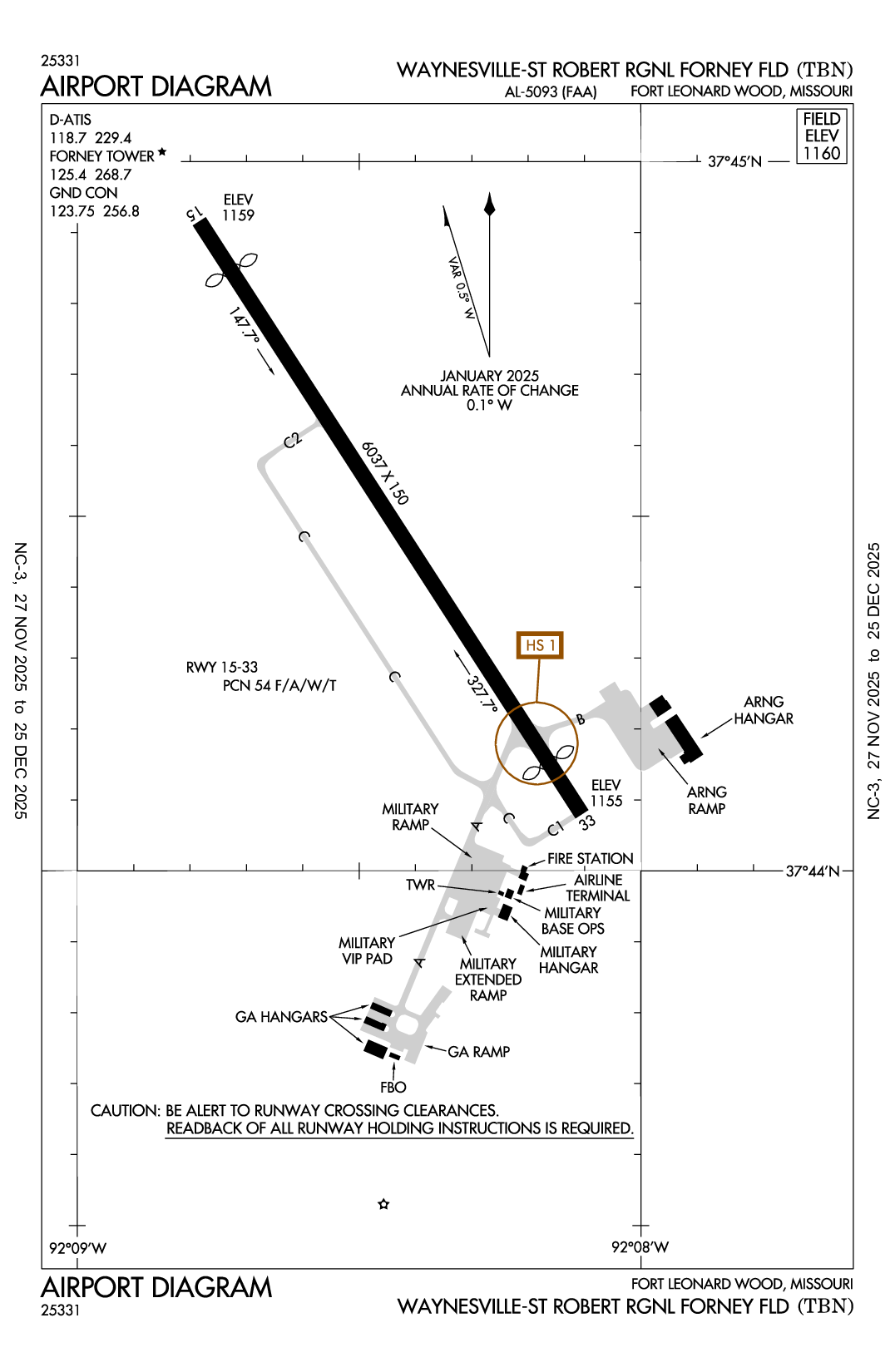

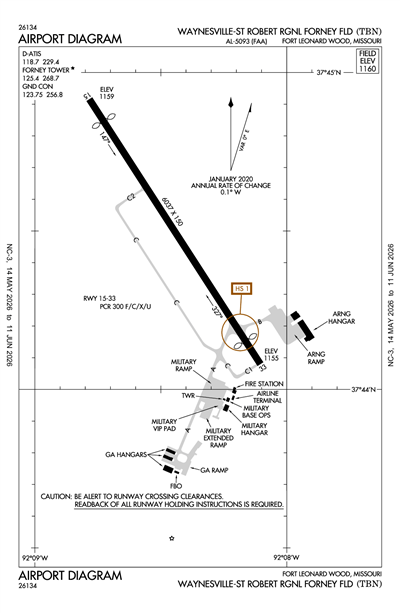

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KJEF (51nm)

RAW

Reported

Sat, 2/1 11:20 PM CST

Valid

Sun, 2/2 12:00 AM CST - Mon, 2/3 12:00 AM CST

VFR

12:00 AM CST - 9:00 AM CST

Overcast 25,000'
Scattered 2,500'

Viz

6sm

Wind

150° 8kts

VFR

9:00 AM CST - 4:00 PM CST

Scattered 25,000'

Viz

6sm

Wind

220° 8kts

VFR

4:00 PM CST - 12:00 AM CST

Scattered 25,000'

Viz

6sm

Wind

190° 5kts

KJEF 020520Z 0206/0306 15008KT P6SM SCT025 OVC250
FM021500 22008KT P6SM SCT250
FM022200 19005KT P6SM SCT250

KTBN

Domestic
1/6/250301Z	!TBN 01/006 TBN OBST TOWER LGT (ASR 1313456) 374820.30N0921302.20W (5.3NM NW TBN) 1073FT (200FT AGL) U/S 2501060301-2502200301
1/2/251723Z	!TBN 01/001 TBN AIRSPACE SEE ZKC 12/330 HIGH SPEED ACFT DLY SR-SS 2501021723-2512312359
12/27/240454Z	!TBN 12/019 TBN OBST TOWER LGT (ASR 1271441) 374630.60N0920817.60W (2.0NM NE TBN) 1335.0FT (194.9FT AGL) U/S 2412270454-2503282359
12/26/240513Z	!TBN 12/018 TBN OBST TOWER LGT (ASR 1253978) 374933.00N0920818.00W (5.1NM NE TBN) 1349.4FT (289.7FT AGL) U/S 2412260513-2503282359
11/24/240115Z	!TBN 11/010 TBN OBST TOWER LGT (ASR 1253984) 375202.00N0920259.00W (8.7NM NNE TBN) 1270.3FT (289.7FT AGL) U/S 2411240115-2503312359

ATC Tower

Yes

Attendance

MON-FRI 0800-1700
EXCLUDING HOLS.

Owner

U S ARMY
FORNEY ARMY AIRFIELD
FT LEONARD WOOD, MO 65473
Phone: 573-596-0165

Manager

MIKE GUY
FORNEY ARMY AIRFIELD
FT LEONARD WOOD, MO 65473
Phone: 573-596-0165

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

TBN

Light Schedule

Lights

WHEN TWR CLSD ACTVT MALS RWY 33; MALSR RWY 15; REIL RWY 15 & 33; PAPI RWY 15 & 33; HIRL RWY 15/33 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 15/33

Dimensions

6037 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

54 /F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	147°	327°
Traffic Pattern		Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	37° 44' 55"N	37° 44' 05"N
Longitude	92° 08' 47"W	92° 08' 06"W
Elevation	1,159'	1,155'
Threshold Crossing Height	50 ft. AGL	36 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights	MALSR	MALS
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	RSTD: PPR FOR ALL TRAN MIL ACFT DSN 581-0165/4819; C573-596-0165/4819.
A110-10	ARR AND DEP LRG ACFT MUST USE THE ALPHA TWY INT AT THE SE EOR 15-33 TO ACES AND EXIT THE RWY. ARR AND DEP LRG ACFT ARE REQUIRED TO BACK-TAXI ON THE RWY.
A110-2	SFC VSBY LIMITED BY TREE LINE FM E TO S TO W.
A110-4	WX SVC AVBL MON-FRI EXC HOL 1300-0400Z++. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HRS. OT REMOTE BRIEFING SVC AVBL 26 OWS BARKSDALE AFB DSN 781-4775, C318-456-4775, C866-223-2398 (TOLL FREE).
A110-6	MILITARY SERVICE: NO MIL FUEL AVBL. CIV: NC A AVBL 1400-2300Z++ OT C573-329-4216. 100LL AVBL H24 WITH CREDIT CARD.
A110-7	MILITARY: SVC: SOUTH END OF RWY SAFETY ZONE UNPROTECTED WHEN TWR CLSD.
A110-8	WHEN ATCT CLSD, FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-9	RSTD: CIV FBO RAMP CLSD TO MIL ACFT.

WAYNESVILLE-ST ROBERT RGNL FORNEY FLD (ICAO: KTBN, IATA: TBN) is a public airport located in FORT LEONARD WOOD, MO.
