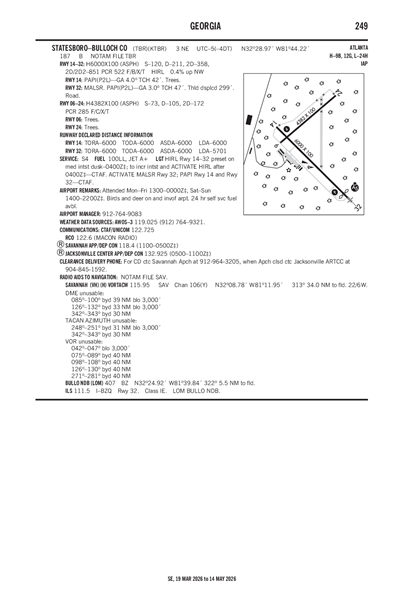

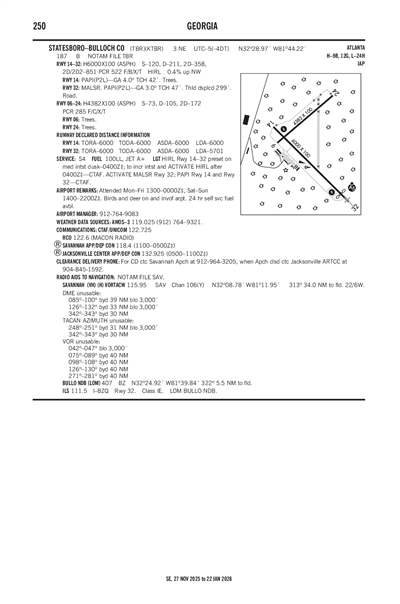

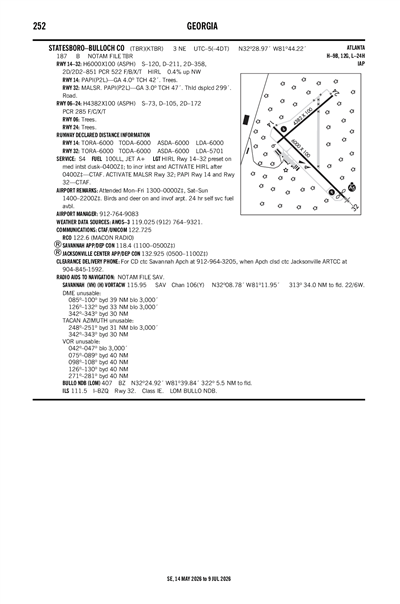

STATESBORO-BULLOCH COUNTY - Airport Diagram

KTBR

STATESBORO-BULLOCH COUNTY

PublicPUB

3 miles NE of STATESBORO, GA

View on Map

Status

Operational

Coordinates

32° 28' 58"N 81° 44' 13"W

Elevation

187' MSL

Pattern Alt

1187' MSL

Mag Variation

05W

Fuel

JET A (FSII), 100LL

FSS

MACON (MCN)

Sectional

ATLANTA

ARTCC

JACKSONVILLE (ZJX)

Data Effective

5/16/24-6/13/24

KTBR VFR

1:15 AM EDT RAW

Clear

Viz

10sm

Temp

66°F

Dew

58°F

Pres

30.21"Hg

Wind

Calm

RMK

AO2 T01880146

KTBR 010515Z AUTO 00000KT 10SM CLR 19/15 A3021 RMK AO2 T01880146

Add Your Business

KTBR FBOs

Promote Listing

Statesboro-Bulloch County Airport

UNICOM: 122.725

Phone: (912) 764-9083

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.90	4.85	4.85
Full Serve	6.00	4.95	4.95

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.725 CTAF 122.725

AWOS-3

912-764-9321

119.025

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KSAV (34nm)

RAW

Reported

Sat, 6/1 1:20 AM EDT

Valid

Sat, 6/1 2:00 AM EDT - Sun, 6/2 2:00 AM EDT

VFR

2:00 AM EDT - 10:00 AM EDT

Scattered 25,000'

Viz

6sm

Wind

060° 4kts

VFR

10:00 AM EDT - 2:00 PM EDT

Scattered 25,000'

Viz

6sm

Wind

110° 9kts

VFR

2:00 PM EDT - 10:00 PM EDT

Broken 25,000'
Scattered 5,000'

Viz

6sm

Wind

130° 12kts

Gusts 17kts

VFR

10:00 PM EDT - 2:00 AM EDT

Broken 20,000'
Scattered 4,000'

Viz

6sm

Wind

120° 6kts

KSAV 010520Z 0106/0206 06004KT P6SM SCT250
   FM011400 11009KT P6SM SCT250
   FM011800 13012G17KT P6SM SCT050 BKN250
   FM020200 12006KT P6SM SCT040 BKN200

KTBR

Domestic
5/31/240817Z	!TBR 05/007 TBR OBST TOWER LGT (ASR 1211042) 321948.70N0813641.80W (11.0NM SE TBR) 471.1FT (348.1FT AGL) U/S 2405310817-2408290400
5/26/240341Z	!TBR 05/006 TBR OBST TOWER LGT (ASR 1022419) 322606.60N0814440.60W (2.9NM S TBR) 522.0FT (319.9FT AGL) U/S 2405260341-2407100341
5/5/240556Z	!TBR 05/001 TBR OBST TOWER LGT (ASR 1230654) 322138.00N0815132.80W (9.7NM SW TBR) 403.9FT (259.8FT AGL) U/S 2405050556-2406190555
4/22/240212Z	!TBR 04/007 TBR OBST TOWER LGT (ASR 1228820) 322719.60N0814627.40W (2.5NM SW TBR) 505.2FT (318.2FT AGL) U/S 2404220212-2406060211
3/14/241200Z	!TBR 03/009 TBR AD AP ALL SFC WIP MOWING THU FRI MON TUE WED 1200-2100 2403141200-2411012100

ATC Tower

Attendance

MON-FRI 0800-1900
SAT-SUN 0900-1700

Owner

STATESBORO CITY & BULLOCH COUNTY
115 NORTH MAIN STREET
STATESBORO, GA 30458
Phone: 912-764-5468

Manager

DAVID CAMPBELL
601 AIRPORT BLVD
STATESBORO, GA 30461
Phone: 912-764-9083

FSS

MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF

NOTAM

TBR

Light Schedule

Lights

HIRL RWY 14/32 PRESET ON MED INTST DUSK-2300; TO INCR INTST & ACTVT HIRL AFTER 2300 - CTAF. ACTVT MALSR RWY 32; PAPI RWY 14 & 32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 06/24

Dimensions

4382 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

73,000lbs

Double Wheel

105,000lbs

Double Tandem

172,000lbs

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	50°	230°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	32° 28' 59"N	32° 29' 27"N
Longitude	81° 44' 34"W	81° 43' 55"W
Elevation	178'	187'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

Dimensions

6000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

211,000lbs

Double Tandem

358,000lbs

Dual Dbl Tand

851,000lbs

	Runway 14	Runway 32
True Heading	135°	315°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	32° 29' 08"N	32° 28' 26"N
Longitude	81° 44' 36"W	81° 43' 47"W
Elevation	181'	157'
Threshold Crossing Height	42 ft. AGL	47 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights

A110-1	BIRDS & DEER ON & INVOF ARPT.
A110-2	FOR CD CTC SAVANNAH APCH AT 912-964-3205, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.

STATESBORO-BULLOCH COUNTY (ICAO: KTBR, IATA: TBR) is a public airport located in STATESBORO, GA.
