KTDF
RALEIGH RGNL AT PERSON COUNTY
PublicPUB

6 miles S of ROXBORO, NC
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 17' 05"N 78° 59' 05"W
609' MSL
1609' MSL
08W
JET A-1+, 100LL
RALEIGH (RDU)
WASHINGTON
WASHINGTON (ZDC)
11/28/24-12/26/24
KTDF VFR
7:30 AM EST
Clear
10sm
18°F
16°F
30.60"Hg
Calm
AO2
KTDF 231230Z AUTO 00000KT 10SM CLR M08/M09 A3060 RMK AO2

KTDF FBOs

Red Mountain Aviation
UNICOM: 122.7
Phone: (336) 364-1111
Other: (615) 351-9845
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/7
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.49 5.89
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3

AWOS-3
336-364-1651
126.725

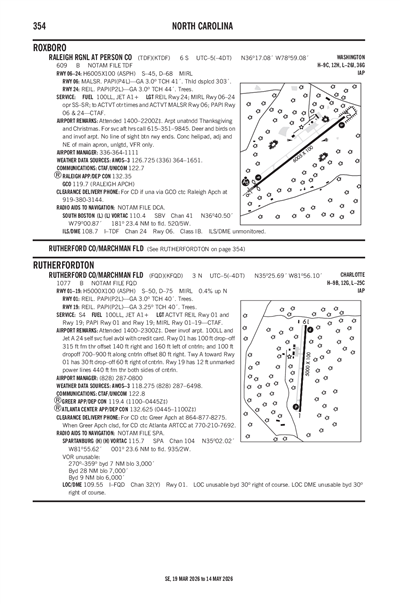

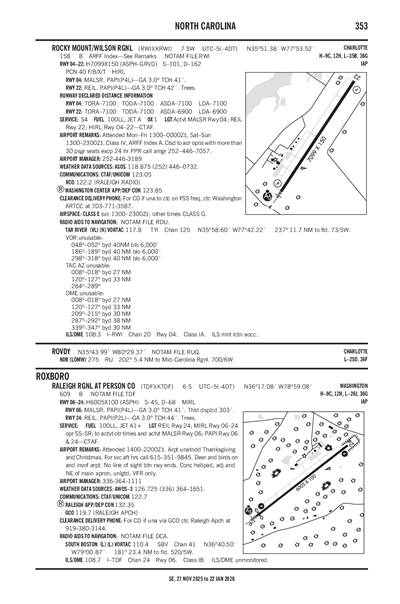

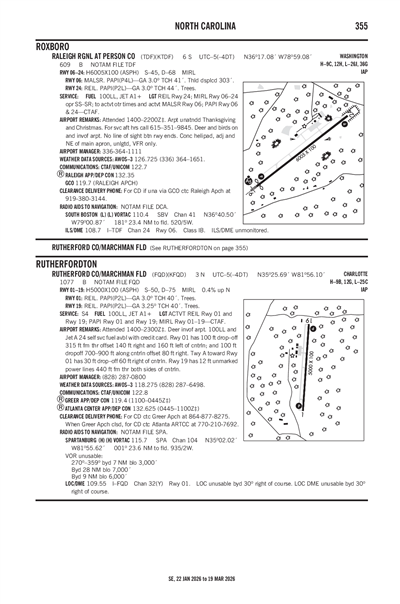

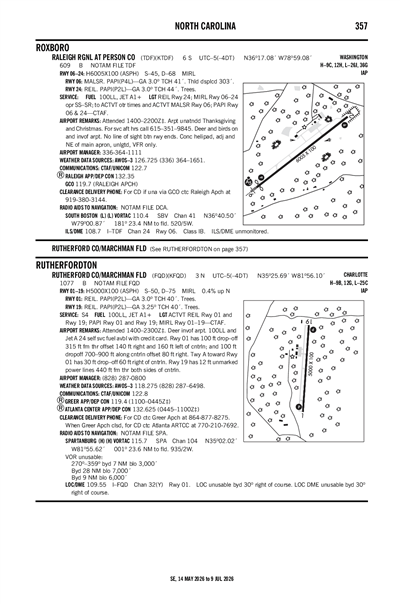

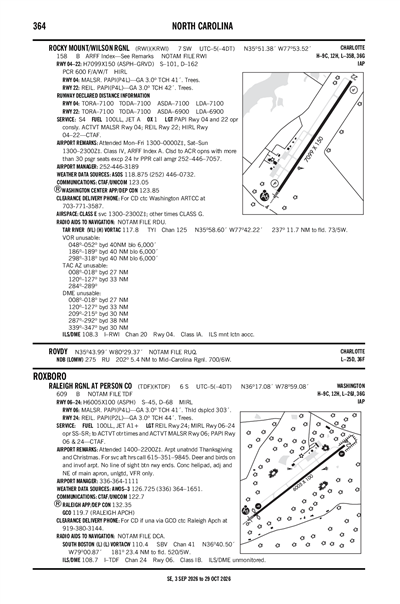

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KDAN (24nm)
Mon, 12/23 6:34 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 7:00 AM EST
Sky Clear
6sm
VRB° 3kts
KDAN 231134Z 2312/2412 VRB03KT P6SM SKC
KTDF
Domestic
12/7/240512Z !TDF 12/004 TDF OBST TOWER LGT (ASR 1225837) 362021.20N0784823.50W (9.3NM ENE TDF) 870.7FT (324.8FT AGL) U/S 2412070512-2503072359
9/21/242201Z !TDF 09/005 TDF OBST TOWER LGT (ASR 1003391) 362307.00N0785808.00W (6.1NM NE TDF) 1169.9FT (390.1FT AGL) U/S 2409212201-2412312359
8/25/211908Z !TDF 08/007 TDF TWY C CLSD 2108251908-PERM
FDC
12/20/241617Z !FDC 4/9565 TDF IAP RALEIGH RGNL AT PERSON COUNTY, ROXBORO, NC.
ILS OR LOC RWY 6, AMDT 2A...
MISSED APPROACH: CLIMB TO 1500 THEN CLIMBING LEFT TURN TO 3000 ON HEADING 021 AND ON SBV VORTAC R-172 TO ALDAN INT/SBV 17.05 DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 3000,
RDU VORTAC OUT OF SERVICE. 2412201617-2508011617EST
No
0900-1700
ARPT UNATTENDED THANKSGIVING & CHRISTMAS.
FOR SVC AFTER HRS CALL 615-351-9845.
PERSON COUNTY
COUNTY BLDG, 304 S MORGAN ST
ROXBORO, NC 27573-5245
Phone: 336-597-1735
BILL TOUGAS
385 MONTGOMERY DRIVE
TIMBERLAKE, NC 27583-5245
Phone: 336-364-1111
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
TDF
--
REIL RWY 24; MIRL RWY 06/24 OPR SS-SR; TO ACTVT OTR TIMES AND ACTVT MALSR RWY 06; PAPI RWY 06 & 24 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 06/24

6005 ft. x 100 ft.
ASPH
Excellent
NONE
MED

45,000lbs
68,000lbs
--
--
  Runway 06 Runway 24
True Heading 52°232°
Traffic Pattern
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 36° 16' 46"N 36° 17' 23"N
Longitude 78° 59' 34"W 78° 58' 36"W
Elevation 590' 604'
Threshold Crossing Height 41 ft. AGL 44 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-100GCO AVBL ON FREQ 119.700 THRU RALEIGH APCH.
A110-101CONCRETE HELIPAD, ADJACENT AND NE OF MAIN APRON, UNLGTD, VFR ONLY.
A110-102NO LINE OF SIGHT BTN RWY ENDS.
A110-103FOR CD IF UNA VIA GCO CTC RALEIGH APCH AT 919-380-3144.
A110-104(CONTACT TITLE) FAX: 336-364-2224.
RALEIGH RGNL AT PERSON COUNTY (ICAO: KTDF, IATA: TDF) is a public airport located in ROXBORO, NC.
