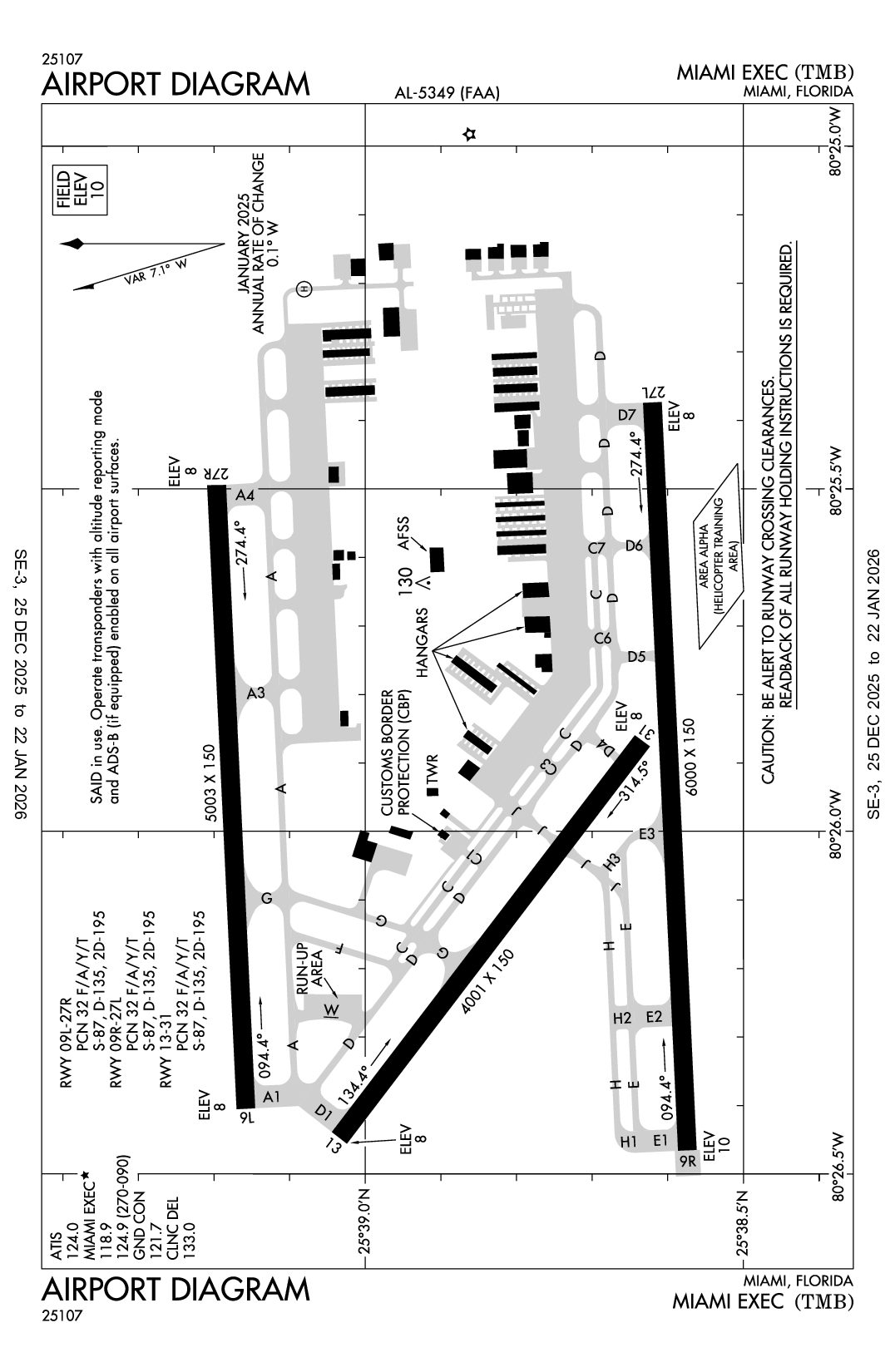

MIAMI EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTMB
MIAMI EXEC
PublicPUB

13 miles SW of MIAMI, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
25° 38' 51"N 80° 25' 60"W
10' MSL
1010' MSL
06W
JET A, 100LL
MIAMI (MIA)
MIAMI
MIAMI (ZMA)
11/28/24-12/26/24
KTMB VFR
6:53 AM EST
Clear
10sm
58°F
58°F
30.21"Hg
360° 4kts
AO2 SLP228 T01440144 10167 20128 53011
KTMB 231153Z AUTO 36004KT 10SM CLR 14/14 A3021 RMK AO2 SLP228 T01440144 10167 20128 53011

KTMB FBOs

International Flight Center - North
UNICOM: 122.825
Phone: (305) 251-1982
Other: (786) 383-2749
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/22
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50
Full Serve 7.53 5.97 6.07
Fuel Notes
Prices include tax
Signature Aviation
UNICOM: 130.45
Phone: (305) 871-3105
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/19
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.66 6.09
Fuel Notes
Prices include tax
Reliance Aviation
UNICOM: 122.95
Phone: (305) 233-0310
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 12/10
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.45 6.05 6.15
Fuel Notes
Prices include tax
International Flight Center
UNICOM: 122.825
Phone: (305) 238-8122
Fax: (305) 238-0464
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/22
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.53 5.97 6.07
Fuel Notes
Prices include tax

KTMB Aircraft Service & Maintenance

Avionics Link Corp.
Phone: (305) 794-0193
No Rating Available
0 Reviews (Read | Sign In To Write)
Propel Aviation Sales & Services LLC
Phone: (305) 255-5077
Fax: (305) 255-5699
No Rating Available
0 Reviews (Read | Sign In To Write)
ASG Aerospace LLC
Phone: (305) 253-0802
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.9

ATIS

ATIS
124.0

ASOS

ASOS
305-235-1332
124.0

Clearance Delivery

CD/P
133.0

Ground

GND/P
121.7

Tower

LCL/P
270-090
124.9
LCL/P IC
118.9

Other

VFR ADZY
118.9

Terminal Area Forecast

KTMB
Mon, 12/23 6:28 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Scattered 25,000'
Scattered 5,000'
Few 3,500'
6sm
VRB° 5kts
VFR
9:00 AM EST - 9:00 PM EST
Broken 25,000'
Scattered 5,000'
6sm
100° 10kts
VFR
9:00 PM EST - 7:00 AM EST
Broken 25,000'
Few 5,000'
6sm
VRB° 4kts
KTMB 231128Z 2312/2412 VRB05KT P6SM FEW035 SCT050 SCT250
   FM231400 10010KT P6SM SCT050 BKN250
   FM240200 VRB04KT P6SM FEW050 BKN250
KTMB
Domestic
12/23/241118Z !TMB 12/020 TMB AD AP AREA A HEL TRG GRASS CLSD 2412231118-2412231300
12/23/241104Z !TMB 12/019 TMB RWY 27L PAPI U/S 2412231104-2501012000EST
12/19/242145Z !TMB 12/018 TMB RWY 09L PAPI U/S 2412192145-2412262000EST
12/11/241724Z !TMB 12/011 TMB OBST TOWER LGT (ASR 1306995) 253849.31N0802443.23W (1.2NM E TMB) 108FT (100FT AGL) U/S 2412111724-2412260500
12/11/241721Z !TMB 12/010 TMB OBST TOWER LGT (ASR 1030012) 253916.10N0802258.00W (2.8NM E TMB) 222.8FT (212.9FT AGL) U/S 2412111721-2412260500
12/5/242320Z !TMB 12/005 TMB OBST TOWER LGT (ASR 1030635) 254528.00N0803822.50W (12.8NM WNW TMB) 265.7FT (258.9FT AGL) U/S 2412052320-2502052359
11/27/241615Z !TMB 11/019 TMB OBST TOWER LGT (ASR 1318809) 254237.70N0802826.90W (4.37NM NNW TMB) 316FT (311FT AGL) U/S 2411271615-2503312359
5/31/241200Z !TMB 05/012 TMB OBST CRANE (ASN 2023-ASO-7981-OE) 254254N0802331W (4.7NM NNE TMB) 110FT (105FT AGL) FLAGGED 2405311200-2501222100
5/29/241200Z !TMB 05/011 TMB OBST CRANE (ASN 2023-ASO-28849-OE) 253818N0802344W (2.1NM ESE TMB) 62FT (55FT AGL) FLAGGED 2405291200-2508292000
8/15/231000Z !TMB 08/031 TMB OBST CRANE (ASN 2023-ASO-20796-OE) 254048N0802459W (2.2NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/030 TMB OBST CRANE (ASN 2023-ASO-20795-OE) 254049N0802454W (2.2NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/029 TMB OBST CRANE (ASN 2023-ASO-20794-OE) 254051N0802454W (2.3NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/028 TMB OBST CRANE (ASN 2023-ASO-20793-OE) 254051N0802453W (2.3NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/027 TMB OBST CRANE (ASN 2023-ASO-20792-OE) 254048N0802452W (2.2NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/026 TMB OBST CRANE (ASN 2023-ASO-20791-OE) 254041N0802452W (2.1NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
8/15/231000Z !TMB 08/025 TMB OBST CRANE (ASN 2023-ASO-20790-OE) 254041N0802459W (2.1NM NNE TMB) 251FT (240FT AGL) FLAGGED AND LGTD 2308151000-2501290001
FDC
12/23/240555Z !FDC 4/0268 TMB SID MIAMI EXEC, MIAMI, FL.
MIAMI TWO DEPARTURE...
KETLL TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR OUT OF SERVICE. 2412230555-2501210555EST
12/23/240555Z !FDC 4/0265 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR OUT OF SERVICE. 2412230555-2501210555EST
12/23/240553Z !FDC 4/0260 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VKZ VOR/DME UNMONITORED. 2412230553-2501210553EST
12/19/241200Z !FDC 4/7791 TMB IAP MIAMI EXEC, MIAMI, FL.
RNAV (GPS) RWY 27R, ORIG-C...
LPV DA 375/HAT 367 ALL CATS, VIS ALL CATS 1. CIRCLING CAT A MDA 540/HAA 530. RWY 27R HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NA. TEMPORARY CRANE 130 MSL 3734FT E OF RWY 27R (2024-ASO-19235-OE), TEMPORARY CRANE 183 MSL 3240FT N OF TMB AIRPORT (2023-ASO-25191-OE).
2412191200-2501301420EST
12/19/241200Z !FDC 4/7790 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
RNAV (GPS) RWY 27L, AMDT 2E...
RNAV (GPS) RWY 9L, ORIG-D...
RNAV (GPS) RWY 9R, AMDT 2E...
CIRCLING CAT A MDA 540/HAA 530. TEMPORARY CRANE 183 MSL 3240FT N OF TMB AIRPORT (2023-ASO-25191-OE).
2412191200-2501301420EST
11/22/241426Z !FDC 4/7874 TMB ODP MIAMI EXEC, MIAMI, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
ADD TAKEOFF OBSTACLE NOTE: RWY 9L, TEMPORARY CRANE 3706FT FROM DER, 456FT RIGHT OF CENTERLINE, 125FT AGL/ 130FT MSL (2024-ASO-19235-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2411221426-2501271426EST
2/14/242050Z !FDC 4/5395 TMB IAP MIAMI EXEC, MIAMI, FL.
ILS OR LOC RWY 9R, AMDT 11E...
NOTE: FOR INOP ALS WHEN USING MIAMI INTL ALTIMETER SETTING, INCREASE S-LOC 9R CATS C/D VISIBILITY TO 1 3/8 SM.
2402142050-2602142050EST
Yes
ALL
MIAMI-DADE COUNTY
MIAMI -DADE AVIATION DEPT., P.O. BOX 025504
MIAMI, FL 33102-5504
Phone: 305-876-7038
JONATHAN SPICER
12800 SW 145TH AVE
MIAMI, FL 33186
Phone: 305-869-1702
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
TMB
--
WHEN ATCT CLSD ACTVT MALSR RWY 09R; HIRL RWY 09R/27L; MIRL RWY 13/31; TWY - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High & Low Pressure
Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 09L/27R

5003 ft. x 150 ft.
ASPH
Fair
GRVD
MED
32 /F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 09L Runway 27R
True Heading 87°267°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 25° 39' 09"N 25° 39' 12"N
Longitude 80° 26' 24"W 80° 25' 30"W
Elevation 8' 8'
Threshold Crossing Height 53 ft. AGL 40 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09R/27L

6000 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
32 /F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 09R Runway 27L
True Heading 87°267°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 25° 38' 34"N 25° 38' 37"N
Longitude 80° 26' 28"W 80° 25' 22"W
Elevation 10' 8'
Threshold Crossing Height 55 ft. AGL 53 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4001 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
32 /F/A/Y/T
87,000lbs
135,000lbs
195,000lbs
--
  Runway 13 Runway 31
True Heading 127°307°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 25° 39' 02"N 25° 38' 38"N
Longitude 80° 26' 27"W 80° 25' 52"W
Elevation 8' 8'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

75 ft. x 75 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings
Markings Condition GOOD
Latitude 25° 39' 05"N N/A
Longitude 80° 25' 13"W N/A
Elevation 9' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT CLSD TO NON-ENG ACFT.
A110-10NOISE SENSITIVE ARPT; FLT TRNG LTD WKDAY 1200-0400Z ; WKEND & OBSERVED HOL 1400-0200Z.
A110-11FOR CD IF UNA TO CTC ON FSS FREQ, CTC MIAMI APCH AT 305-869-5432.
A110-12US CBP AND EAPIS AVBL. 1500-0100Z++-305-969-7511. OPS. MNT FREQ 118.9 DURING CTAF OPS.
A110-13RWY 9L/27R AND RWY 13/31 CLOSED DLY 0400-1200++ WHEN RWY 9R/27L IS IN USE.
A110-14US CBP EXTD HRS AVBL UPON REQ, EMAIL KTMB-ARRIVALS@CBP.DHS.GOV PRIOR TO 2300Z++.
A110-3BIRDS & AGRICULTURAL OPS BLW 200 FT AGL SR TO SS ON AND INVOF ARPT.
A110-6PTNS OF TWY A BTN SPOTS 1 & 2 & PTNS OF TWY D BTN SPOTS 14 & 17 & PTNS OF TWY C BTN SPOTS 13 &14 NOT VSB FM ATCT. SIMUL MOV OF ACFT WITH WINGSPANS IN EXCESS OF 95 FT ARE PRECLUDED FM USING PARL TWY C AND TWY D.
A110-8NOISE ABATEMENT PROC IN EFCT; NO TURNS BLW 1000 FT - 305-869-1700.
MIAMI EXEC (ICAO: KTMB, IATA: TMB) is a public airport located in MIAMI, FL.
