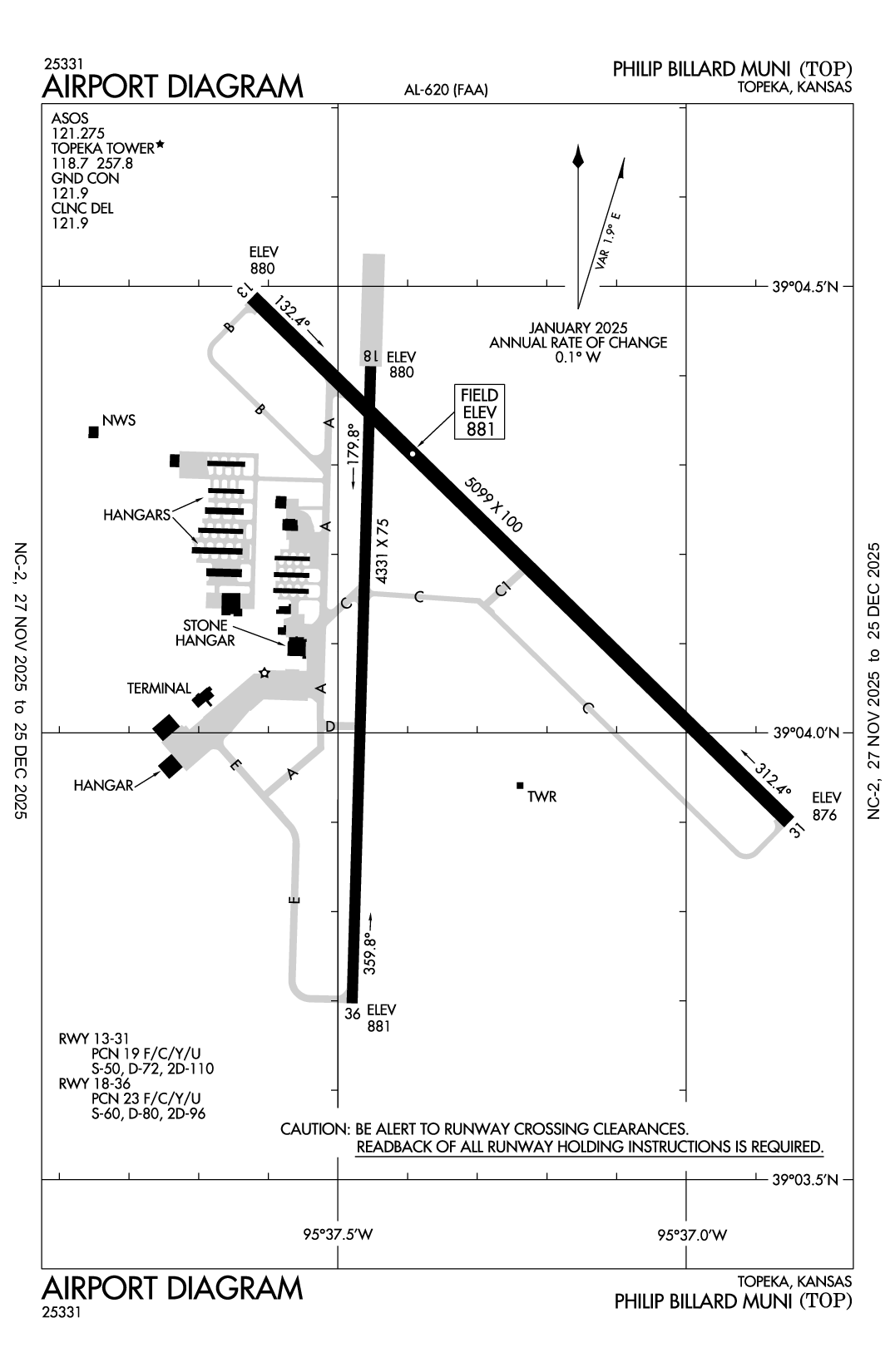

PHILIP BILLARD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTOP
PHILIP BILLARD MUNI
PublicPUB

3 miles NE of TOPEKA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 04' 08"N 95° 37' 21"W
881' MSL
1881' MSL
05E
JET A, 100LL
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KTOP MVFR
5:53 AM CST
Overcast 2,700'
10sm
45°F
34°F
30.05"Hg
210° 7kts
AO2 SLP178 T00720011 10078 20061 51009
KTOP 231153Z AUTO 21007KT 10SM OVC027 07/01 A3005 RMK AO2 SLP178 T00720011 10078 20061 51009
Add Your Business

KTOP FBOs

Promote Listing
TOP Fuel Service
UNICOM: 122.95
Phone: (785) 234-2602
Other: (785) 354-7055
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.99 4.08
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.7

ASOS

ASOS
785-234-1591
 121.275

Clearance Delivery

CD/P
 121.9

Ground

GND/P
 121.9

Tower

LCL/P
 118.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTOP
Mon, 12/23 5:29 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
MVFR
6:00 AM CST - 11:00 AM CST
Broken 2,200'
6sm
230° 7kts
MVFR
Temporary 6:00 AM CST - 10:00 AM CST
Broken 1,800'
N/A
Calm
VFR
11:00 AM CST - 6:00 AM CST
Broken 8,000'
Scattered 3,500'
6sm
320° 2kts
KTOP 231129Z 2312/2412 23007KT P6SM BKN022
   TEMPO 2312/2316 BKN018
   FM231700 32002KT P6SM SCT035 BKN080
KTOP
Domestic
12/21/240216Z !TOP 12/035 TOP OBST TOWER LGT (ASR 1288140) 390229.00N0952709.10W (8.1NM ESE TOP) 1369.8FT (299.9FT AGL) U/S 2412210216-2502040216
12/18/241912Z !TOP 12/033 TOP SVC AUTOMATED WX BCST SYSTEM CHANGED TO 785-274-8258 2412181912-PERM
12/18/240704Z !TOP 12/032 TOP OBST TOWER LGT (ASR 1230579) 391916.10N0952803.80W (16.8NM NNE TOP) 1230.6FT (259.8FT AGL) U/S 2412180704-2504170704
12/18/240704Z !TOP 12/031 TOP OBST TOWER LGT (ASR 1230579) 391916.10N0952803.80W (16.8NM NNE TOP) 1230.6FT (259.8FT AGL) U/S 2412180704-2504170704
12/18/240535Z !TOP 12/030 TOP OBST TOWER LGT (ASR 1245805) 390834.60N0954217.90W (5.9NM NW TOP) 1263.8FT (336.0FT AGL) U/S 2412180535-2501020435
12/16/241713Z !TOP 12/029 TOP OBST TOWER LGT (ASR 1272549) 390732.70N0952406.30W (10.9NM ENE TOP) 1351.7FT (301.8FT AGL) U/S 2412161713-2412311713
11/29/242040Z !TOP 11/027 TOP OBST TOWER LGT (ASR 1032651) 390350.00N0954550.00W (6.6NM W TOP) 2016.7FT (937.3FT AGL) U/S 2411292040-2502282359
11/19/241639Z !TOP 11/017 TOP OBST TOWER LGT (ASR 1029400) 390253.00N0954028.00W (2.7NM WSW TOP) 1209.0FT (264.1FT AGL) U/S 2411191639-2501192359
11/18/241702Z !TOP 11/016 TOP OBST TOWER LGT (ASR 1037527) 390646.30N0952748.60W (7.9NM ENE TOP) 1335.0FT (292.0FT AGL) U/S 2411181702-2503181702
11/18/241018Z !TOP 11/013 TOP OBST TOWER LGT (ASR 1032508) 391541.00N0953921.00W (11.7NM N TOP) 1539.0FT (408.1FT AGL) U/S 2411181018-2412312359
FDC
10/25/241903Z !FDC 4/4516 TOP IAP PHILIP BILLARD MUNI, TOPEKA, KS.
RNAV (GPS) RWY 31, AMDT 1B...
LNAV MDA 1420/HAT 540 ALL CATS, CIRCLING CAT A MDA 1420/HAA 539.
2410251903-2610221903EST
Yes
0700-2000
METRO. TOPEKA ARPT AUTH.
FORBES FIELD, 6510 SE FORBES AVE
TOPEKA, KS 66619
Phone: 785-862-2362
ERIC M. JOHNSON
FORBES FIELD, 6510 SE FORBES AVE
TOPEKA, KS 66619
Phone: 785-862-2362
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
TOP
--
WHEN ATCT CLSD ACTVT MALSR RWY 13; REIL RWY 18 & 31; VASI RWY 18 & 31; HIRL RWY 13/31; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental

Runway 13/31

5099 ft. x 100 ft.
ASPH
Good
NONE
HIGH
19 /F/C/Y/U
50,000lbs
72,000lbs
110,000lbs
--
  Runway 13 Runway 31
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 04' 29"N 39° 03' 54"N
Longitude 95° 37' 37"W 95° 36' 51"W
Elevation 880' 876'
Threshold Crossing Height -- 55 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

4331 ft. x 75 ft.
ASPH
Good
NONE
MED
23 /F/C/Y/U
60,000lbs
80,000lbs
96,000lbs
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 04' 25"N 39° 03' 42"N
Longitude 95° 37' 27"W 95° 37' 29"W
Elevation 880' 881'
Threshold Crossing Height 35 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2LARGE & SMALL MIGRATORY BIRDS ON & INVOF ARPT.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
PHILIP BILLARD MUNI (ICAO: KTOP, IATA: TOP) is a public airport located in TOPEKA, KS.
