iFlightPlanner



...

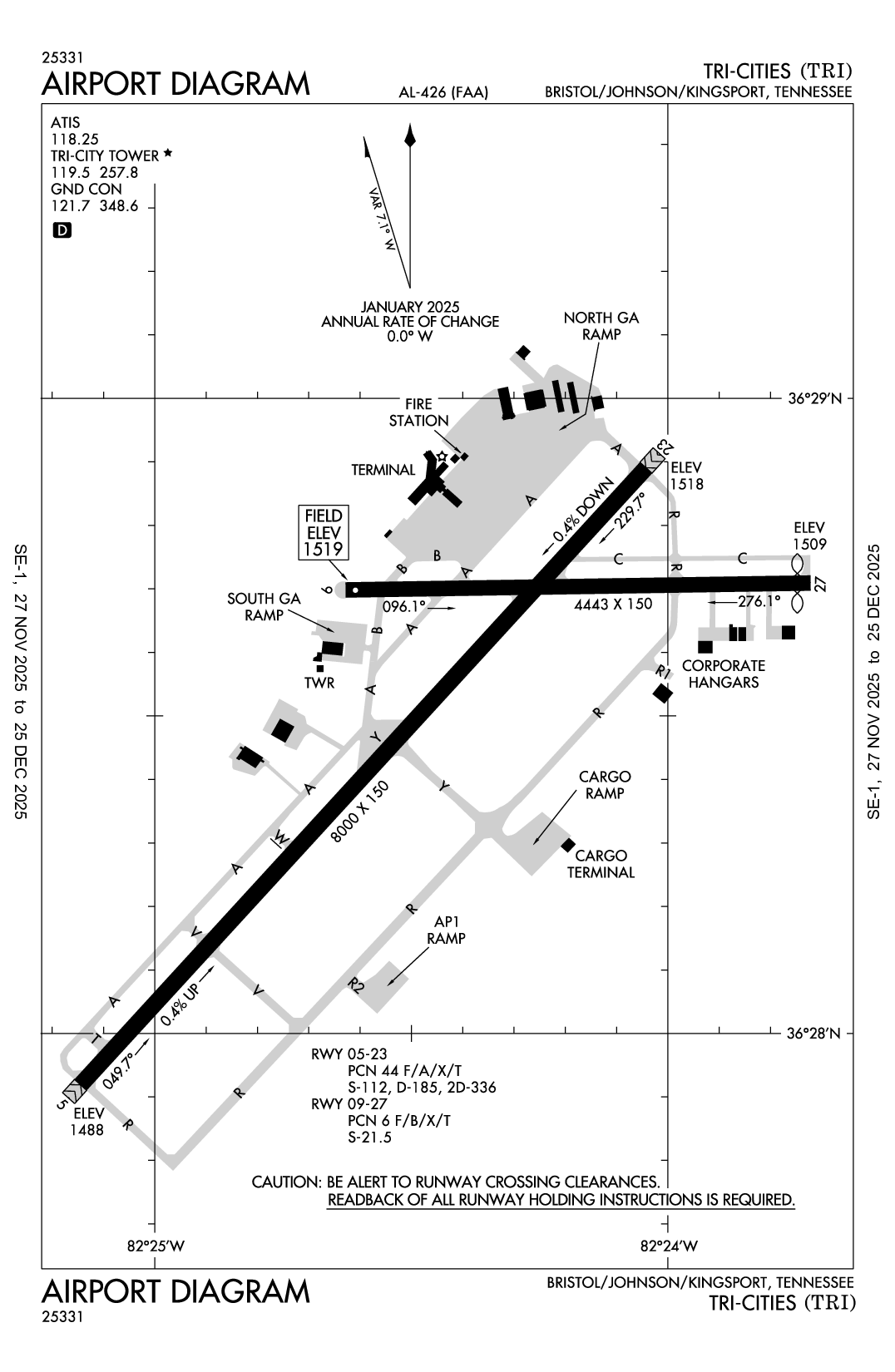

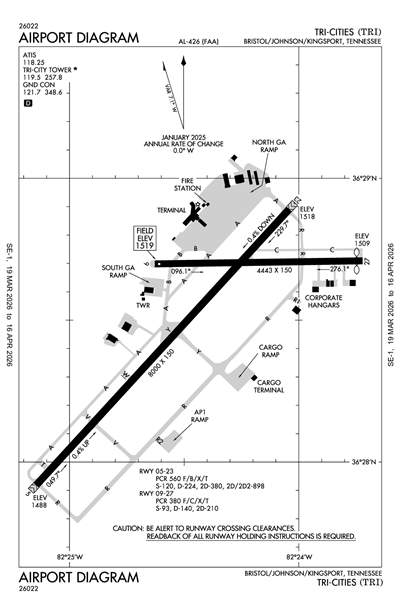

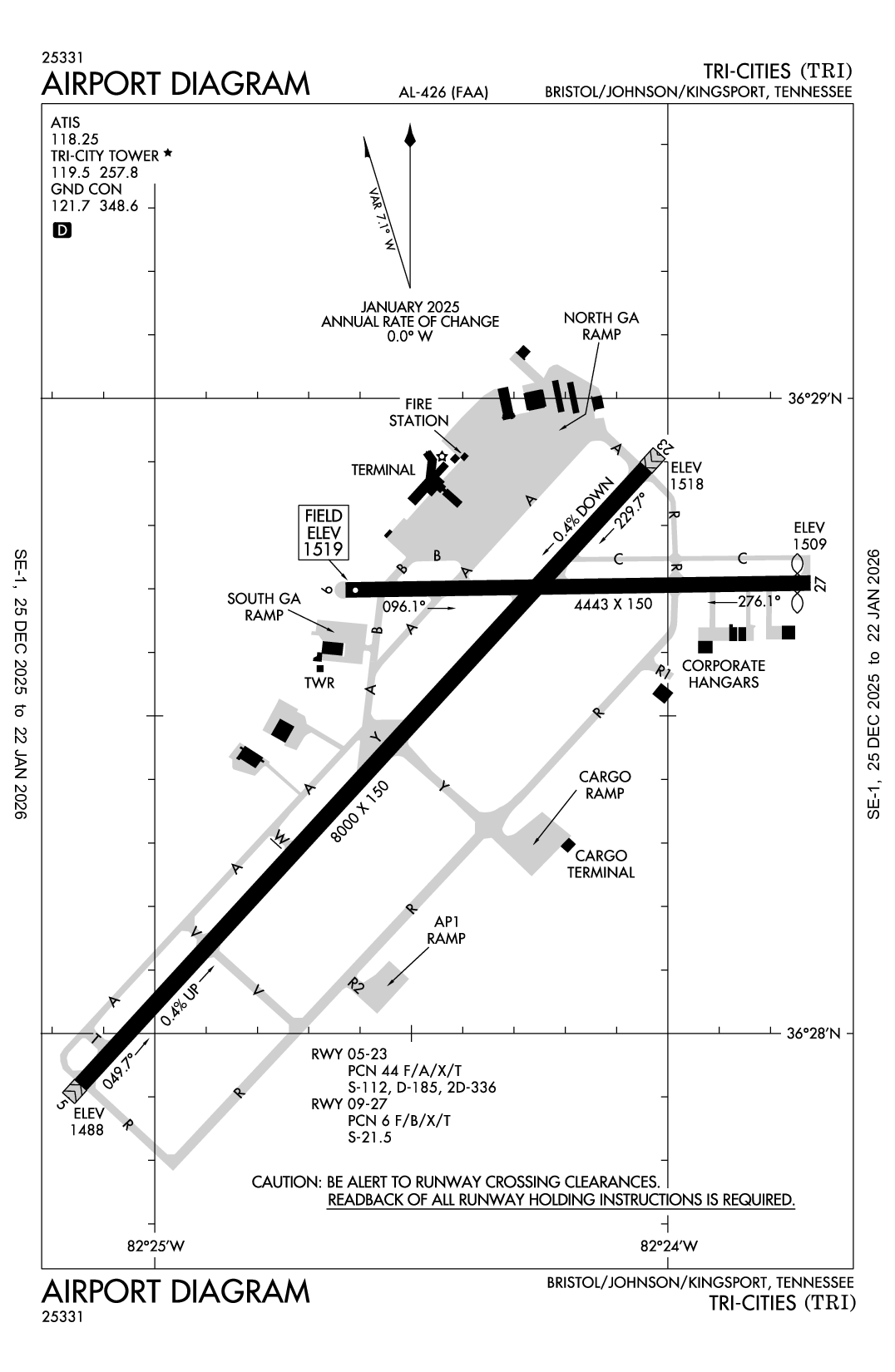

TRI-CITIES - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTRI
TRI-CITIES
PublicPUB

12 miles SW of BRISTOL/JOHNSON/KINGSPORT, TN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 28' 31"N 82° 24' 27"W
1519' MSL
2519' MSL
07W
JET A, 100LL
NASHVILLE (BNA)
CINCINNATI
ATLANTA (ZTL)
11/28/24-12/26/24
KTRI VFR
6:53 AM EST
Clear
10sm
20°F
17°F
30.45"Hg
Calm
AO2 SLP318 T10671083 11050 21072 53012
KTRI 231153Z 00000KT 10SM CLR M07/M08 A3045 RMK AO2 SLP318 T10671083 11050 21072 53012

KTRI FBOs

Tri-City Aviation
UNICOM: 122.95
Phone: (423) 325-6261
Other: (423) 325-6275
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 12/13
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.82 6.78
Fuel Notes
Prices include tax

KTRI Aircraft Service & Maintenance

Wysong Enterprises Inc.
Phone: (423) 325-6900
Fax: (423) 325-6905
No Rating Available
0 Reviews (Read | Sign In To Write)
Gary D. Daniel - FAA DAR-T Designee
Phone: (423) 895-2013
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.5

ATIS

ATIS
118.25

ASOS

ASOS
423-279-0363
118.25

Approach

APCH/S
128.05

Approach/Departure

APCH/P DEP/P
228-046
125.5
APCH/P DEP/P IC
047-227
134.425

Emergency

EMERG
121.5

Ground

GND/P
121.7

Tower

LCL/P
119.5

Other

TRSA
228-046
125.5
TRSA
047-227
134.425

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Terminal Area Forecast

KTRI
Mon, 12/23 6:23 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 1:00 AM EST
Sky Clear
6sm
VRB° 4kts
VFR
1:00 AM EST - 7:00 AM EST
Scattered 20,000'
6sm
Calm
KTRI 231123Z 2312/2412 VRB04KT P6SM SKC
   FM240600 00000KT P6SM SCT200
KTRI
Domestic
12/21/242002Z !TRI 12/026 TRI RWY 23 SEQUENCED FLG LGT U/S 2412212002-2501212000EST
12/14/242350Z !TRI 12/012 TRI OBST TOWER LGT (ASR 1218354) 363448.20N0822320.30W (6.4NM NE TRI) 2214.9FT (290.0FT AGL) U/S 2412142350-2503140500
12/13/241733Z !TRI 12/011 TRI OBST TOWER LGT (ASR 1043637) 362357.20N0823824.80W (12.2NM WSW TRI) 1983.9FT (280.8FT AGL) U/S 2412131733-2412280500
12/12/241850Z !TRI 12/009 TRI OBST RADAR ANTENNA (ASN UNKNOWN) 362820N0822415W (1500FT NW RWY 5/23) 1533FT (45FT AGL) NOT LGTD 2412121850-2501312000
11/22/241447Z !TRI 11/053 TRI OBST TOWER LGT (ASR 1048821) 363240.00N0823122.00W (6.9NM NW TRI) 1564.0FT (360.9FT AGL) U/S 2411221447-2501312359
11/22/240911Z !TRI 11/042 TRI OBST POLE LGT (ASN UNKNOWN) 362817N0822414W (0.63NM SE APCH END RWY 23)
1560FT (60FT AGL) U/S 2411220911-2412312300
11/22/240910Z !TRI 11/041 TRI OBST POLE LGT (ASN UNKNOWN) 362818N0822412W (0.60NM SE APCH END RWY 23)
1560FT (60FT AGL) U/S 2411220910-2412312300
11/20/240957Z !TRI 11/033 TRI RWY 05 PAPI U/S 2411200957-2501032000EST
11/14/240232Z !TRI 11/020 TRI NAV ILS RWY 23 MOCCA LOM NOT MNT 2411140232-2502282000EST
11/11/242359Z !TRI 11/014 TRI NAV VOR GND REC CHECKPOINT U/S 2411112359-2505122111EST
10/28/241120Z !TRI 10/053 TRI OBST TOWER LGT (ASR 1208515) 362820.50N0822906.20W (3.7NM W TRI) 1640.7FT (259.8FT AGL) U/S 2410281120-2501260400
10/24/241155Z !TRI 10/048 TRI OBST TOWER LGT (ASR 1200958) 362814.40N0823615.00W (9.5NM W TRI) 1617.8FT (255.9FT AGL) U/S 2410241155-2501220400
10/12/241639Z !TRI 10/023 TRI NAV ILS RWY 05 BOOIE LOM NOT MNT 2410121639-2412312000EST
9/26/240055Z !TRI 09/073 TRI OBST TOWER LGT (ASR 1200022) 362347.20N0823710.80W (11.4NM WSW TRI) 2211.9FT (258.9FT AGL) U/S 2409260055-2412240400
FDC
12/13/241744Z !FDC 4/6352 TRI ODP TRI-CITIES, BRISTOL/JOHNSON/KINGSPORT, TN.
TRICITIES THREE DEPARTURE ...
TAKEOFF RWY 05, 09 NA, EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VCOA RWY 05, 23 NA, EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GZG VOR OUT OF SERVICE. 2412131744-2501131744EST
11/8/241820Z !FDC 4/1316 TRI IAP TRI-CITIES, BRISTOL/JOHNSON/KINGSPORT, TN.
ILS OR LOC RWY 5, AMDT 3D...
BOOIE LOM UNUSABLE ABOVE 5000.
2411081820-2611081820EST
Yes
ALL
BRISTOL JOHNSON KINGSPORT
2525 HWY 75, SUITE 301
BLOUNTVILLE, TN 37617
Phone: (423) 325-6000
GENE COSSEY
2525 HWY 75, SUITE 301
BLOUNTVILLE, TN 37617
Phone: (423) 325-6001
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
TRI
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

8000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
44 /F/A/X/T
112,000lbs
185,000lbs
336,000lbs
--
  Runway 05 Runway 23
True Heading 43°223°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 27' 55"N 36° 28' 53"N
Longitude 82° 25' 09"W 82° 24' 03"W
Elevation 1,488' 1,518'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 09/27

4442 ft. x 150 ft.
ASPH
Fair
NONE
MED
6 /F/B/X/T
22,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 28' 42"N 36° 28' 43"N
Longitude 82° 24' 38"W 82° 23' 43"W
Elevation 1,519' 1,509'
Threshold Crossing Height -- 32 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC ATLANTA ARTCC AT 770-210-7692.
A110-2RWY 09/27 UNAVBL WHEN TWR CLOSED.
A110-3ACFT WITH WINGSPAN MORE THAN 79 FT ARE RSTRD FROM USING TWY A BTN TWY Y AND APCH END RWY 05 WHEN ACFT WITH WINGSPAN MORE THAN 79 FT USING RWY 05/23.
A110-4BIRDS ON & INVOF THE APRT.
TRI-CITIES (ICAO: KTRI, IATA: TRI) is a public airport located in BRISTOL/JOHNSON/KINGSPORT, TN.
