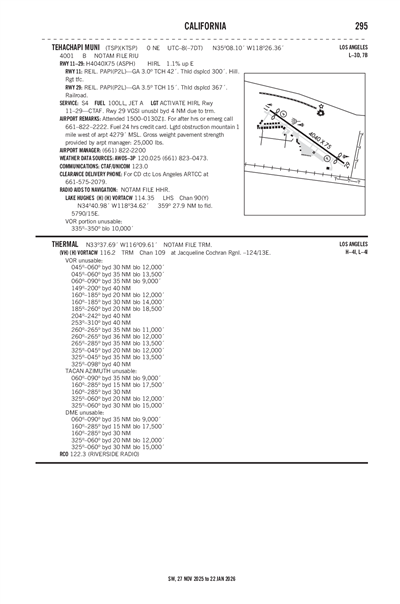

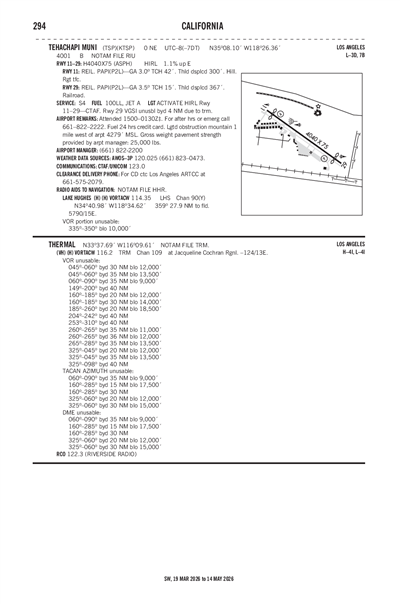

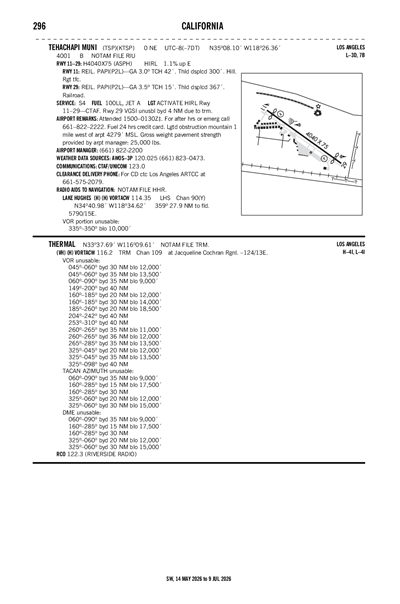

TEHACHAPI MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTSP
TEHACHAPI MUNI
PublicPUB

0 miles NE of TEHACHAPI, CA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 08' 06"N 118° 26' 21"W
4001' MSL
5001' MSL
14E
JET A, 100LL
RANCHO MURIETA (RIU)
LOS ANGELES
LOS ANGELES (ZLA)
11/28/24-12/26/24
KTSP LIFR
4:35 AM PST
Fog
No Clouds
0.25sm
45°F
45°F
30.22"Hg
150° 4kts
AO2
KTSP 231235Z AUTO 15004KT M1/4SM FG 07/07 A3022 RMK AO2

KTSP FBOs

Tehachapi Municipal Airport
UNICOM: 123.0
Phone: (661) 822-2220
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.13 4.30
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3P

AWOS-3P
661-823-0473
120.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KWJF (26nm)
Mon, 12/23 3:59 AM PST
Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST
VFR
4:00 AM PST - 1:00 PM PST
Broken 20,000'
6sm
VRB° 5kts
VFR
1:00 PM PST - 4:00 AM PST
Broken 25,000'
6sm
280° 10kts
KWJF 231159Z 2312/2412 VRB05KT P6SM BKN200
   FM232100 28010KT P6SM BKN250
KTSP
Domestic
12/12/242149Z !RIU 12/081 TSP TWY PARL TWY BTN TWY H AND TWY G CLSD 2412122149-2501081500
12/12/242149Z !RIU 12/080 TSP TWY G, H CLSD 2412122149-2501081200
10/25/240014Z !RIU 10/196 TSP RWY 11/29 N 100FT WIP 2410250014-2501210030
10/23/191709Z !RIU 10/168 TSP RWY 11 PAPI U/S 1910231709-PERM
No
0700-1730
FOR AFTER HRS OR EMERG CALL 661-822-2222
CITY OF TEHACHAPI
115 SOUTH ROBINSON
TEHACHAPI, CA 93581
Phone: 661-822-2200
ASHLEY WHITMORE
115 SOUTH ROBINSON STREET
TEHACHAPI, CA 93561
Phone: (661) 822-2200
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
ACTVT HIRL RY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 11/29

4040 ft. x 75 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 11 Runway 29
True Heading 124°304°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 08' 17"N 35° 07' 55"N
Longitude 118° 26' 42"W 118° 26' 01"W
Elevation 3,958' 4,001'
Threshold Crossing Height 42 ft. AGL 15 ft. AGL
Visual Glide Path Angle 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2LGTD OBSTN/MOUNTAIN/1 MI WEST OF ARPT (4279' MSL).
A110-3FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
TEHACHAPI MUNI (ICAO: KTSP, IATA: TSP) is a public airport located in TEHACHAPI, CA.
