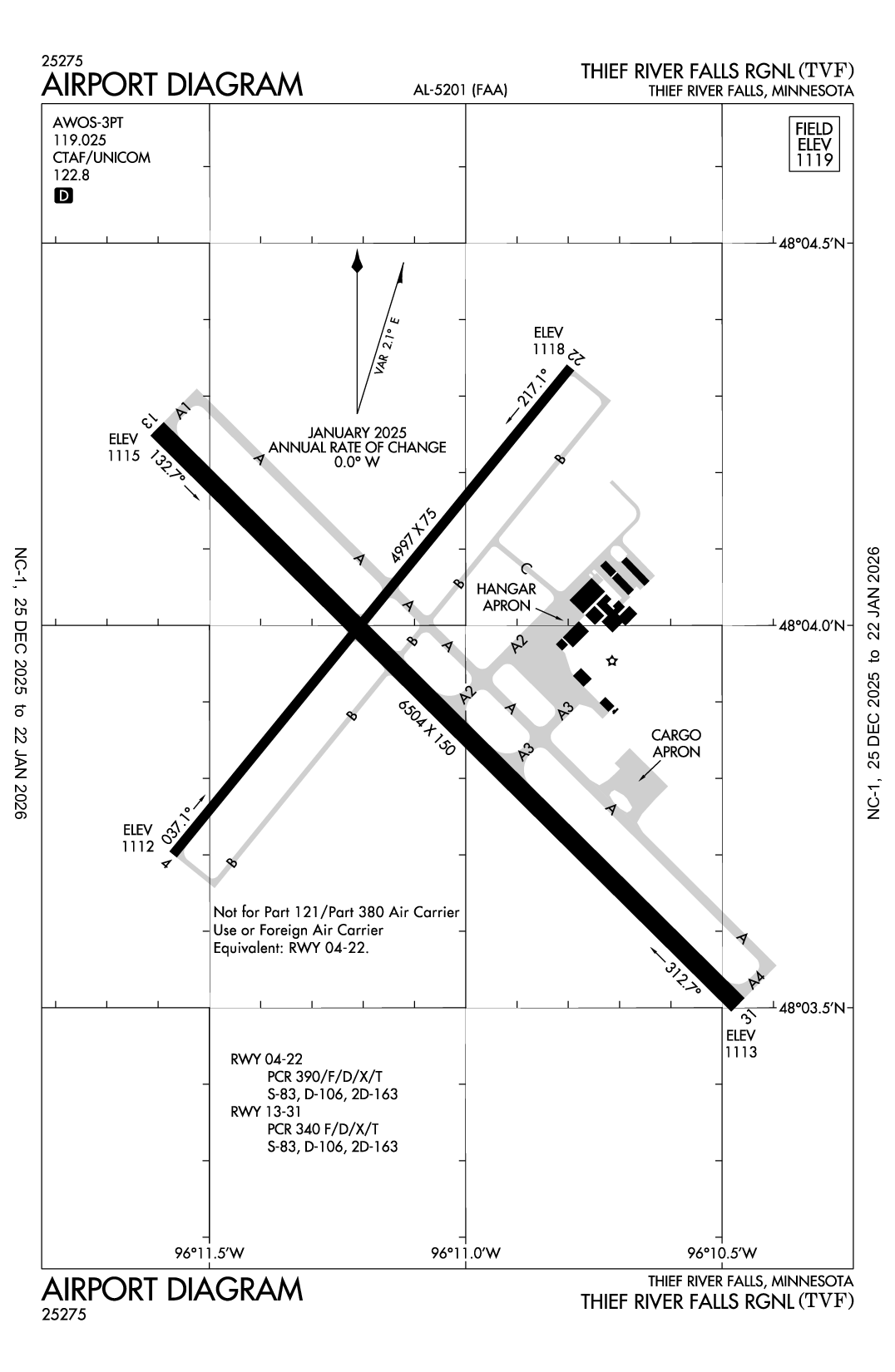

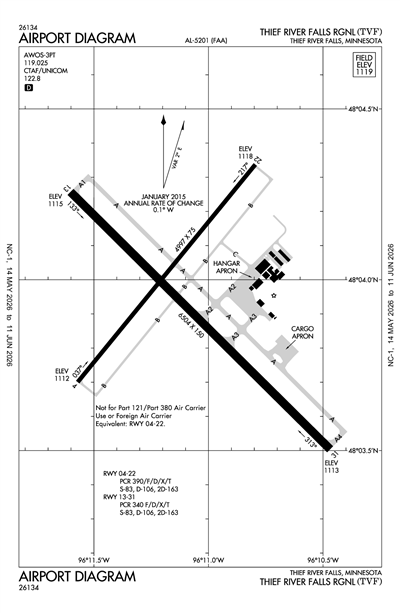

THIEF RIVER FALLS RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTVF
THIEF RIVER FALLS RGNL
PublicPUB

3 miles S of THIEF RIVER FALLS, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
48° 03' 56"N 96° 11' 06"W
1119' MSL
2119' MSL
02E
JET A, JET A (FSII), 100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KTVF VFR
9:56 PM CDT
Few 12,000'
10sm
62°F
50°F
29.96"Hg
160° 7kts
AO2 SLP148 T01670100 57004
KTVF 010256Z AUTO 16007KT 10SM FEW120 17/10 A2996 RMK AO2 SLP148 T01670100 57004
Add Your Business

KTVF FBOs

Promote Listing
Thief River Aviation
UNICOM: 122.8
Phone: (218) 681-5585
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.69
Full Serve 5.59
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
218-681-1918
 119.025

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KTVF
Fri, 5/31 6:20 PM CDT
Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Broken 13,000'
6sm
240° 9kts
VFR
10:00 PM CDT - 9:00 AM CDT
Scattered 12,000'
6sm
200° 9kts
VFR
9:00 AM CDT - 3:00 PM CDT
Few 20,000'
6sm
270° 10kts
VFR
3:00 PM CDT - 7:00 PM CDT
Sky Clear
6sm
290° 8kts
KTVF 312320Z 0100/0124 24009KT P6SM BKN130
   FM010300 20009KT P6SM SCT120
   FM011400 27010KT P6SM FEW200
   FM012000 29008KT P6SM SKC
KTVF
Domestic
12/9/231501Z !TVF 12/020 TVF APRON CARGO RAMP CLSD 2312091501-2406302200
FDC
12/15/231609Z !FDC 3/6550 TVF IAP THIEF RIVER FALLS RGNL, THIEF RIVER FALLS, MN.
RNAV (GPS) RWY 31, ORIG-B...
LNAV/VNAV DA 1437/HAT 323 ALL CATS.TEMPORARY CRANE 1276 MSL 1883FT NW OF APCH END RWY 31 (2022-AGL-9174 TO 9185-NRA).
2312151609-2407151609EST
9/5/231540Z !FDC 3/5672 TVF IAP THIEF RIVER FALLS RGNL, THIEF RIVER FALLS, MN.
ILS OR LOC RWY 31, AMDT 5A...
S-ILS 31 DA 1334/HAT 220 ALL CATS. S-LOC 31 MDA 1500/HAT 386 ALL CATS. CIRCLING CAT A MDA 1580/HAA 461.
FOR INOP ALS, INCREASE S-ILS 31 ALL CATS VISIBILITY TO 7/8 SM AND S-LOC 31
CAT C/D VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE 1276 MSL 1883FT NW OF APCH END RWY 31 (2022-AGL-9174 TO 9185-NRA).
2309051540-2407151540EST
9/5/231540Z !FDC 3/5663 TVF IAP THIEF RIVER FALLS RGNL, THIEF RIVER FALLS, MN.
RNAV (GPS) RWY 13, ORIG-B...
RNAV (GPS) RWY 22, ORIG...
RNAV (GPS) RWY 4, ORIG-A...
CIRCLING CAT A MDA 1580/HAA 461. TEMPORARY CRANE 1276 MSL 2144FT NE OF TVF AIRPORT (2022-AGL-9174-TO 9185-NRA).
2309051540-2407151540EST
5/18/231557Z !FDC 3/8463 TVF IAP THIEF RIVER FALLS RGNL, THIEF RIVER FALLS, MN.
ILS OR LOC RWY 31, AMDT 5A...
ALTERNATE MINIMUMS NA.
2305181557-2505181557EST
No
MON-FRI 0800-1700
SAT-SUN ON CALL
THIEF RIVER FALLS ARPT AUTH
13722 AIRPORT DR, PO BOX 672
THIEF RIVER FALLS, MN 56701-0672
Phone: 218-681-7680
JOSEPH HEDRICK
THIEF RIVER FALLS ARPT AUTH, 13722 AIRPORT DR
THIEF RIVER FALLS, MN 56701-8497
Phone: 218-684-1013
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
TVF
--
ACTVT MALSR RWY 31; REIL RWY 13, 04, & 22; HIRL RWY 13/31; MIRL RWY 04/22 - CTAF. PAPI RWY 13, 31, 04, & 22 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
23
2
0
0
0
0
Major
Major
None
None
Crop Dusting

Runway 04/22

4997 ft. x 75 ft.
ASPH
Good
GRVD
MED
46 /F/D/W/T
--
30,000lbs
--
--
  Runway 04 Runway 22
True Heading 39°219°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 03' 42"N 48° 04' 20"N
Longitude 96° 11' 34"W 96° 10' 48"W
Elevation 1,112' 1,118'
Threshold Crossing Height 34 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 13/31

6504 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
46 /F/D/W/T
75,000lbs
60,000lbs
155,000lbs
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 48° 04' 15"N 48° 03' 30"N
Longitude 96° 11' 36"W 96° 10' 28"W
Elevation 1,115' 1,113'
Threshold Crossing Height 40 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-2BIRDS ON & INVOF ARPT.
A110-3ARPT CONDS NOT MNTD SUN-FRI 2200-0500; FRI 2200-SAT 0600; SAT 1030-1500; SAT 2000-SUN 0600.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5LDG FEES FOR COML ACFT CALL AMGR 218-681-7680 OPTION 7.
THIEF RIVER FALLS RGNL (ICAO: KTVF, IATA: TVF) is a public airport located in THIEF RIVER FALLS, MN.
