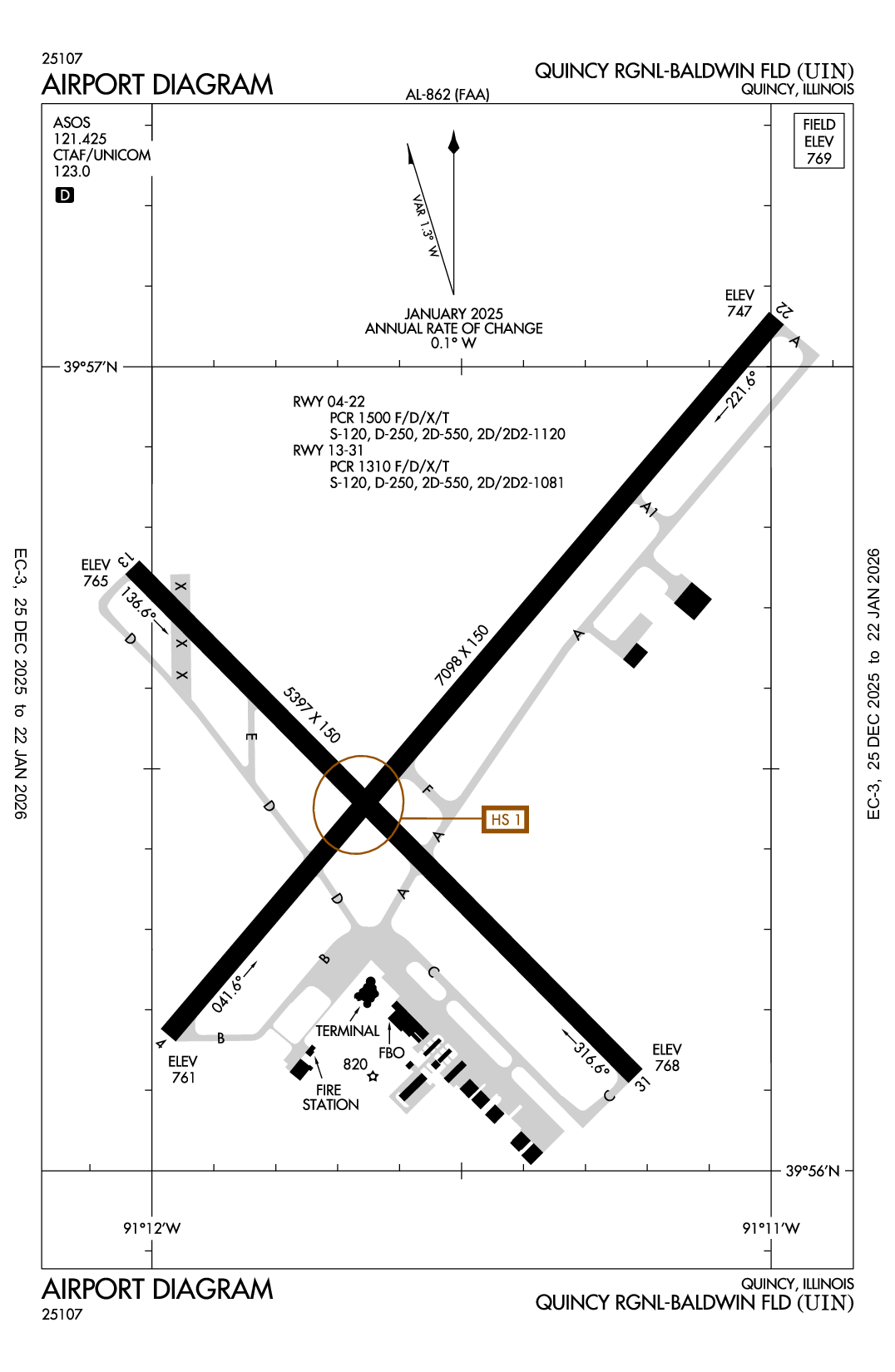

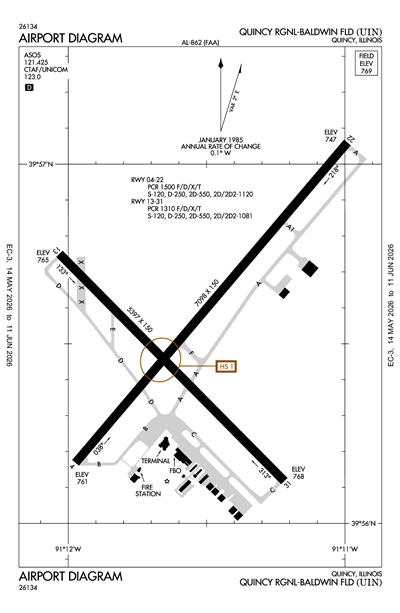

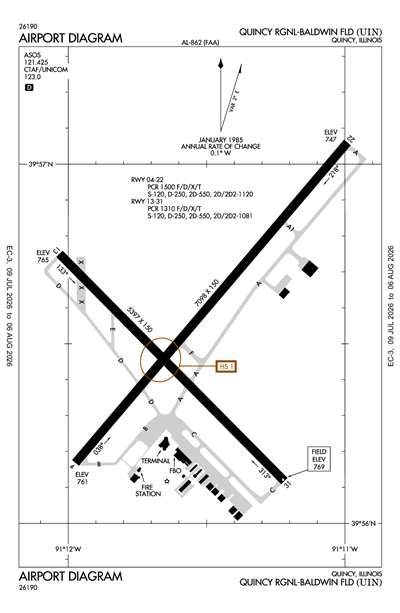

QUINCY RGNL-BALDWIN FLD - Airport Diagram

KUIN

QUINCY RGNL-BALDWIN FLD

PublicPUB

10 miles E of QUINCY, IL

View on Map

Status

Operational

Coordinates

39° 56' 32"N 91° 11' 33"W

Elevation

769' MSL

Pattern Alt

1769' MSL

Mag Variation

02E

Fuel

JET A, 100LL

FSS

SAINT LOUIS (STL)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

11/28/24-12/26/24

KUIN VFR

6:21 AM CST RAW

Overcast 3,200'

Viz

10sm

Temp

42°F

Dew

31°F

Pres

30.05"Hg

Wind

200° 13kts

RMK

AO2 T00561006 $

KUIN 231221Z AUTO 20013KT 10SM OVC032 06/M01 A3005 RMK AO2 T00561006 $

Add Your Business

KUIN FBOs

Quincy Aviation

UNICOM: 123.0

Phone: (217) 885-3353

0 Reviews (Read | Sign In To Write)

Titan

As of 12/19	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.19	6.19	6.29

Fuel Notes

Prices include tax

KUIN Restaurants

Promote Listing

BlueHaven Cafe

Phone: (217) 885-3010

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 123.0 CTAF 123.0

ASOS

217-885-3319

121.425

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

HOT SPOT

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KUIN

RAW

Reported

Mon, 12/23 6:02 AM CST

Valid

Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST

VFR

6:00 AM CST - 10:00 AM CST

Overcast 3,500'
Scattered 2,500'

Viz

6sm

Wind

200° 12kts

MVFR

Temporary 6:00 AM CST - 10:00 AM CST

Broken 2,500'

Viz

N/A

Wind

Calm

MVFR

10:00 AM CST - 1:00 PM CST

Overcast 2,700'

Viz

6sm

Wind

220° 12kts

Gusts 21kts

VFR

1:00 PM CST - 2:00 AM CST

Overcast 3,500'

Viz

6sm

Wind

240° 11kts

Gusts 20kts

MVFR

2:00 AM CST - 6:00 AM CST

Mist

Broken 12,000'

Viz

4sm

Wind

VRB° 3kts

KUIN 231202Z 2312/2412 20012KT P6SM SCT025 OVC035
   TEMPO 2312/2316 BKN025
   FM231600 22012G21KT P6SM OVC027
   FM231900 24011G20KT P6SM OVC035
   FM240800 VRB03KT 4SM BR BKN120

KUIN

Domestic
12/20/241554Z	!UIN 12/076 UIN RWY 22 PAPI U/S 2412201554-2501301800
12/20/241553Z	!UIN 12/075 UIN RWY 04 PAPI U/S 2412201553-2501301800
12/20/241553Z	!UIN 12/074 UIN RWY 04 ALS U/S 2412201553-2501301800
12/20/241552Z	!UIN 12/073 UIN NAV ILS RWY 04 U/S 2412201552-2501301800
12/20/241249Z	!UIN 12/072 UIN AD AP ARFF INDEX A NOT AVBL AND AP CLSD TO AIR CARRIER OPS 2412201249-2412272100
12/20/240016Z	!UIN 12/070 UIN RWY 04/22 SAFETY AREA RUTS SE END 2412200016-2502190300
12/4/240015Z	!UIN 12/009 UIN OBST TOWER LGT (ASR 1277166) 400225.30N0910141.70W (9.6NM NE UIN) 1051.8FT (321.9FT AGL) U/S 2412040015-2503030500
12/1/240828Z	!UIN 12/001 UIN NAV ILS RWY 04 GP U/S 2412010828-2501092000EST
11/28/241244Z	!UIN 11/079 UIN OBST TOWER LGT (ASN 2013-AGL-6870-OE) 395614N0912425W (9.8NM W UIN) 737FT (154FT AGL) U/S 2411281244-2501121244
11/6/241441Z	!UIN 11/026 UIN OBST TOWER LGT (ASR 1009005) 395822.00N0911955.00W (6.7NM WNW UIN) 1546.6FT (803.8FT AGL) U/S 2411061441-2511062359
10/24/240122Z	!UIN 10/031 UIN TWY E SFC PAINTED HLDG PSN SIGNS FADED 2410240122-2412231800
10/24/240121Z	!UIN 10/030 UIN TWY E HLDG PSN MARKINGS FADED 2410240121-2412231800
10/24/240121Z	!UIN 10/029 UIN TWY E CL MARKINGS FADED 2410240121-2412231800
10/24/240120Z	!UIN 10/028 UIN TWY C SFC PAINTED HLDG PSN SIGNS FADED 2410240120-2412231800
10/24/240119Z	!UIN 10/027 UIN TWY D SFC PAINTED HLDG PSN SIGNS FADED 2410240119-2412231800
10/24/240118Z	!UIN 10/026 UIN TWY D HLDG PSN MARKINGS FADED 2410240118-2412231800
10/24/240117Z	!UIN 10/025 UIN TWY D CL MARKINGS FADED 2410240117-2412231800
10/24/240116Z	!UIN 10/024 UIN TWY C HLDG PSN MARKINGS FADED 2410240116-2412231800
10/24/240105Z	!UIN 10/023 UIN TWY C CL MARKINGS FADED 2410240105-2412231800
1/2/241957Z	!UIN 01/001 UIN AIRSPACE SEE ZKC 01/022 HIGH SPEED ACFT AVOIDANCE ADZ 2401021957-2501010600
FDC
12/26/240905Z	!FDC 4/9719 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. LOC BC RWY 22, AMDT 7... RNAV (GPS) RWY 22, AMDT 1... PROCEDURE NA. 2412260905-2508011739EST
12/26/240905Z	!FDC 4/9717 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. ILS OR LOC RWY 4, AMDT 19... NDB RWY 4, AMDT 19... RNAV (GPS) RWY 4, AMDT 1... PROCEDURE NA. 2412260905-2508011739EST
12/19/241918Z	!FDC 4/9009 UIN ODP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A... DEPARTURE PROCEDURE RWY 4, 22 NA. ALL OTHER DATA REMAINS AS PUBLISHED. 2412191918-2507311915EST
12/19/241902Z	!FDC 4/8997 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. ILS OR LOC RWY 4, AMDT 18... LOC BC RWY 22, AMDT 7... NDB RWY 4, AMDT 18... RNAV (GPS) RWY 22, AMDT 1... RNAV (GPS) RWY 4, ORIG--A... PROCEDURE NA. 2412191902-2507311902EST
11/13/241707Z	!FDC 4/3441 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. ILS OR LOC RWY 4, AMDT 18... DISREGARD NOTE: ADF OR DME REQUIRED. NOTE: ADF REQUIRED. 2411131707-2611151706EST
4/15/242050Z	!FDC 4/1205 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. ILS OR LOC RWY 4, AMDT 18... PROFILE NOTE: VGSI AND ILS GLIDEPATH ANGLE NOT COINCIDENT (VGSI ANGLE 3.00/TCH 39). 2404152050-2604152050EST
11/8/231613Z	!FDC 3/9035 UIN IAP QUINCY RGNL-BALDWIN FLD, QUINCY, IL. LOC BC RWY 22, AMDT 7... ALTERNATE MINIMUMS NA. 2311081613-2511051613EST

ATC Tower

Attendance

MON-FRI 0600-2000
SAT 0600-2000
SUN 0600-2000
FOR FUEL ATTENDANT OTR HRS CALL 217-885-3353 OR 217-779-5091. ACFT MAINT TO COORD CALL 217-885-3353.

Owner

CITY OF QUINCY
1645 HWY 104
QUINCY, IL 62305
Phone: 217-885-3285

Manager

BILL LANTZ
1645 HWY 104
QUINCY, IL 62305
Phone: 217-885-3285

FSS

SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF

NOTAM

UIN

Light Schedule

Lights

ACTVT MALSR RWY 04; REIL RWY 22; PAPI RWY 13, 31, 04 & 22; HIRL RWY 04/22; MIRL RWY 13/31 - CTAF. HIRL RWY 04/22 PRESET LOW INTST; TO INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

7098 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,120,000lbs

	Runway 04	Runway 22
True Heading	40°	220°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	39° 56' 10"N	39° 57' 04"N
Longitude	91° 11' 58"W	91° 10' 59"W
Elevation	756'	746'
Threshold Crossing Height	42 ft. AGL	46 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4L
Approach Lights	MALSR
Centerline Lights	No	No
Runway End Identifier Lights		Yes

Runway 13/31

Dimensions

5397 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,081,000lbs

	Runway 13	Runway 31
True Heading	135°	315°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 56' 45"N	39° 56' 07"N
Longitude	91° 12' 02"W	91° 11' 13"W
Elevation	765'	769'
Threshold Crossing Height	33 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-2	FICON ARE NOT MONTRD BTWN THE HRS OF 2100-0600.
A110-3	ARPT WDI OTS INDEFLY.
A110-4	USE CTN; NO LINE OF SIGHT BTWN RWY ENDS DUE TO TOPOGRAPHY AND BLDG OBSTNS; ALL DEP/ARR ACFT USE CTAF 123.0.
A110-7	FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-8	ARFF NOT AVBL 24 HRS. 24 HRS PPR FOR UNSKED ACFT OPS; CTC ARPT MGR 217-885-3285 OR 217-885-3262.
A110-9	RWY 04 IS THE PREFERRED RWY IN CALM WIND CONDITIONS.

QUINCY RGNL-BALDWIN FLD (ICAO: KUIN, IATA: UIN) is a public airport located in QUINCY, IL.
