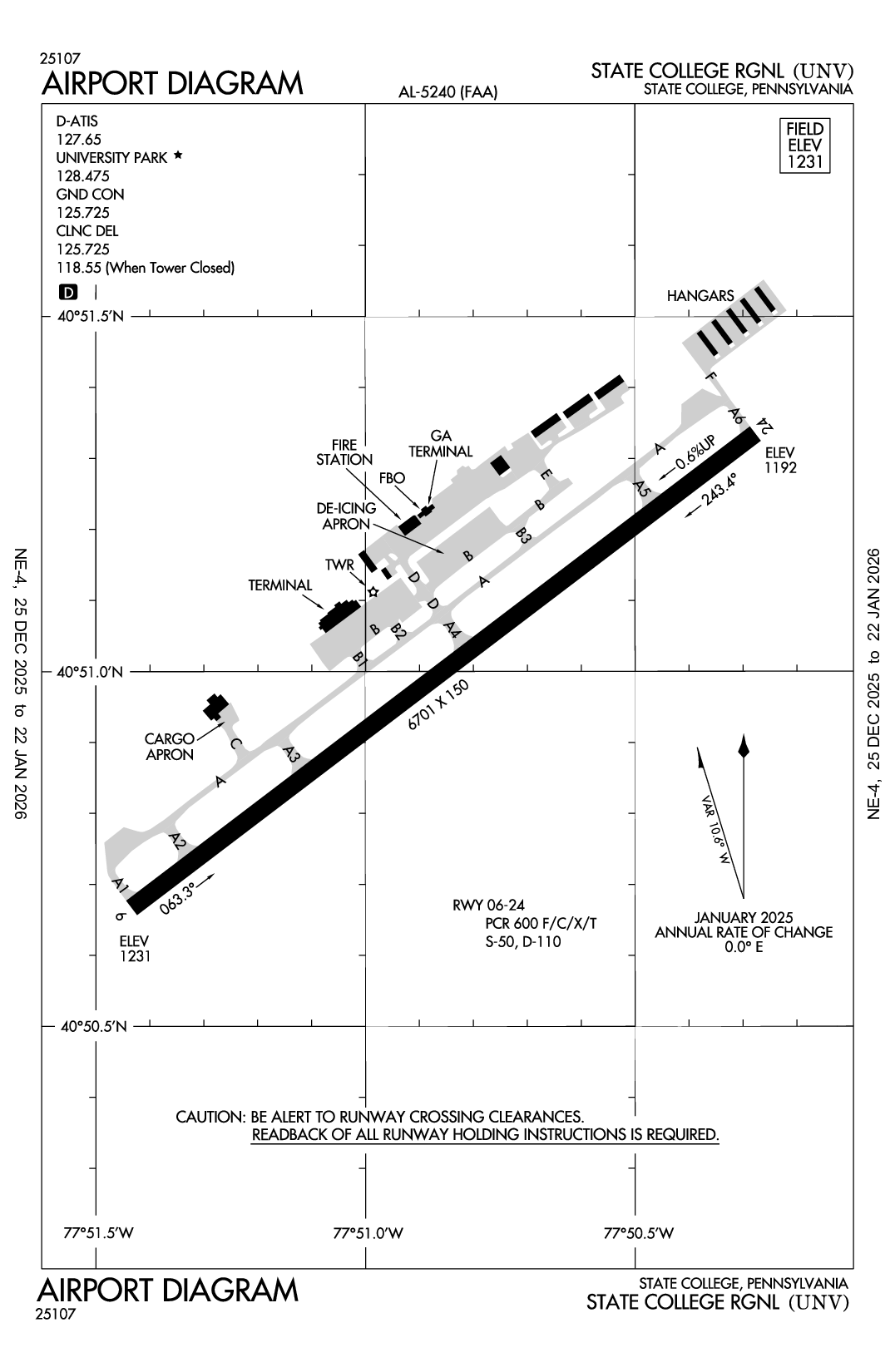

STATE COLLEGE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KUNV
STATE COLLEGE RGNL
PublicPUB

3 miles N of STATE COLLEGE, PA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 51' 00"N 77° 50' 51"W
1231' MSL
2231' MSL
11W
JET A, 100LL
ALTOONA (AOO)
DETROIT
NEW YORK (ZNY)
11/28/24-12/26/24
KUNV VFR
6:53 AM EST
Clear
10sm
5°F
1°F
30.51"Hg
Calm
KUNV 231153Z 00000KT 10SM CLR M15/M17 A3051

KUNV FBOs

Penn State Aviation Center
UNICOM: 122.8
Phone: (814) 865-5511 x3
Other: (814) 865-4042
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/12
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.56
Full Serve 6.86 6.35 6.42
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.475

ATIS

D-ATIS
127.65

AWOS-3

AWOS-3
814-865-8799
127.65

Clearance Delivery

CD/P
125.725

Ground

GND/P
125.725

Tower

LCL/P
128.475

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KUNV
Mon, 12/23 6:28 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Sky Clear
6sm
Calm
VFR
9:00 AM EST - 12:00 AM EST
Scattered 25,000'
6sm
200° 4kts
VFR
12:00 AM EST - 5:00 AM EST
Overcast 10,000'
6sm
220° 3kts
Shear 230° 40kts @ 2000'
MVFR
3:00 AM EST - 4:00 AM EST
Light Snow
Overcast 5,000'
4sm
Calm
MVFR
5:00 AM EST - 7:00 AM EST
Light Snow
Overcast 1,500'
4sm
250° 4kts
Shear 260° 40kts @ 2000'
KUNV 231128Z 2312/2412 00000KT P6SM SKC
   FM231400 20004KT P6SM SCT250
   FM240500 22003KT P6SM OVC100 WS020/23040KT
   PROB30 2408/2409 4SM -SN OVC050
   FM241000 25004KT 4SM -SN OVC015 WS020/26040KT
KUNV
Domestic
11/15/240749Z !UNV 11/010 UNV NAV ILS RWY 24 NOT MNT 2411150749-2501221100
FDC
12/16/242024Z !FDC 4/7533 UNV IAP STATE COLLEGE RGNL,
STATE COLLEGE, PA.
RNAV (GPS) RWY 24, AMDT 2...
CIRCLING CAT C MDA 1980/HAA 749. CIRCLING CAT C VISIBILITY 2 1/4.
ALTERNATE MINIMUMS: STANDARD - CAT C 800-2 1/4, CAT D 1400-3; NA
WHEN LOCAL WEATHER NOT AVAILABLE.
THIS IS RNAV (GPS) RWY 24, AMDT 2A. 2412162024-PERM
12/16/242022Z !FDC 4/7532 UNV IAP STATE COLLEGE RGNL,
STATE COLLEGE, PA.
ILS OR LOC RWY 24, AMDT 10...
CIRCLING CAT C MDA 1980/HAA 749. CIRCLING CAT C VISIBILITY 2 1/4.
CHANGE MISSED APPROACH INSTRUCTION TO READ: CLIMB TO 2600, THEN
CLIMBING LEFT TURN TO 4100 ON HEADING 112, AND PSB VORTAC R-142 TO
RASHE/21.42 DME AND HOLD. ALTERNATE MINIMUMS: ILS: STANDARD - NA
WHEN LOCAL WEATHER NOT AVAILABLE.; LOC: STANDARD - CAT C 800-2 1/4,
CAT D 1400-3, NA WHEN LOCAL WEATHER NOT AVAILABLE.
THIS IS ILS OR LOC RWY 24, AMDT 10A. 2412162022-PERM
Yes
ALL
PENN STATE UNIVERSITY
2535 FOX HILL RD
STATE COLLEGE, PA 16803
Phone: 814-865-4042
BRYAN RODGERS
2535 FOX HILL RD
STATE COLLEGE, PA 16803
Phone: 814-865-4042
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
UNV
--
WHEN ATCT CLSD ACTVT MALSR RWY 24; REIL RWY 06; HIRL RWY 06/24 & TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Minor
Low Pressure
None
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

6701 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

50,000lbs
110,000lbs
--
--
  Runway 06 Runway 24
True Heading 53°233°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 40"N 40° 51' 20"N
Longitude 77° 51' 26"W 77° 50' 17"W
Elevation 1,231' 1,192'
Threshold Crossing Height 45 ft. AGL 55 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1035 FT AGL LGT POLES ON THE N EDGE OF DEICE APN.
A110-11AIR CGO APRN RSTD TO ACFT LESS THAN 12500 LBS.
A110-3ACFT ON EITHER END RWY 06/24 CANNOT BE SEEN ON OTHER END DUE TO RWY GRADE.
A110-4STUDENT TRAINING 2.5 NM NE AT BELLEFONTE ARPT.
A110-5DEICING EQUIP AVBL ON APN ADJ TO TWY B BTN TWYS D & B3.
A110-7(A76) SAWRS.
STATE COLLEGE RGNL (ICAO: KUNV, IATA: UNV) is a public airport located in STATE COLLEGE, PA.
