KVEL
VERNAL RGNL
Public
PUB
1 miles SE of VERNAL, UT
View on
Map
Status
Operational
Coordinates
40° 26' 10"N
109° 30' 41"W
Elevation
5274' MSL
Pattern Alt
6274' MSL
Mag Variation
10E
Fuel
JET A, 100LL
FSS
CEDAR CITY (CDC)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
11/28/24-12/26/24
KVEL
VFR
5:53 AM MST
RAW
Clear
Viz
10sm
Temp
27°F
Dew
19°F
Pres
30.19"Hg
Wind
Calm
RMK
AO2 SLP243 T10281072 $
KVEL 231253Z AUTO 00000KT 10SM CLR M03/M07 A3019 RMK AO2 SLP243 T10281072 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KVEL FBOs
Classic Aviation
UNICOM: 122.7
Phone: (435) 789-8494
Other: (385) 479-2648
0 Reviews
(
Read
|
Sign In To Write
)
Avfuel
As of
12/18
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
5.90
5.17
5.23
Fuel Notes
Prices include tax
Promote Listing
Dinaland Aviation
UNICOM: 122.7
Phone: (435) 789-4612
Other: (435) 261-9000
0 Reviews
(
Read
|
Sign In To Write
)
Phillips 66
As of
12/19
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
Full Serve
5.90
5.17
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
ASOS
ASOS
435-781-1224
118.125
FAA A/FD Pages
FAA A/FD Page

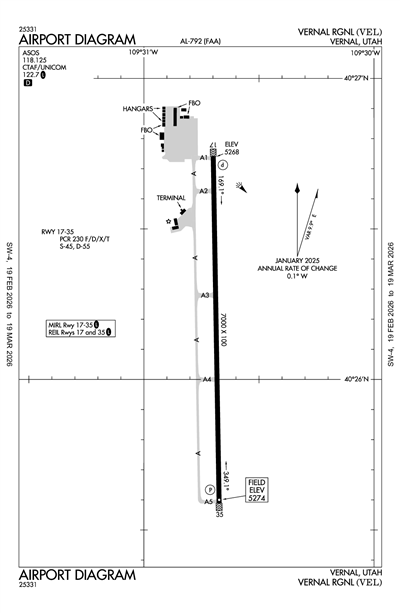

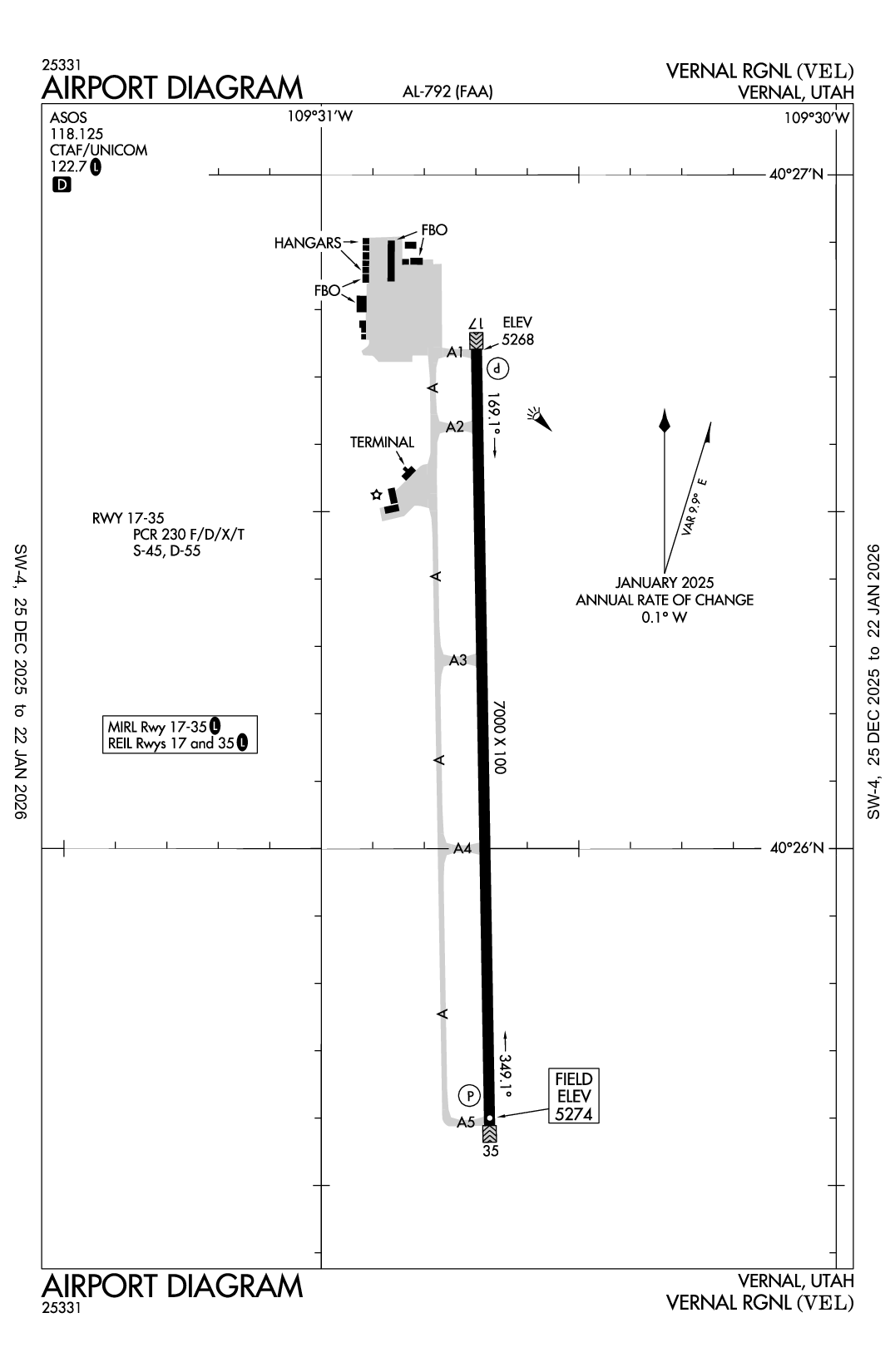

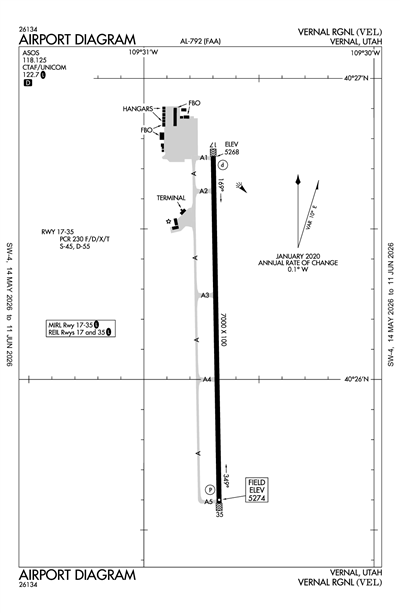

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) Y RWY 35
RNAV (GPS) Z RWY 35
VOR RWY 35
Terminal Area Forecast
KVEL
RAW
Reported
Mon, 12/23 4:23 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 11:00 AM MST
Overcast 12,000'
Broken 10,000'
Viz
6sm
Wind
270° 5kts
VFR
11:00 AM MST - 7:00 PM MST
Overcast 10,000'
Viz
6sm
Wind
120° 7kts
VFR
7:00 PM MST - 5:00 AM MST
Overcast 7,000'
Viz
6sm
Wind
310° 5kts
KVEL 231123Z 2312/2412 27005KT P6SM BKN100 OVC120
FM231800 12007KT P6SM OVC100
FM240200 31005KT P6SM OVC070
KVEL
Domestic
12/20/24
2138Z
!VEL 12/003 VEL RWY 17 PAPI U/S 2412202138-2501102355
5/7/24
1125Z
!VEL 05/001 VEL COM REMOTE COM OUTLET 122.3 U/S 2405071125-2505072000EST
FDC
11/25/24
1552Z
!FDC 4/8490 VEL IAP VERNAL RGNL, VERNAL, UT.
VOR RWY 35, ORIG-B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
VEL VOR/DME UNMONITORED. 2411251552-2507071552EST
ATC Tower
No
Attendance
DAWN-DUSK
AFT HR OPS CTC 435-789-8494 OR 435-261-9000.
Owner
UINTAH CO AND VERNAL CITY
152 E 100 N.
VERNAL, UT 84078
Phone: (435) 781-0770
Manager
KEN CAMPBELL
730 EAST 800 S.
VERNAL, UT 84078
Phone: (435) 789-3400
FSS
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
NOTAM
VEL
Light Schedule
--
Lights
ACTVT REIL RWY 17 & 35; MIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
High & Low Pressure
Other Services
Air Freight
Pilot Instruction
Aircraft Rental
Runway 17/35
Dimensions
7000 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
18 /F/C/X/T
Single Wheel
45,000lbs
Double Wheel
55,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
179°
359°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
40° 26' 44"N
40° 25' 35"N
Longitude
109° 30' 42"W
109° 30' 40"W
Elevation
5,268'
5,274'
Threshold Crossing Height
48 ft. AGL
48 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
RWY 07/25 DECOMMISSIONED.
A110-3
FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-4
COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -26C.
VERNAL RGNL (ICAO: KVEL, IATA: VEL) is a public airport located in VERNAL, UT.
