KVHN

CULBERSON COUNTY

PublicPUB

3 miles NE of VAN HORN, TX

View on Map

Status

Operational

Coordinates

31° 03' 28"N 104° 47' 02"W

Elevation

3957' MSL

Pattern Alt

4957' MSL

Mag Variation

10E

Fuel

JET A-1+, 100LL

FSS

ALBUQUERQUE (ABQ)

Sectional

EL PASO

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

5/16/24-6/13/24

KVHN VFR

9:35 PM CDT RAW

Clear

Viz

10sm

Temp

87°F

Dew

41°F

Pres

29.94"Hg

Wind

100° 7kts

RMK

AO2 T03070052

KVHN 010235Z AUTO 10007KT 10SM CLR 31/05 A2994 RMK AO2 T03070052

Add Your Business

KVHN FBOs

Promote Listing

West Texas Aviation

Phone: (432) 283-2237

Other: (432) 283-2920

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/28	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.14		5.40

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3PT

432-283-2418

119.925

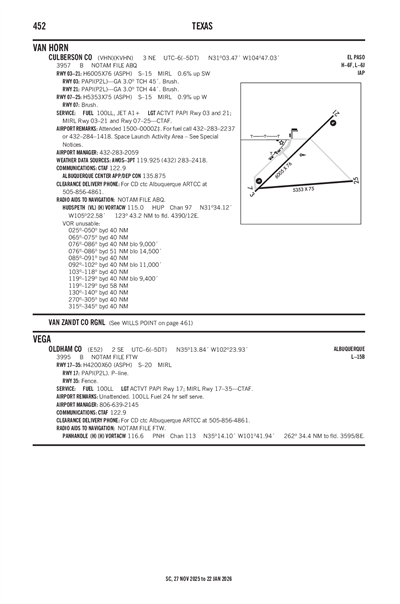

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 21

Terminal Area Forecast

KPEQ (68nm)

RAW

Reported

Fri, 5/31 6:23 PM CDT

Valid

Fri, 5/31 7:00 PM CDT - Sat, 6/1 7:00 PM CDT

VFR

7:00 PM CDT - 12:00 AM CDT

Few 6,000'

Viz

6sm

Wind

110° 12kts

Gusts 20kts

VFR

12:00 AM CDT - 9:00 AM CDT

Few 20,000'

Viz

6sm

Wind

100° 12kts

VFR

9:00 AM CDT - 3:00 PM CDT

Scattered 20,000'
Scattered 7,000'

Viz

6sm

Wind

100° 15kts

Gusts 25kts

VFR

3:00 PM CDT - 7:00 PM CDT

Thunderstorm in vicinity

Broken 20,000'
Scattered 6,000'

Viz

6sm

Wind

110° 15kts

Gusts 25kts

KPEQ 312323Z 0100/0124 11012G20KT P6SM FEW060
   FM010500 10012KT P6SM FEW200
   FM011400 10015G25KT P6SM SCT070 SCT200
   FM012000 11015G25KT P6SM VCTS SCT060CB BKN200

KVHN

Domestic
12/23/230002Z	!ABQ 12/214 VHN AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF VHN SFC-13000FT DLY SS-SR 2312230002-2411010011

ATC Tower

Attendance

0900-1800

Owner

CULBERSON COUNTY
501 W. BROADWAY, PO BOX 927
VAN HORN, TX 79855
Phone: 915-283-2058

Manager

JUDGE CARLOS URIAS
501 W. BROADWAY, BOX 927
VAN HORN, TX 79855
Phone: 432-283-2059

FSS

ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF

NOTAM

ABQ

Light Schedule

Lights

ACTVT PAPI RWY 03 & 21; MIRL RWY 03/21 & RWY 07/25 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 03/21

Dimensions

6005 ft. x 76 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

15,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	45°	225°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	31° 03' 15"N	31° 03' 57"N
Longitude	104° 47' 29"W	104° 46' 40"W
Elevation	3,956'	3,918'
Threshold Crossing Height	45 ft. AGL	44 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07/25

Dimensions

5353 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

15,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	84°	264°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	31° 03' 17"N	31° 03' 22"N
Longitude	104° 47' 29"W	104° 46' 28"W
Elevation	3,957'	3,911'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1

FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.

CULBERSON COUNTY (ICAO: KVHN, IATA: VHN) is a public airport located in VAN HORN, TX.
