JOSEPH A HARDY CONNELLSVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KVVS
JOSEPH A HARDY CONNELLSVILLE
PublicPUB

5 miles SW of CONNELLSVILLE, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 57' 33"N 79° 39' 27"W
1264' MSL
2264' MSL
08W
JET A, 100LL
ALTOONA (AOO)
CINCINNATI
CLEVELAND (ZOB)
2/20/25-3/20/25
KVVS VFR
10:55 AM EDT
Clear
10sm
40°F
22°F
30.04"Hg
220° 12kts
Gusts 15kts
AO2 T00461053
KVVS 091455Z AUTO 22012G15KT 10SM CLR 05/M05 A3004 RMK AO2 T00461053
Add Your Business

KVVS FBOs

Promote Listing
Connellsville Airport
UNICOM: 122.8
Phone: (724) 626-1610
Other: (724) 628-2276
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 3/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.15
Full Serve 6.25 5.50 5.55
Fuel Notes
Prices include tax

KVVS Aircraft Service & Maintenance

Promote Listing
Air Travel Management LLC
Phone: (866) 945-5359
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3P

AWOS-3P
724-626-8745
 133.325

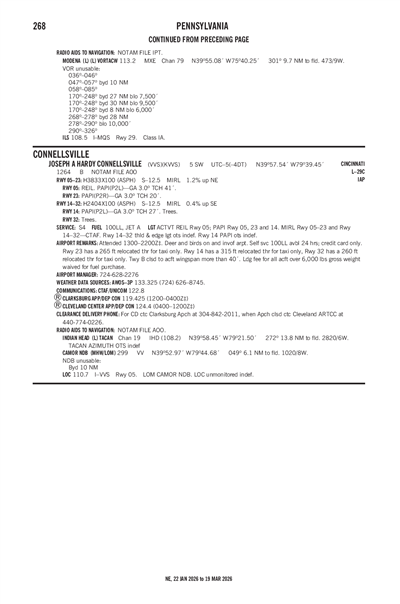

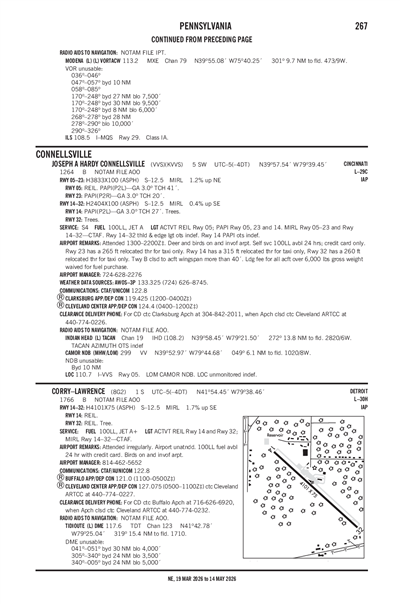

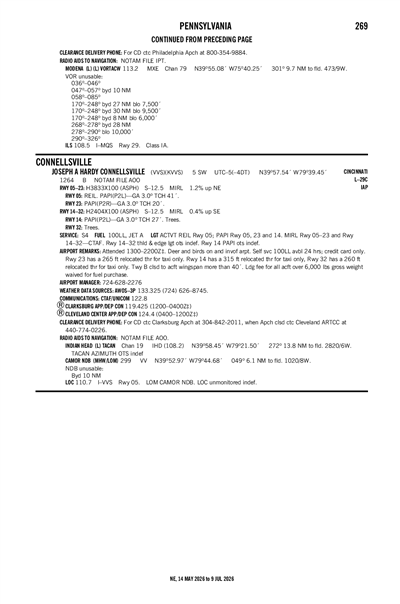

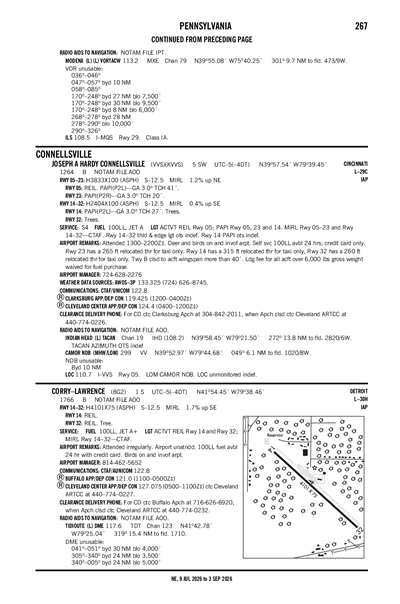

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMGW (22nm)
Sun, 3/9 7:20 AM EDT
Sun, 3/9 8:00 AM EDT - Mon, 3/10 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Scattered 25,000'
6sm
220° 7kts
VFR
10:00 AM EDT - 7:00 PM EDT
Scattered 25,000'
6sm
240° 8kts
Gusts 16kts
VFR
7:00 PM EDT - 8:00 AM EDT
Sky Clear
6sm
230° 6kts
KMGW 091120Z 0912/1012 22007KT P6SM SCT250
   FM091400 24008G16KT P6SM SCT250
   FM092300 23006KT P6SM SKC
KVVS
Domestic
3/2/250213Z !AOO 03/009 VVS OBST TOWER LGT (ASR 1228079) 394657.30N0794206.20W (10.9NM S VVS) 3042.0FT (270.0FT AGL) U/S 2503020213-2504020400
2/28/252208Z !AOO 02/527 VVS OBST TOWER LGT (ASR 1027986) 394639.20N0794210.90W (11.2NM S VVS) 2981.6FT (311.7FT AGL) U/S 2502282208-2505282359
11/13/242023Z !AOO 11/108 VVS TWY F WEST OF TWY E CLSD 2411132023-2503312359
FDC
2/25/251502Z !FDC 5/6521 VVS IAP JOSEPH A HARDY CONNELLSVILLE, CONNELLSVILLE, PA.
RNAV (GPS) RWY 5, ORIG-C...
LNAV MDA 1660/HAT 406; VISIBILITY CAT C 1 1/8SM.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MGW ALTIMETER SETTING AND INCREASE LPV DA TO 1559 FEET AND ALL VISIBILITIES 1/8 SM; INCREASE LNAV/VNAV DA TO 1579 FEET AND VISIBILITIES 1/8 SM; INCREASE ALL MDA 60 FEET AND LNAV CAT C VISIBILITY 1/4 SM.
2502251502-2510071502EST
1/15/252019Z !FDC 5/3947 VVS IAP JOSEPH A HARDY CONNELLSVILLE, CONNELLSVILLE, PA.
LOC RWY 5, AMDT 4D...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MGW VOR OUT OF SERVICE. 2501152019-2701152019EST
No
0800 - 1700
FAYETTE COUNTY AIRPORT AUTHORITY
988 SKY DRIVE
LEMONT FURNACE, PA 15456
Phone: 724-628-2276
JOHN NECKERAUER
988 SKY DRIVE
LEMONT FURNACE, PA 15456
Phone: 724-628-2276
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
ACTVT REIL RWY 05; PAPI RWY 05, 23 & 14. MIRL RWY 05/23 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Ambulance
Aircraft Rental

Runway 05/23

3833 ft. x 100 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 41°221°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 39° 57' 24"N 39° 57' 53"N
Longitude 79° 39' 44"W 79° 39' 12"W
Elevation 1,220' 1,264'
Threshold Crossing Height 41 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

2404 ft. x 100 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 131°311°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 39° 57' 30"N 39° 57' 15"N
Longitude 79° 39' 36"W 79° 39' 12"W
Elevation 1,228' 1,236'
Threshold Crossing Height 27 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RWY 23 HAS A 265 FT RELOCATED THR FOR TAXI ONLY. RWY 14 HAS A 315 FT RELOCATED THR FOR TAXI ONLY, RWY 32 HAS A 260 FT RELOCATED THR FOR TAXI ONLY.
A110-3DEER & BIRDS ON & INVOF ARPT.
A110-4TWY B CLSD TO ACFT WITH WINGSPAN MORE THAN 40 FT.
A110-6FOR CD CTC CLARKSBURG APCH AT 304-842-2011, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0226.
A110-7RWY 14/32: CLSD SS TO SR.
JOSEPH A HARDY CONNELLSVILLE (ICAO: KVVS, IATA: VVS) is a public airport located in CONNELLSVILLE, PA.
