BARROW COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KWDR
BARROW COUNTY
PublicPUB

3 miles E of WINDER, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 58' 58"N 83° 40' 02"W
934' MSL
1934' MSL
05W
JET A (FSII), 100LL
MACON (MCN)
ATLANTA
ATLANTA (ZTL)
12/26/24-1/23/25
KWDR VFR
11:15 AM EST
Clear
10sm
27°F
9°F
30.49"Hg
Calm
AO2 P0001
KWDR 221615Z AUTO 00000KT 10SM CLR M03/M13 A3049 RMK AO2 P0001
Add Your Business

KWDR FBOs

Promote Listing
Romanair
UNICOM: 123.0
Phone: (770) 867-4001
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 1/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.35
Full Serve 5.95 4.85
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).
Fuel Hours
Avgas self service available 24/7. After hours jet fuel available upon request.

KWDR Aircraft Service & Maintenance

Promote Listing
Georgia Avionics Inc.
Phone: (770) 867-0002
Fax: (770) 867-1212
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
770-868-0642
 118.575

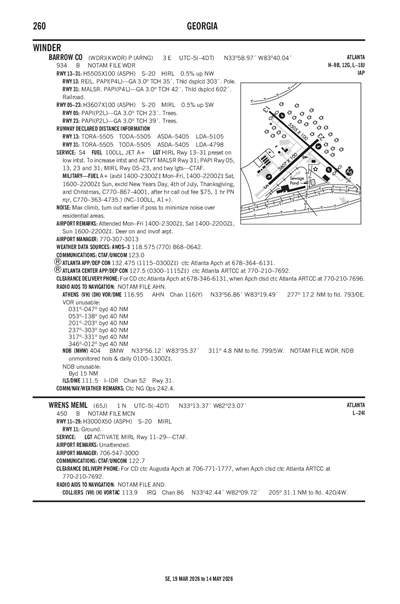

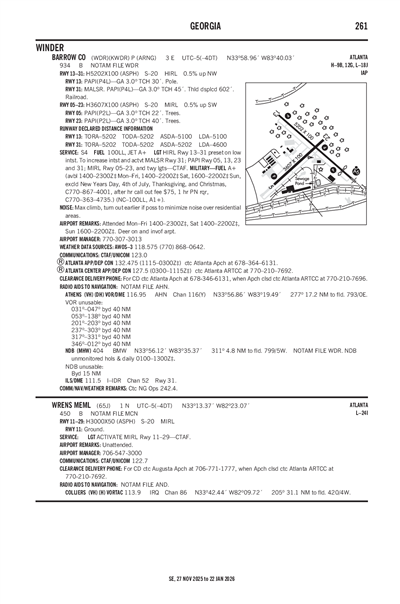

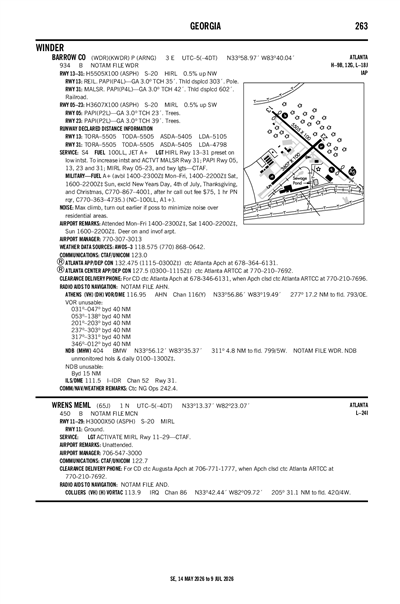

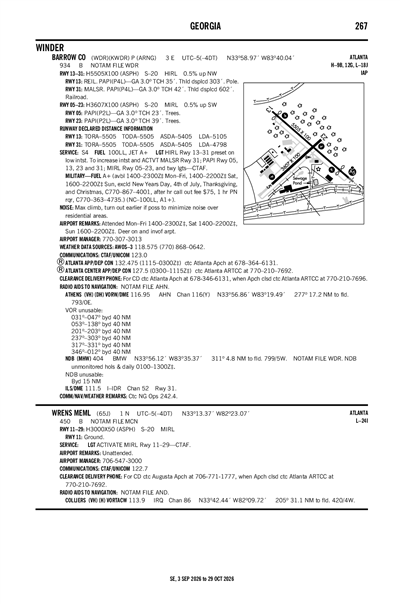

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAHN (17nm)
Wed, 1/22 6:22 AM EST
Wed, 1/22 7:00 AM EST - Thu, 1/23 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Scattered 3,500'
6sm
350° 4kts
VFR
9:00 AM EST - 5:00 PM EST
Few 25,000'
6sm
040° 5kts
VFR
5:00 PM EST - 1:00 AM EST
Sky Clear
6sm
110° 3kts
VFR
1:00 AM EST - 5:00 AM EST
Few 20,000'
6sm
Calm
VFR
5:00 AM EST - 7:00 AM EST
Broken 6,000'
Scattered 2,500'
6sm
Calm
KAHN 221122Z 2212/2312 35004KT P6SM SCT035
   FM221400 04005KT P6SM FEW250
   FM222200 11003KT P6SM SKC
   FM230600 00000KT P6SM FEW200
   FM231000 00000KT P6SM SCT025 BKN060
KWDR
Domestic
1/21/252120Z !WDR 01/014 WDR APRON ALL FICON DRY SN OVER ICE OBS AT 2501212120. 2501212120-2501222120
1/21/252120Z !WDR 01/013 WDR TWY ALL FICON DRY SN OVER ICE OBS AT 2501212120. 2501212120-2501222120
1/21/252118Z !WDR 01/012 WDR RWY 13/31 CLSD EXC HEL OPS 2501212118-2501222116
1/21/252117Z !WDR 01/011 WDR RWY 05/23 CLSD EXC HEL OPS 2501212117-2501222116
1/15/251659Z !WDR 01/010 WDR OBST TOWER LGT (ASR 1201933) 335645.20N0833244.30W (6.4NM ESE WDR) 1125.0FT (256.9FT AGL) U/S 2501151659-2501310500
10/8/241725Z !WDR 10/004 WDR RWY 05 PAPI UNUSABLE 2410081725-2504082111EST
9/16/241540Z !WDR 09/007 WDR RWY 23 PAPI UNUSABLE 2409161540-2503172111EST
9/16/241539Z !WDR 09/006 WDR RWY 31 PAPI UNUSABLE 2409161539-2503172111EST
11/19/211421Z !WDR 11/005 WDR NAV BMW NDB U/S 2111191421-PERM
11/20/181813Z !WDR 11/014 WDR RWY 05/23 CHANGED TO 3610FT. DECLARED DIST: RWY 05
TORA 3610FT TODA 3610FT ASDA 3610FT LDA 3610FT. RWY 23 TORA 3610FT
TODA 3610FT ASDA 3610FT LDA 3610FT. 1811201813-PERM
FDC
8/5/241615Z !FDC 4/3239 WDR IAP BARROW COUNTY, WINDER, GA.
ILS OR LOC RWY 31, ORIG-F...
ILS DA NA ALL CATS. NOTE: CIRCLING RWY 5, 13, 23 NA AT NIGHT.
DISREGARD NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 45).
2408051615-2608051612EST
5/22/231353Z !FDC 3/9682 WDR IAP BARROW COUNTY, WINDER, GA.
NDB RWY 31, AMDT 9E...
NOTE: CIRCLING RWY 5, 13, 23 NA AT NIGHT.
2305221353-2505221353EST
5/22/231353Z !FDC 3/9680 WDR IAP BARROW COUNTY, WINDER, GA.
RNAV (GPS) RWY 23, ORIG-D...
LNAV MDA 1340/HAT 411 ALL CATS. NOTE: CIRCLING RWY 5, 13, 23 NA AT NIGHT.
2305221353-2505221353EST
5/22/231353Z !FDC 3/9678 WDR IAP BARROW COUNTY, WINDER, GA.
RNAV (GPS) RWY 31, AMDT 1E...
LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS. NOTE: CIRCLING RWY 5, 13, 23 NA AT NIGHT.
2305221353-2505221353EST
5/22/231353Z !FDC 3/9675 WDR IAP BARROW COUNTY, WINDER, GA.
RNAV (GPS) RWY 13, AMDT 1C...
LNAV MDA 1380/HAT 447 ALL CATS. NOTE: CIRCLING RWY 5, 13, 23 NA AT NIGHT.
2305221353-2505221353EST
No
M-F 0900-1800
SAT 0900-1700
SUN 1100-1700
BARROW COUNTY ARPT AUTH.
841 RONALD WOOD ROAD
WINDER, GA 30680
Phone: 770-307-3013
WANDA MITCHELL
841 RONALD WOOD RD
WINDER, GA 30680
Phone: 770-307-3013
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
WDR
--
HIRL RWY 13/31 PRESET LOW INTST; TO INCR INTST AND ACTVT MALSR RWY 31; PAPI RWYS 05, 23, 13, & 31; MIRL RWY 05/23; AND TWY LGTS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 05/23

3607 ft. x 100 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 46°226°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 58' 40"N 33° 59' 05"N
Longitude 83° 40' 23"W 83° 39' 52"W
Elevation 934' 916'
Threshold Crossing Height 22 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

5202 ft. x 100 ft.
ASPH
Good
NONE
HIGH

20,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 129°309°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 33° 59' 17"N 33° 58' 45"N
Longitude 83° 40' 22"W 83° 39' 34"W
Elevation 933' 908'
Threshold Crossing Height 30 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-1DEER ON AND INVOF ARPT.
A110-2CTC NG OPS 242.4.
A110-3FOR CD CTC ATLANTA APCH AT 678-346-6131, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7696.
A110-4MAX CLIMB, TURN OUT EARLIER IF POSS TO MINIMIZE NOISE OVER RESIDENTIAL AREAS.
BARROW COUNTY (ICAO: KWDR, IATA: WDR) is a public airport located in WINDER, GA.
