KXNO
NORTH AF AUX
Private
PVT
View on
Map
Status
Operational
Coordinates
33° 36' 34"N
81° 04' 52"W
Elevation
321' MSL
Pattern Alt
1321' MSL
Mag Variation
07W
Fuel
None Listed
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
11/28/24-12/26/24
KXNO
VFR
7:55 AM EST
RAW
Clear
Viz
10sm
Temp
27°F
Dew
20°F
Pres
30.51"Hg
Wind
020° 8kts
RMK
AO2 SLP338 T10271067 $
KXNO 231255Z AUTO 02008KT 10SM CLR M03/M07 A3051 RMK AO2 SLP338 T10271067 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KXNO FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

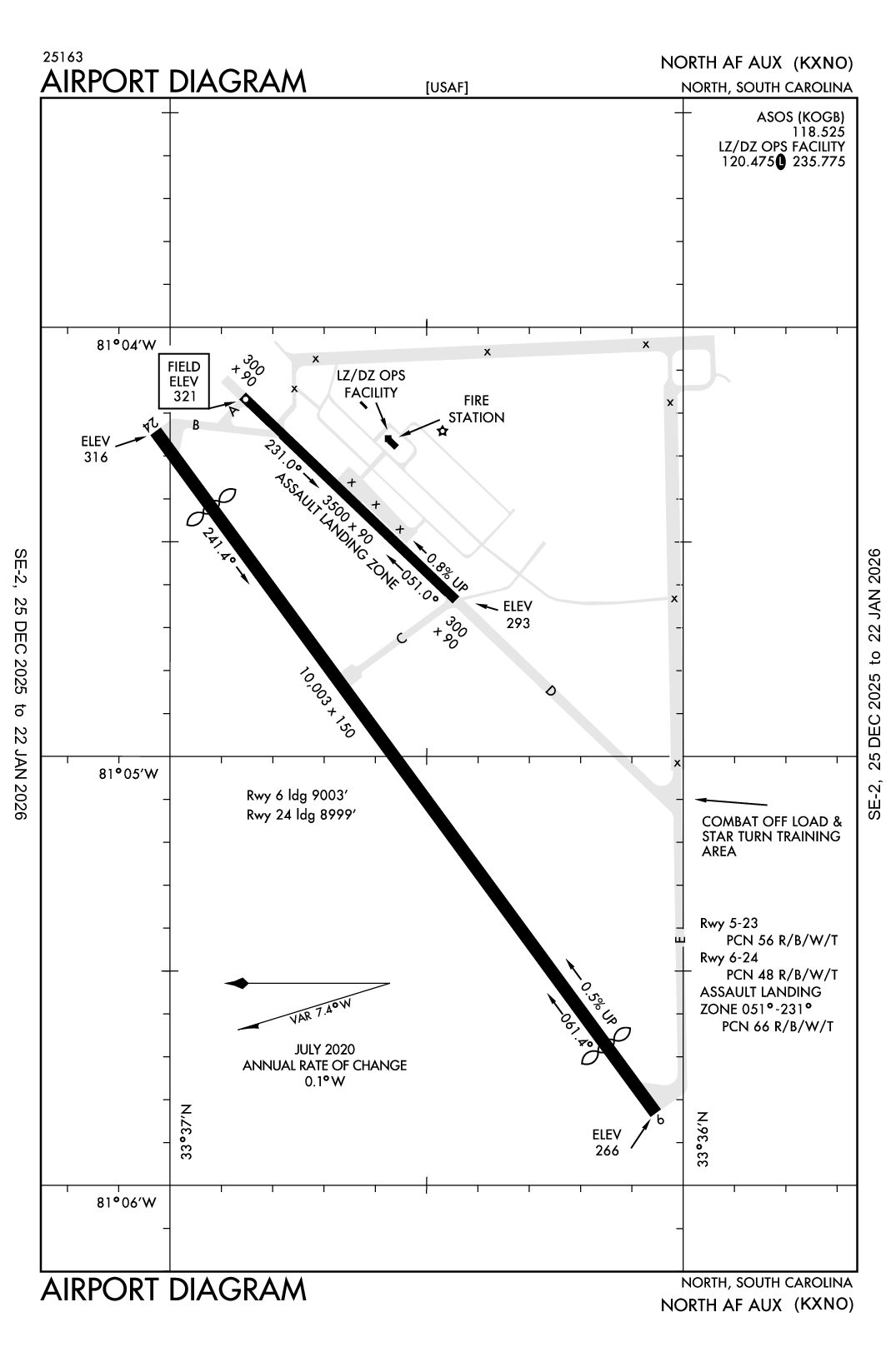

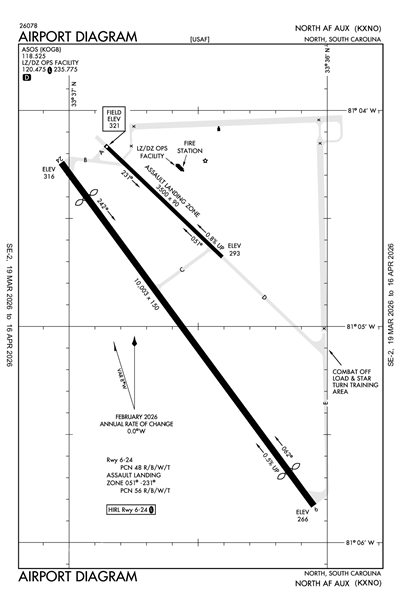

AIRPORT DIAGRAM
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
VOR OR TACAN-A
Terminal Area Forecast
KOGB (14nm)
RAW
Reported
Mon, 12/23 6:20 AM EST
Valid
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Sky Clear
Viz
6sm
Wind
040° 4kts
VFR
9:00 AM EST - 6:00 PM EST
Sky Clear
Viz
6sm
Wind
050° 9kts
VFR
6:00 PM EST - 1:00 AM EST
Broken 10,000'
Broken 5,000'
Viz
6sm
Wind
VRB° 4kts
MVFR
1:00 AM EST - 7:00 AM EST
Broken 2,500'
Viz
6sm
Wind
010° 6kts
KOGB 231120Z 2312/2412 04004KT P6SM SKC
FM231400 05009KT P6SM SKC
FM232300 VRB04KT P6SM BKN050 BKN100
FM240600 01006KT P6SM BKN025
KXNO
Military
12/26/24
1430Z
AERODROME
CLOSED
12/24/24
1430Z
AERODROME
CLOSED
ATC Tower
No
Attendance
MON-THU 1430-0900
FRI 1430-2100
SAT-SUN CLSD
Z++.
Z++.
CLSD FED HOLIDAYS.
Owner
USAF
JB CHARLESTON
CHARLESTON AFB, SC 29404
Phone: 843-963-3028
Manager
437 OSS BASE OPERATIONS
NORTH AF AUX
NORTH, SC 29112
Phone: 843-963-3028
FSS
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
NOTAM
CHS
Light Schedule
--
Lights
ACTVT HIRL RWY 06/24 - 120.475.
ROTG BCN OFF DUR LGT OUT TRNG.
Beacon
N/A
Wind Indicator
No
Segmented Cir.
No
Landing Fee
No
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 051/231
Dimensions
3500 ft. x 90 ft.
Surface Type
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
Pavement Class
66 /R/B/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 051
Runway 231
True Heading
44°
224°
Traffic Pattern
Markings
Markings Condition
Latitude
33° 36' 27"N
33° 36' 52"N
Longitude
81° 04' 38"W
81° 04' 10"W
Elevation
293'
321'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 06/24
Dimensions
10003 ft. x 150 ft.
Surface Type
Surface Cond
ASPH
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
63 /R/B/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
53°
233°
Traffic Pattern
Markings
Markings Condition
Latitude
33° 36' 03"N
33° 37' 02"N
Longitude
81° 05' 50"W
81° 04' 15"W
Elevation
266'
316'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-14
REMARKS-RSTD TO OPR RSTD DUR BIRD WATCH COND MOD (TKOF OR LDG PERMS ONLY WHEN DEP/ARR RTE AVOID IDENT BIRD ACT, NO LCL IFR/VFR TFC PAT ATC) AND SEVERE (TKOF AND LDG PROH WO OG/GC APVL), CTC LZ/DZ OPS FAC FOR CURRENT BIRD WATCH COND. MIN 2 WK PRIOR COORD RQR FOR ALL USERS.
A110-15
NS ABTMT: OVFT OF NORTH, SC PROH.
A110-16
RSTD: TWY DELTA CLSD DURING BOX-IN-ONE OPS TO ALZ RWY 23.
A110-17
RSTD: RWY 06 & 24 TKOF DIST AVBL 9000 FT, LDG DIST AVBL 8000 FT.
A110-18
RWY COND CODE (RWYCC) NOT RPTD.
A110-19
MISC: AN/FMQ-19 AUTOMATED OBERSVING SYS IN USE, NOT AUGMENTED BY HUMAN OBSN. PMSV RDO UNAVBL. PMSV/PHONE PATCH AVBL THRU 628 CP DSN 673-8400 C843-963-8400. MIL WX ADVSY/WNG/FCST UPDATES AVBL O/R VIA 437OSSS/OSW DSN 673-3016 C843-963-3016 DUR OPR HR 1100-0100Z++ MON-THU AND 100-2200Z++ FRI; CLSD WKEND, HOL, AND DOWN DAYS. MSN WX SPT FOR AIRCREW AVBL VIA THE 26 OWS/BARKSDALE AFB, DSN 331-2651 OR C318-529-2651 DUR MIL WX FLT CLOSURE HR.
A110-20
CAUTION: ALZ RWY 05/23 NO DIST MKR PANELS.
A110-22
CAUTION: MIL NVD OPS MAY BE CONDUCTED IN VCNTY OF AFLD ANYTIME BTN SS AND SR.
A110-23
MISC: IF UNABLE TO CTC XNO LZ/DZ OPS FACILITY ON UHF/VHF CTC VIA FONE C843-670-6664.
A110-24
REMARKS-RSTD - ALL AIRCREWS WILL CTC LZ/DZ ON 120.475/ 235.775 PRIOR TO 5 NM FROM NORTH AF AUX. LZ/DZ OPS FAC OPR 1430-0900Z ++ MON-THU; OPR 1430-2100++ FRI. CLSD SAT-SUN & FED HOL.
A110-25
COMM/NAV/WEATHER REMARKS: ASOS 118.525 LCTD AT ORANGEBURG MUNI (KOGB).
A110-26
LZ/DZ OPS FAC LTD TO ADVSY SVC ONLY, NO ATC SVCS PRVDD, AIRCREWS WILL CTC COLUMBIA APP TO REQ/ACTVT IFR CLNC.
A110-27
CAUTION: AERODROME ARFF AT REDUCED LVL OF SVC, USAF CAT 4 DUE TO VEH SHORTAGE, 6800 GAL AVBL.
A110-28
FOR CD CTC COLUMBIA APCH AT 803-822-5242 OR 803-822-5040.
A110-29
RSTD: RWY 06-24 DEP: 9000 FT AVBL. BE AB PRIOR TO OPPOSITE END DSPLCD THR. DO NOT USE OPPOSITE END DSPLCD THR DIST FOR TKOF COMPUTATIONS.
A110-3
SEE FLIP AP/1 SUPPLRY ARPT RMK.
A110-4
CAUTION: INTS HVY MIL JET AND MISC ACFT EXCTNG NMRS CARGO AND PERS DROPS, HI-SPEED LO-LEVEL FORMATION FLT, AND AIRLAND OPR. RWY 06-24 NW TREE LINE 750 FT FR RWY CNTRLN.
A110-5
CAUTION: RWY 06-24 LARGE DITCH 350 FT FR RWY CNTRLN AT MIDFIELD ON NW SIDE RWY. INTS GND TRNG ON RSVN. RWY 05-23 USED AS ASSAULT LDG ZONE (ALZ) 3500 FT X 90 FT.
A110-6
RSTD: POC IS CHARLESTON AFB, 437 OSS/OSO, DSN 673-5554, C843-963-5554. ALL AIRCREWS WILL CTC NORTH DZ ON 120.75 OR 235.775 PRIOR TO 5 NM TO NORTH AF AUX. THIS ASP IS SUBJ TO BE RSTD BY NOTAM. RWY 06-24, NO 180 DEG STAR TURNS ON ASPH, CONDUCT ALL TURNS ON CONC ENDS.
A110-9
MISC: ALZ RWY 05-23 AND 06-24 GROOVED. LZ/DZ OPS FACILITY LTD TO ADVSY SVC ONLY, NO ATC SVCS PRVDD, AIRCREWS WILL CTC COLUMBIA APP TO REQ/ACTVT IFR CLNC.
NORTH AF AUX (ICAO: KXNO, IATA: XNO) is a private airport located in NORTH, SC.
