ZEPHYRHILLS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KZPH
ZEPHYRHILLS MUNI
PublicPUB

1 miles SE of ZEPHYRHILLS, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 13' 36"N 82° 09' 20"W
90' MSL
1090' MSL
06W
JET A, JET A (FSII), 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
11/28/24-12/26/24
KZPH VFR
7:15 AM EST
Scattered 4,200'
10sm
51°F
49°F
30.28"Hg
030° 6kts
A02 T01030096
KZPH 231215Z AUTO 03006KT 10SM SCT042 10/10 A3028 RMK A02 T01030096

KZPH FBOs

Zephyrhills Municipal Airport
UNICOM: 123.075
Phone: (813) 780-0030
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 12/17
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.40
Full Serve 5.50 5.10
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3PT

AWOS-3PT
813-780-0031
118.975

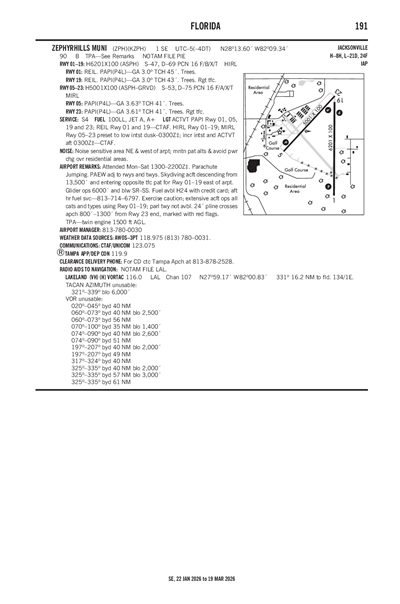

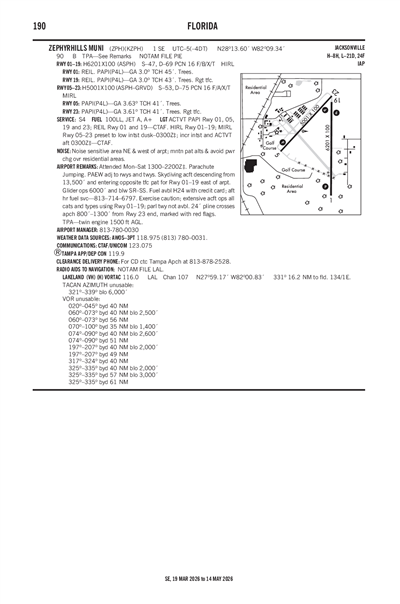

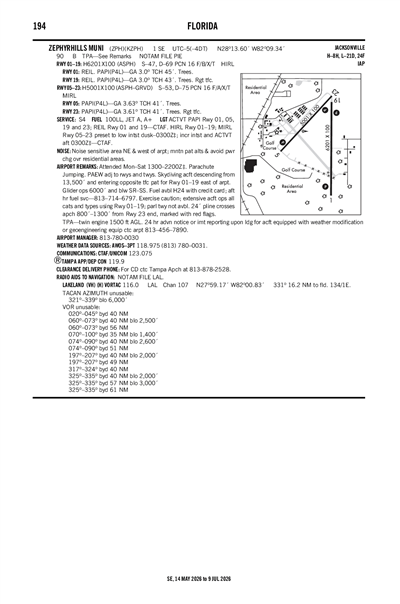

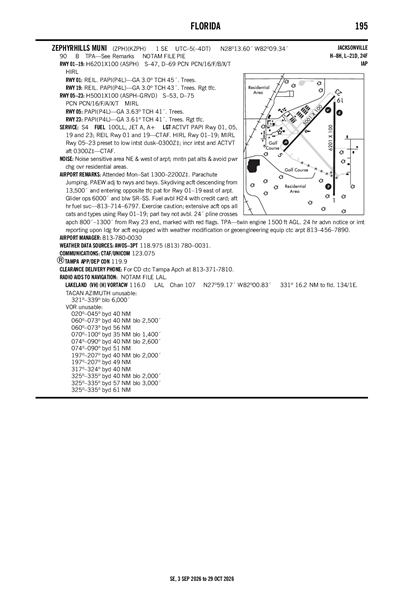

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAL (16nm)
Mon, 12/23 6:28 AM EST
Mon, 12/23 7:00 AM EST - Tue, 12/24 7:00 AM EST
VFR
7:00 AM EST - 12:00 PM EST
Scattered 25,000'
Scattered 4,000'
6sm
030° 7kts
VFR
12:00 PM EST - 8:00 PM EST
Broken 5,000'
6sm
070° 6kts
VFR
8:00 PM EST - 5:00 AM EST
Scattered 25,000'
Scattered 5,000'
6sm
040° 5kts
MVFR
5:00 AM EST - 7:00 AM EST
Mist
Broken 25,000'
Scattered 500'
3sm
VRB° 3kts
KLAL 231128Z 2312/2412 03007KT P6SM SCT040 SCT250
   FM231700 07006KT P6SM BKN050
   FM240100 04005KT P6SM SCT050 SCT250
   FM241000 VRB03KT 3SM BR SCT005 BKN250
KZPH
Domestic
12/16/242034Z !PIE 12/189 ZPH OBST TOWER LGT (ASR 1207985) 281345.20N0821127.00W (1.9NM W ZPH) 254.9FT (169.9FT AGL) U/S 2412162034-2501162359
11/25/241745Z !PIE 11/249 ZPH OBST TOWER LGT (ASR 1203111) 282140.00N0821154.30W (8.3NM NNW ZPH) 449.5FT (305.1FT AGL) U/S 2411251745-2501012359
11/25/241744Z !PIE 11/248 ZPH OBST TOWER LGT (ASR 1301281) 281435.80N0821348.20W (4.06NM WNW ZPH) 421FT (312FT AGL) U/S 2411251744-2501012359
11/24/241322Z !PIE 11/236 ZPH OBST TOWER LGT (ASN 2021-ASO-28554-OE) 281445N0821253W (3.3NM WNW ZPH) 413FT (315FT AGL) U/S 2411241322-2501081321
11/20/240139Z !PIE 11/186 ZPH OBST TOWER LGT (ASR 1031081) 282707.40N0821121.30W (13.5NM N ZPH) 502.0FT (435.0FT AGL) U/S 2411200139-2503200139
10/11/241346Z !PIE 10/430 ZPH RWY 19 RWY END ID LGT U/S 2410111346-2504142111EST
10/10/240708Z !PIE 10/305 ZPH OBST TOWER LGT (ASR 1050257) 281238.00N0820257.00W (5.7NM E ZPH) 726.7FT (616.8FT AGL) U/S 2410100708-2501102359
FDC
5/8/231848Z !FDC 3/2879 ZPH IAP ZEPHYRHILLS MUNI, ZEPHYRHILLS, FL.
RNAV (GPS) RWY 23, ORIG-A...
RNAV (GPS) RWY 5, ORIG-A...
CIRCLING RWY 1 NA.
2305081848-2505081848EST
5/8/231848Z !FDC 3/2878 ZPH IAP ZEPHYRHILLS MUNI, ZEPHYRHILLS, FL.
RNAV (GPS) RWY 19, AMDT 1A...
LNAV/VNAV DA 477/HAT 387 ALL CATS.
CIRCLING RWY 1 NA.
CHANGE RWY LDG TO READ: 1602.
2305081848-2505081848EST
No
MON-SAT 0800-1700
CITY OF ZEPHYRHILLS
39450 SOUTH AVENUE
ZEPHYRHILLS, FL 33542
Phone: 813-780-0030
NATHAN COLEMAN
ZEPHYRHILLS MUNICIPAL AIRPORT, 39450 SOUTH AVENUE
ZEPHYRHILLS, FL 33542
Phone: 813-780-0030
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
ACTVT PAPI RWY 01, 05, 19 & 23; REIL RWY 1 & 19 - CTAF. HIRL RWY 1/19; MIRL RWY 5/23 PRESET TO LOW INTST DUSK-2200; INCR INTST & ACTVT AFT 2200 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Glider Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Glider Towing

Runway 01/19

6201 ft. x 100 ft.
ASPH
Fair
NONE
HIGH
16 /F/B/X/T
47,000lbs
69,000lbs
--
--
  Runway 01 Runway 19
True Heading 180°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 28° 12' 58"N 28° 13' 59"N
Longitude 82° 09' 12"W 82° 09' 12"W
Elevation 79' 89'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 05/23

5001 ft. x 100 ft.
ASPH
Good
GRVD
MED
16 /F/A/X/T
53,000lbs
75,000lbs
--
--
  Runway 05 Runway 23
True Heading 43°223°
Traffic Pattern Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 28° 13' 27"N 28° 14' 03"N
Longitude 82° 09' 50"W 82° 09' 12"W
Elevation 85' 88'
Threshold Crossing Height 41 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3.63° 3.61°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-124 FT PLINE CROSSES APCH 800-1300 FT FROM RWY 23 END; MKD WITH RED FLAGS.
A110-10PATTERN ALTITUDE TWIN ENGINE 1500 FT AGL.
A110-3GLIDER OPS 6000 FT & BLW SR-SS.
A110-4SKY-DIVING ACFT DESCENDING FROM 13500 FT & ENTERING OPPOSITE TFC PAT FOR RWY 1/19 E OF ARPT.
A110-5PAEW ADJ TO RWYS & TWYS.
A110-6EXERCISE CAUTION; EXTENSIVE ACFT OPS ALL CATS & TYPES USING RWY 1/19; PARL TWY NOT AVBL.
A110-8NOISE SENSITIVE AREA NE & WEST OF ARPT; MNTN PAT ALTS & AVOID PWR CHG OVR RESIDENTAL AREAS.
A110-9FOR CD CTC TAMPA APCH AT 813-878-2528.
ZEPHYRHILLS MUNI (ICAO: KZPH, IATA: ZPH) is a public airport located in ZEPHYRHILLS, FL.
