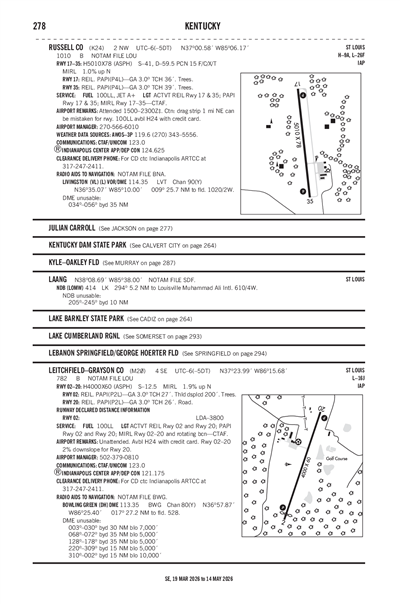

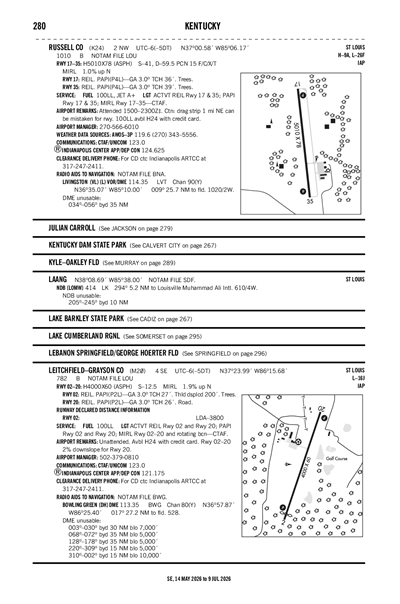

LEITCHFIELD-GRAYSON COUNTY - Airport Diagram

M20

LEITCHFIELD-GRAYSON COUNTY

PublicPUB

4 miles SE of LEITCHFIELD, KY

View on Map

Status

Operational

Coordinates

37° 23' 59"N 86° 15' 41"W

Elevation

782' MSL

Pattern Alt

1782' MSL

Mag Variation

04W

Fuel

100LL

FSS

LOUISVILLE (LOU)

Sectional

ST LOUIS

ARTCC

INDIANAPOLIS (ZID)

Data Effective

1/23/25-2/20/25

KEKX (24nm) IFR

2:55 AM EST RAW

Broken 500'

Viz

10sm

Temp

33°F

Dew

32°F

Pres

30.13"Hg

Wind

180° 4kts

RMK

AO2 T00060001

KEKX 020755Z AUTO 18004KT 10SM BKN005 01/00 A3013 RMK AO2 T00060001

Add Your Business

M20 FBOs

Promote Listing

Grayson County Airport

UNICOM: 123.0

Phone: (270) 242-7700

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 1/29	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.35
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 123.0 CTAF 123.0

No communication frequencies available for this airport.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KBWG (27nm)

RAW

Reported

Sun, 2/2 1:06 AM CST

Valid

Sun, 2/2 1:00 AM CST - Mon, 2/3 12:00 AM CST

MVFR

1:00 AM CST - 3:00 AM CST

Mist

Scattered 2,500'

Viz

4sm

Wind

VRB° 3kts

LIFR

Temporary 1:00 AM CST - 3:00 AM CST

Fog

No Clouds

Viz

0.25sm

Wind

Calm

VFR

3:00 AM CST - 9:00 AM CST

Broken 25,000'

Viz

6sm

Wind

Calm

VFR

9:00 AM CST - 4:00 PM CST

Scattered 400'

Viz

6sm

Wind

200° 12kts

Gusts 19kts

VFR

4:00 PM CST - 12:00 AM CST

Sky Clear

Viz

6sm

Wind

190° 5kts

KBWG 020706Z 0207/0306 VRB03KT 4SM BR SCT025
   TEMPO 0207/0209 1/4SM FG
   FM020900 00000KT P6SM BKN250
   FM021500 20012G19KT P6SM SCT004
   FM022200 19005KT P6SM SKC

M20

Domestic
2/1/252106Z	!LOU 02/010 M20 OBST TOWER LGT (ASN 2019-ASO-3232-OE) 371444N0863222W (16.3NM SW M20) 989FT (270FT AGL) U/S 2502012106-2503182105
1/14/252247Z	!LOU 01/569 M20 OBST TOWER LGT (ASN 2004-ASO-2016-OE) 372418N0861414W (1.2NM ENE M20) 1003FT (150FT AGL) U/S 2501142247-2505182359
1/8/250732Z	!LOU 01/284 M20 OBST TOWER LGT (ASN 2021-ASO-50778-OE) 372204N0862226W (5.7NM WSW M20) 934FT (235FT AGL) U/S 2501080732-2502220731
8/28/241222Z	!LOU 08/451 M20 RWY 20 RWY END ID LGT U/S 2408281222-2502282111EST

ATC Tower

Attendance

UNATTENDED

Owner

GRAYSON COUNTY AIRPORT BOARD
695 AIRPORT ROAD
LEITCHFIELD, KY 42754
Phone: 270-230-7178

Manager

MICHAEL PIERCE
427 SOUTH LANE
LEITCHFIELD, KY 42754
Phone: 502-379-0810

FSS

LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF

NOTAM

LOU

Light Schedule

Lights

ACTVT REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.
ACTVT ROTG BCN - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 02/20

Dimensions

4000 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	19°	199°
Traffic Pattern		Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	37° 23' 40"N	37° 24' 18"N
Longitude	86° 15' 48"W	86° 15' 33"W
Elevation	706'	782'
Threshold Crossing Height	27 ft. AGL	26 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1

FOR CD CTC INDIANAPOLIS ARTCC AT 317-247-2411.

LEITCHFIELD-GRAYSON COUNTY (IATA: M20) is a public airport located in LEITCHFIELD, KY.
