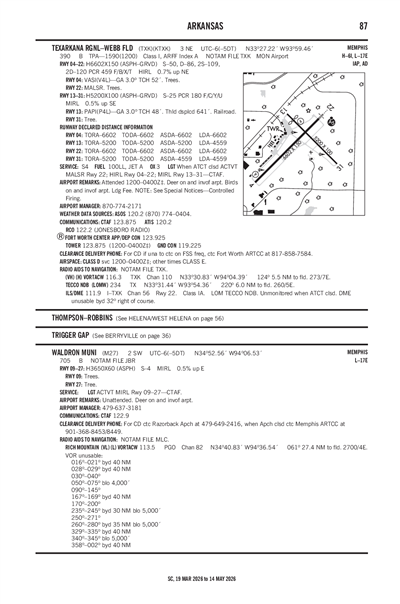

WALDRON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

M27
WALDRON MUNI
PublicPUB

2 miles SW of WALDRON, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 52' 34"N 94° 06' 32"W
705' MSL
1705' MSL
05E
None Listed
JONESBORO (JBR)
MEMPHIS
MEMPHIS (ZME)
11/28/24-12/26/24
KMEZ (21nm) VFR
6:15 AM CST
Broken 6,500'
Few 4,700'
10sm
50°F
25°F
30.21"Hg
VRB° 3kts
AO2 T00981038 $
KMEZ 231215Z AUTO VRB03KT 10SM FEW047 BKN065 10/M04 A3021 RMK AO2 T00981038 $
Add Your Business

M27 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KFSM (30nm)
Mon, 12/23 5:20 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 9:00 PM CST
Broken 4,500'
6sm
070° 6kts
MVFR
9:00 PM CST - 3:00 AM CST
Overcast 2,000'
6sm
080° 5kts
MVFR
9:00 PM CST - 3:00 AM CST
Light Showers and Rain and Showers and Drizzle and Mist
Overcast 1,200'
4sm
Calm
MVFR
3:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 1,200'
4sm
060° 8kts
KFSM 231120Z 2312/2412 07006KT P6SM BKN045
   FM240300 08005KT P6SM OVC020
   PROB30 2403/2409 4SM -SHRADZ BR OVC012
   FM240900 06008KT 4SM -SHRA BR OVC012
M27
Domestic
12/20/241437Z !JBR 12/218 M27 OBST TOWER LGT (ASN 2024-ASW-645-OE) 350346N0940909W (11.4NM N M27) 831FT (268FT AGL) U/S 2412201437-2501202300
12/15/241051Z !JBR 12/149 M27 OBST TOWER LGT (ASR 1242394) 350115.20N0940718.30W (8.7NM N M27) 935.0FT (307.1FT AGL) U/S 2412151051-2503150500
11/4/241155Z !JBR 11/034 M27 OBST TOWER LGT (ASR 1038805) 345844.20N0935642.60W (10.2NM NE M27) 2482.0FT (270.0FT AGL) U/S 2411041155-2502020500
No
UNATNDD
CITY OF WALDRON
CITY HALL PO BOX 310
WALDRON, AR 72958
Phone: 479-637-3181
DAVID MILLARD
PO BOX 310
WALDRON, AR 72958
Phone: 479-637-3181
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT MIRL RWY 09/27 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3650 ft. x 60 ft.
ASPH
Fair
NONE
MED

4,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 92°272°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 52' 34"N 34° 52' 33"N
Longitude 94° 06' 54"W 94° 06' 10"W
Elevation 687' 705'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2DEER ON & INVOF ARPT
A110-4FOR CD CTC RAZORBACK APCH AT 479-649-2416, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
WALDRON MUNI (IATA: M27) is a public airport located in WALDRON, AR.
