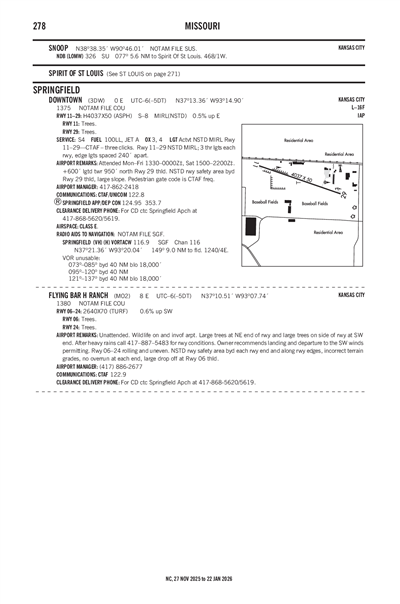

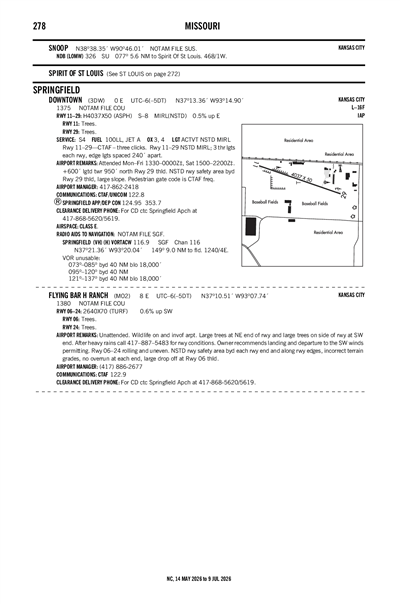

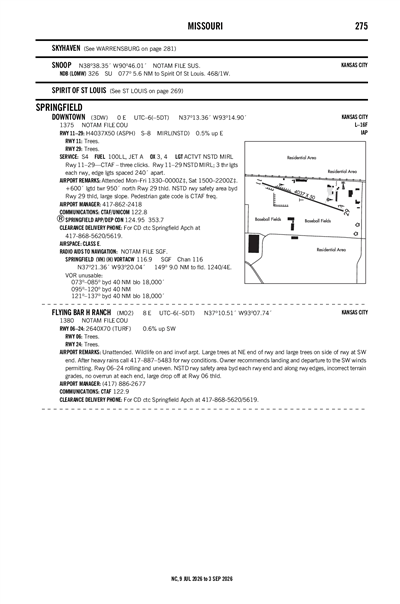

FLYING BAR H RANCH - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

MO2
FLYING BAR H RANCH
PublicPUB

8 miles E of SPRINGFIELD, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 10' 31"N 93° 07' 44"W
1380' MSL
2380' MSL
04E
None Listed
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
11/28/24-12/26/24
KSGF (13nm) VFR
5:52 AM CST
Overcast 6,000'
10sm
43°F
29°F
30.12"Hg
170° 12kts
AO2 SLP204 T00611017 10061 20039 55003
KSGF 231152Z 17012KT 10SM OVC060 06/M02 A3012 RMK AO2 SLP204 T00611017 10061 20039 55003
Add Your Business

MO2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KSGF (13nm)
Mon, 12/23 5:29 AM CST
Mon, 12/23 6:00 AM CST - Tue, 12/24 6:00 AM CST
VFR
6:00 AM CST - 1:00 PM CST
Overcast 6,000'
6sm
180° 12kts
Shear 220° 40kts @ 2000'
VFR
Temporary 9:00 AM CST - 1:00 PM CST
No Clouds
N/A
200° 9kts
Gusts 18kts
MVFR
1:00 PM CST - 8:00 PM CST
Overcast 2,500'
6sm
200° 6kts
IFR
3:00 PM CST - 7:00 PM CST
Light Showers and Rain and Mist
Overcast 900'
4sm
Calm
MVFR
8:00 PM CST - 1:00 AM CST
Showers and Rain and Mist
Overcast 1,000'
5sm
160° 5kts
IFR
1:00 AM CST - 6:00 AM CST
Rain and Mist
Overcast 700'
3sm
130° 4kts
KSGF 231129Z 2312/2412 18012KT P6SM OVC060 WS020/22040KT
   TEMPO 2315/2319 20009G18KT
   FM231900 20006KT P6SM OVC025
   PROB30 2321/2401 4SM -SHRA BR OVC009
   FM240200 16005KT 5SM SHRA BR OVC010
   FM240700 13004KT 3SM RA BR OVC007
MO2
Domestic
12/18/240540Z !COU 12/254 MO2 OBST TOWER LGT (ASR 1245670) 370659.40N0930103.10W (6.4NM ESE MO2) 1753.9FT (265.1FT AGL) U/S 2412180540-2501020440
12/17/242202Z !COU 12/251 MO2 OBST TOWER LGT (ASR 1235832) 371141.00N0925608.00W (9.3NM E MO2) 2983.6FT (1438.3FT AGL) U/S 2412172202-2501172359
12/16/242130Z !COU 12/239 MO2 OBST TOWER LGT (ASR 1006062) 370017.00N0931137.00W (10.7NM SSW MO2) 1590.9FT (262.1FT AGL) U/S 2412162130-2501162300
12/16/241130Z !COU 12/233 MO2 OBST TOWER LGT (ASR 1257090) 370036.30N0931002.90W (10.1NM S MO2) 1596.8FT (254.9FT AGL) U/S 2412161130-2412311030
12/11/240644Z !COU 12/161 MO2 OBST TOWER LGT (ASR 1254604) 370026.90N0931749.90W (12.9NM SW MO2) 1561.0FT (307.1FT AGL) U/S 2412110644-2412260544
11/29/241548Z !COU 11/438 MO2 OBST TOWER LGT (ASR 1028721) 371309.40N0925657.40W (9.0NM ENE MO2) 3571.2FT (1996.1FT AGL) U/S 2411291548-2501131547
11/25/241913Z !COU 11/400 MO2 OBST TOWER LGT (ASN 2023-ACE-3532-OE) 365617N0930310W (14.6NM SSE MO2) 1680FT (310FT AGL) U/S 2411251913-2501091900
No
UNATNDD
DAVID W. HALL
2204 S FARM RD 225
ROGERSVILLE, MO 65742
Phone: 417-886-2677
DAVID W. HALL
2204 S FARM RD 225
ROGERSVILLE, MO 65742
Phone: (417) 886-2677
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
--
N/A
Yes
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 06/24

2640 ft. x 70 ft.
TURF
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 60°240°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 37° 10' 24"N 37° 10' 37"N
Longitude 93° 07' 59"W 93° 07' 31"W
Elevation 1,380' 1,365'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2AFTER HEAVY RAINS CALL 417-887-5483 FOR RY CONDS.
A110-3LARGE TREES AT NE END OF RY & LARGE TREES ON SIDES OF RY AT SW END.
A110-4OWNER RECOMMENDS LANDING & DEP TO THE SW WINDS PERMITTING.
A110-5NTSD RY SAFETY AREAS BYND EACH RY END & ALONG RY EDGES; INCORRECT TERRAIN GRADES, NO OVERRUN AT EACH END, LARGE DROP OFF AT RY 06 THLD.
A110-6FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
FLYING BAR H RANCH (IATA: MO2) is a public airport located in SPRINGFIELD, MO.
