iFlightPlanner



...

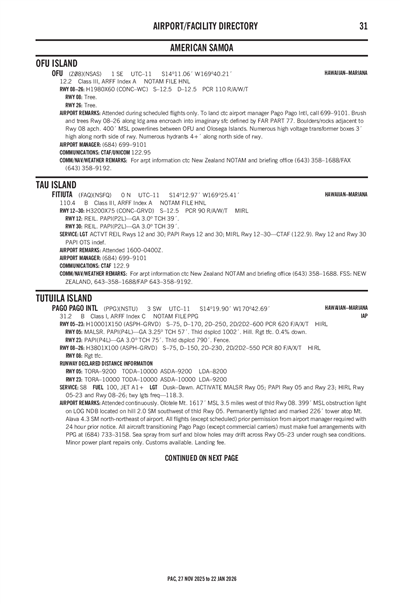

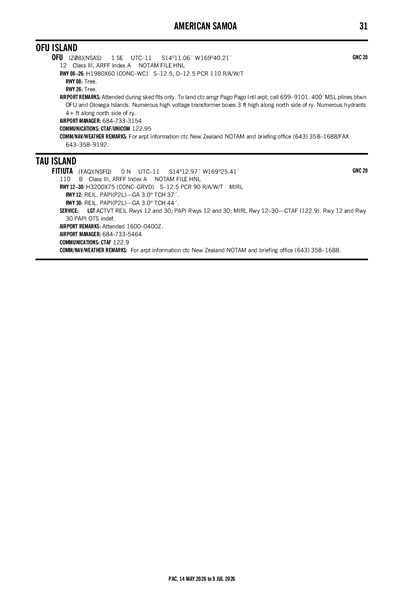

FITIUTA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

NSFQ
FITIUTA
PublicPUB

0 miles N of FITIUTA VILLAGE, AS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
14° 12' 58"S 169° 25' 25"W
110' MSL
1110' MSL
12E
None Listed
HONOLULU (HNL)
GNC 20
AUCKLAND OCEANIC FIR (NZZO)
5/16/24-6/13/24
NSTU (76nm) VFR
3:50 AM -11
Light Showers and Rain
Overcast 10,000'
Broken 4,000'
Scattered 1,500'
6sm
78°F
76°F
29.86"Hg
050° 8kts
TCU ALQDS SLP113 60146 8/47/ T02540245 58008
NSTU 121450Z 05008KT 6SM -SHRA SCT015TCU BKN040 OVC100 25/25 A2986 RMK TCU ALQDS SLP113 60146 8/47/ T02540245 58008
Add Your Business

NSFQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

NSTU (76nm)
Wed, 6/12 3:07 AM -11
Wed, 6/12 3:00 AM -11 - Thu, 6/13 1:00 AM -11
VFR
3:00 AM -11 - 5:00 AM -11
Thunderstorm in vicinity
Overcast 3,500'
Scattered 1,200'
6sm
050° 5kts
IFR
Temporary 3:00 AM -11 - 5:00 AM -11
Heavy Thunderstorm and Rain
Overcast 2,000'
Broken 1,200'
Few 800'
2sm
VRB° 15kts
Gusts 25kts
VFR
5:00 AM -11 - 1:00 AM -11
Showers in vicinity
Overcast 3,500'
Scattered 2,000'
6sm
VRB° 5kts
NSTU 121407Z 1214/1312 05005KT P6SM VCTS SCT012CB OVC035
   TEMPO 1214/1216 VRB15G25KT 2SM +TSRA FEW008 BKN012CB OVC020
   FM121600 VRB05KT P6SM VCSH SCT020 OVC035
NSFQ
No NOTAM Available
No
0500-1700
AM SAMOA GOVERNMENT
P.O. BOX 1539
PAGO PAGO, AS 96799
Phone: 684-633-4251
FALENAOTI LOI-ON FRUEAN
P.O. BOX 1539
PAGO PAGO, AS 96799
Phone: 684-733-5464
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
ACTVT REIL RWYS 12 & 30; PAPI RWYS 12 & 30; MIRL RWY 12/30 - CTAF. (122.9)
N/A
Yes
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 12/30

3200 ft. x 75 ft.
CONC
Good
GRVD
MED
7 /R/C/Z/U
12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 14° 12' 47"S 14° 13' 09"S
Longitude 169° 25' 37"W 169° 25' 13"W
Elevation 105' 106'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR ARPT INFORMATION CTC NEW ZEALAND NOTAM AND BRIEFING OFFICE (643) 358-1688. FSS: NEW ZEALAND , 643-358-1688/FAP 643-358-9192
FITIUTA (ICAO: NSFQ, IATA: FAQ) is a public airport located in FITIUTA VILLAGE, AS.
