O22

COLUMBIA

PublicPUB

1 miles SW of COLUMBIA, CA

View on Map

Status

Operational

Coordinates

38° 01' 50"N 120° 24' 52"W

Elevation

2121' MSL

Pattern Alt

3121' MSL

Mag Variation

16E

Fuel

JET A, 100LL

FSS

RANCHO MURIETA (RIU)

Sectional

SAN FRANCISCO

ARTCC

OAKLAND (ZOA)

Data Effective

11/28/24-12/26/24

KO22 VFR

4:35 AM PST RAW

Overcast 5,500'
Broken 5,000'

Viz

10sm

Temp

50°F

Dew

48°F

Pres

30.20"Hg

Wind

Calm

RMK

A01

KO22 231235Z AUTO 00000KT 10SM BKN050 OVC055 10/09 A3020 RMK A01

Add Your Business

O22 FBOs

Promote Listing

Bald Eagle Aviation

UNICOM: 122.975

Phone: (209) 533-4616

0 Reviews (Read | Sign In To Write)

Titan

As of 12/18	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.99
Full Serve	5.24	5.75	5.80

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.975 CTAF 122.975

AWOS-3

209-536-9384

124.65

FAA A/FD Pages

FAA A/FD Page

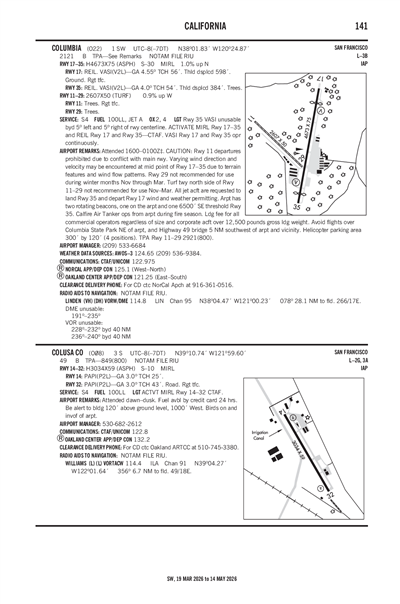

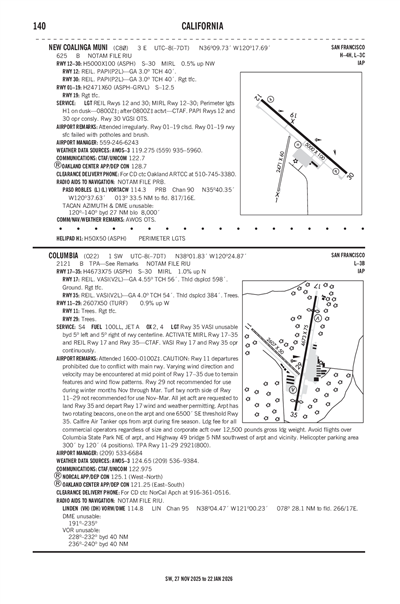

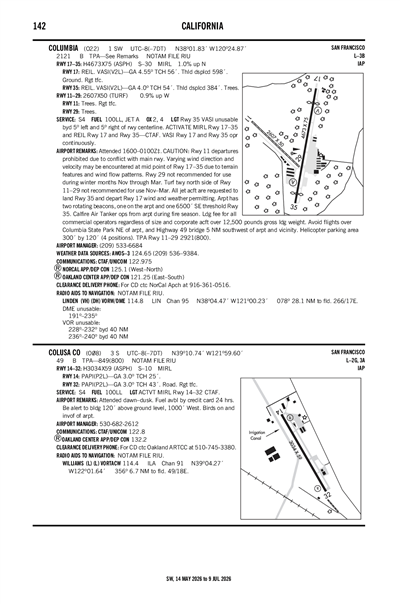

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

FICHU FOUR (OBSTACLE) (RNAV)

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 35

Terminal Area Forecast

KMER (39nm)

RAW

Reported

Mon, 12/23 3:20 AM PST

Valid

Mon, 12/23 4:00 AM PST - Tue, 12/24 4:00 AM PST

MVFR

4:00 AM PST - 10:00 AM PST

Mist

Broken 25,000'

Viz

4sm

Wind

VRB° 4kts

IFR

Temporary 4:00 AM PST - 8:00 AM PST

Mist

No Clouds

Viz

1.5sm

Wind

Calm

VFR

10:00 AM PST - 9:00 PM PST

Broken 25,000'

Viz

6sm

Wind

VRB° 4kts

MVFR

9:00 PM PST - 2:00 AM PST

Mist

Broken 25,000'

Viz

4sm

Wind

VRB° 6kts

IFR

2:00 AM PST - 4:00 AM PST

Mist

Broken 5,000'

Viz

2sm

Wind

130° 7kts

KMER 231120Z 2312/2412 VRB04KT 4SM BR BKN250
   TEMPO 2312/2316 1 1/2SM BR
   FM231800 VRB04KT P6SM BKN250
   FM240500 VRB06KT 4SM BR BKN250
   FM241000 13007KT 2SM BR BKN050 AMD NOT SKED

O22

Domestic
11/11/241735Z	!RIU 11/059 O22 OBST TOWER LGT (ASR 1014628) 380112.60N1203508.80W (8.1NM W O22) 3106.6FT (259.8FT AGL) U/S 2411111735-2503111735
6/10/240214Z	!RIU 06/062 O22 RWY 17 VASI U/S 2406100214-PERM

ATC Tower

Attendance

0800-1700

Owner

COUNTY OF TUOLUMNE
2 SOUTH GREEN ST.
SONORA, CA 95370
Phone: 209-533-5685

Manager

KIM MACFARLANE
10723 AIRPORT RD
COLUMBIA, CA 95310
Phone: (209) 533-6684

FSS

RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF

NOTAM

RIU

Light Schedule

Lights

ACTVT MIRL RY 17/35 & REIL RYS 17 & 35 - CTAF. VASI RY 17 & RY 35 OPER CONTINUOUSLY.

Beacon

N/A
ARPT HAS TWO ROTG BCNS; ONE ON THE ARPT AND ONE 6500' SE THR RWY 35.

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

Dimensions

2607 ft. x 50 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 11	Runway 29
True Heading	134°	314°
Traffic Pattern	Right	Left
Markings	NONE	NRS
Markings Condition		GOOD
Latitude	38° 01' 59"N	38° 01' 41"N
Longitude	120° 25' 14"W	120° 24' 50"W
Elevation	2,101'	2,078'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 17/35

Dimensions

4673 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	190°	10°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	38° 02' 12"N	38° 01' 27"N
Longitude	120° 24' 42"W	120° 24' 52"W
Elevation	2,121'	2,074'
Threshold Crossing Height	56 ft. AGL	54 ft. AGL
Visual Glide Path Angle	4.55°	4°
Visual Slope Indicator	V2L	V2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	CALFIRE AIR TANKER OPRS FM ARPT DRG FIRE SEASON.
A110-10	LANDING FEE FOR ALL COMMERCIAL OPERATORS REGARDLESS OF SIZE & CORPORATE ACFT OVER 12500 LBS GROSS LANDING WEIGHT.
A110-12	HEL PRKNG AREA 300 FT BY 120 FT (4 POSITIONS).
A110-13	AVOID FLIGHTS OVER COLUMBIA STATE PARK NE OF ARPT, AND HWY 49 BRIDGE 5 NM SW OF ARPT & VICINITY.
A110-14	FOR CD CTC NORCAL APCH AT 916-361-0516.
A110-2	VARYING WIND DIRECTION & VELOCITY MAY BE ENCOUNTERED AT MID POINT OF RY 17/35 DUE TO TERRAIN FEATURES & WIND FLOW PATTERNS.
A110-6	RY 11 DEPS PROHIBITED DUE TO CONFLICT WITH MAIN RY.
A110-7	TURF TWY NORTH SIDE OF RY 11/29 NOT RECOMMENDED FOR USE NOV - MAR
A110-8	RY 29 NOT RECOMMENDED FOR USE DURING WINTER MONTHS NOV THROUGH MAR.
A110-9	ALL JET ACFT ARE REQUESTED TO LAND RY 35 & DEPART RY 17 WIND & WEATHER PERMITTING.

COLUMBIA (IATA: O22) is a public airport located in COLUMBIA, CA.
