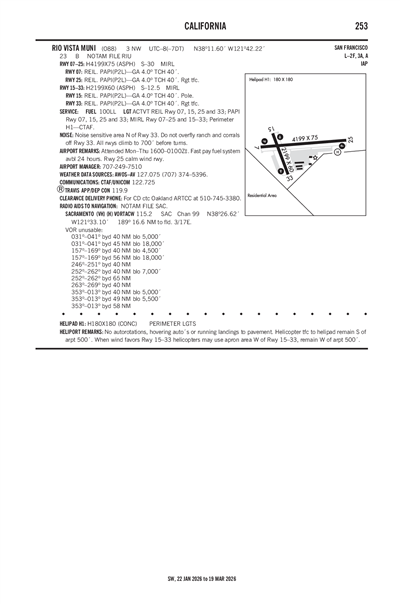

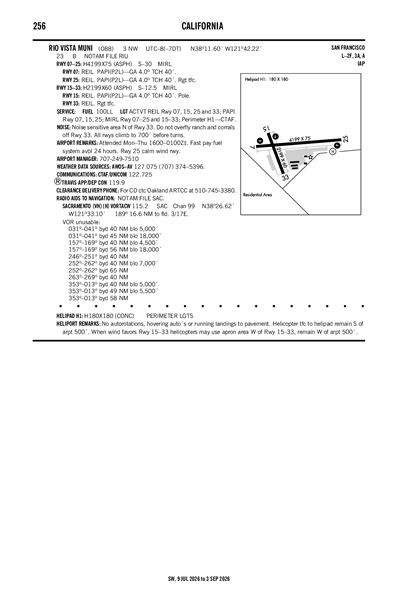

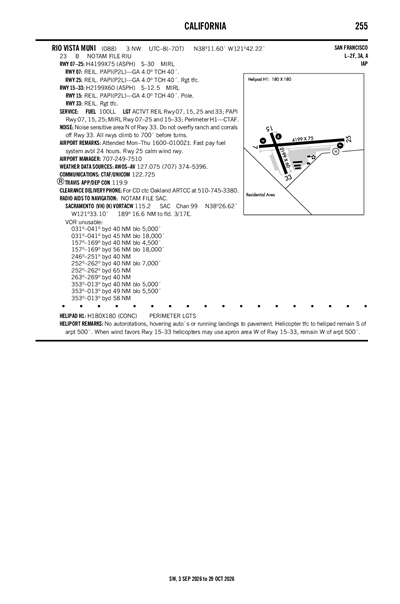

RIO VISTA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

O88
RIO VISTA MUNI
PublicPUB

3 miles NW of RIO VISTA, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 11' 36"N 121° 42' 13"W
23' MSL
1023' MSL
14E
100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
11/28/24-12/26/24
KSUU (12nm) LIFR
4:33 AM PST
Light Rain and Mist
Overcast 200'
1.5sm
55°F
54°F
30.16"Hg
060° 3kts
AO2A VIS 1 1/2V2 RAB33 SLP220 $
KSUU 231233Z 06003KT 1 1/2SM -RA BR OVC002 13/12 A3016 RMK AO2A VIS 1 1/2V2 RAB33 SLP220 $
Add Your Business

O88 FBOs

Promote Listing
Rio Vista Municipal Airport
UNICOM: 122.725
Phone: (707) 374-2716
Other: (707) 374-6451
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 12/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.39
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 122.725

AWOS-AV

AWOS-AV
707-374-5396
 127.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSUU (12nm)
Mon, 12/23 2:55 AM PST
Mon, 12/23 3:00 AM PST - Tue, 12/24 9:00 AM PST
LIFR
3:00 AM PST - 9:00 AM PST
Light Showers and Rain and Mist
Broken 700'
Broken 200'
1.99sm
30.15"Hg
VRB° 6kts
LIFR
Temporary 6:00 AM PST - 10:00 AM PST
Fog
Obscured
0.5sm
Calm
VFR
Becoming 9:00 AM PST - 4:00 PM PST
Scattered 1,000'
6sm
30.09"Hg
VRB° 6kts
IFR
Temporary 10:00 AM PST - 5:00 PM PST
Mist
Broken 2,000'
Broken 1,000'
2.98sm
Calm
MVFR
Becoming 4:00 PM PST - 11:00 PM PST
Broken 2,000'
6sm
30.00"Hg
VRB° 6kts
MVFR
Temporary 6:00 PM PST - 12:00 AM PST
Light Showers and Rain and Mist
No Clouds
3.73sm
Calm
MVFR
Becoming 11:00 PM PST - 9:00 AM PST
Rain and Mist
Broken 2,000'
Scattered 1,000'
3.73sm
29.91"Hg
230° 15kts
Gusts 25kts
MVFR
Temporary 3:00 AM PST - 6:00 AM PST
Heavy Showers and Rain
Broken 1,000'
N/A
280° 25kts
Gusts 35kts
Light Turbulence: up to 3,000'
MVFR
Temporary 6:00 AM PST - 9:00 AM PST
Showers and Rain
Broken 1,000'
N/A
Calm
TAF KSUU 231055Z 2311/2417 VRB06KT 3200 -SHRA BR BKN002 BKN007 QNH3014INS
   TEMPO 2314/2318 0800 FG VV002
   BECMG 2317/2318 VRB06KT 9999 NSW SCT010 QNH3009INS
   TEMPO 2318/2401 4800 BR BKN010 BKN020
   BECMG 2400/2401 VRB06KT 9999 BKN020 QNH3001INS
   TEMPO 2402/2408 6000 -SHRA BR
   BECMG 2407/2408 23015G25KT 6000 RA BR SCT010 BKN020 QNH2992INS
   TEMPO 2411/2414 28025G35KT +SHRA BKN010 510003
   TEMPO 2414/2417 SHRA BKN010 TX15/2323Z TN11/2316Z
O88
Domestic
12/11/241930Z !RIU 12/076 O88 SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2412111930-2501092359EST
11/30/241959Z !RIU 11/161 O88 OBST TOWER LGT (ASR UNKNOWN) 380305.30N1214119.11W (9.9NM S O88) 337FT (337FT AGL) U/S 2411301959-2503012359
10/16/240634Z !RIU 10/120 O88 OBST TOWER LGT (ASN 2012-AWP-7567-OE) 380144N1214653W (10.5NM SSW O88) 282FT (278FT AGL) U/S 2410160634-2501142359
4/16/191524Z !RIU 04/098 O88 OBST TOWER LGT (ASN 2011-WTW-3013-OE) 380532N1214758W (7.5NM SW O88) 466FT (262FT AGL) OUT OF SERVICE 1904161524-PERM
4/16/191522Z !RIU 04/097 O88 OBST TOWER LGT (ASN 2010-WTW-10820-OE) 380533N1214924W (8.2NM SW O88) 495FT (262FT AGL) OUT OF SERVICE 1904161522-PERM
FDC
4/3/241402Z !FDC 4/6080 O88 IAP RIO VISTA MUNI, RIO VISTA, CA.
RNAV (GPS) RWY 25, AMDT 4...
CIRCLING CAT B MDA 660/ HAA 637.
2404031402-2604031402EST
No
MON-THUR 0800 - 1700
CITY OF RIO VISTA
ONE MAIN STREET
RIO VISTA, CA 94571
Phone: 707-374-6451
TOM HAVENS
ONE MAIN STREET, P.O. BOX 94571
RIO VISTA, CA 94571
Phone: 707-249-7510
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
ACTVT REIL RWY 07, 15, 25, & 33; PAPI RWY 07, 15, 25, & 33; MIRL RWY 07/25 & 15/33; PERIMETER H1 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
0
0
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

4199 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 86°266°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 11' 36"N 38° 11' 40"N
Longitude 121° 42' 34"W 121° 41' 42"W
Elevation 21' 22'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

2199 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 15 Runway 33
True Heading 160°340°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 11' 43"N 38° 11' 23"N
Longitude 121° 42' 27"W 121° 42' 18"W
Elevation 22' 22'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

180 ft. x 180 ft.

CONC
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 25 CALM WIND RY.
A110-2NOISE SENSITIVE AREA N OF RY 33. DO NOT OVERFLY RANCH & CORRALS OFF RY 33. ALL RYS CLIMB TO 700 FT BEFORE TURNS.
A110-4HELIPAD: NO AUTOROTATIONS HOVERING AUTO'S OR RUNNING LDGS TO PAVEMENT.
A110-6HEL TFC TO HELIPAD REMAIN SOUTH OF ARPT 500 FT.
A110-7WHEN WIND FAVORS RWY 15/33 HELS MAY USE APRON AREA WEST OF RWY 15/33; REMAIN WEST OF ARPT 500 FT.
A110-8FOR CD CTC OAKLAND ARTCC AT 510-745-3380.
RIO VISTA MUNI (IATA: O88) is a public airport located in RIO VISTA, CA.
