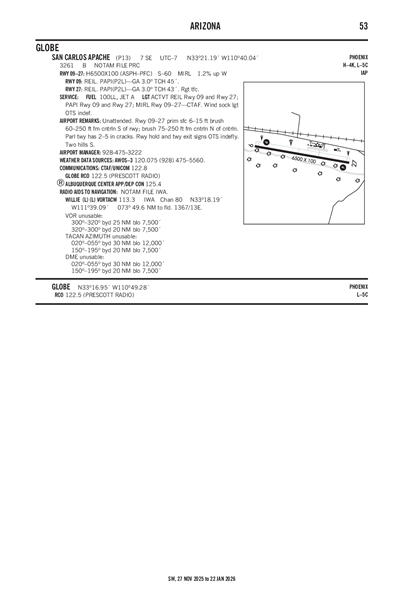

SAN CARLOS APACHE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

P13
SAN CARLOS APACHE
PublicPUB

7 miles SE of GLOBE, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 21' 11"N 110° 40' 02"W
3261' MSL
4261' MSL
12E
JET A, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
5/16/24-6/13/24
KE77 (43nm) VFR
9:55 PM MST
Clear
10sm
79°F
5°F
29.96"Hg
240° 5kts
AO2
KE77 010455Z AUTO 24005KT 10SM CLR 26/M15 A2996 RMK AO2
Add Your Business

P13 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
928-475-5560
 120.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIWA (49nm)
Fri, 5/31 4:20 PM MST
Fri, 5/31 5:00 PM MST - Sat, 6/1 5:00 PM MST
VFR
5:00 PM MST - 12:00 AM MST
Few 25,000'
6sm
270° 8kts
VFR
12:00 AM MST - 12:00 PM MST
Sky Clear
6sm
120° 6kts
VFR
12:00 PM MST - 5:00 PM MST
Sky Clear
6sm
250° 8kts
KIWA 312320Z 0100/0124 27008KT P6SM FEW250
   FM010700 12006KT P6SM SKC
   FM011900 25008KT P6SM SKC
P13
Domestic
4/18/241526Z !PRC 04/158 P13 RWY 27 RWY END ID LGT U/S 2404181526-2410182111EST
4/18/241525Z !PRC 04/157 P13 RWY 09 PAPI U/S 2404181525-2410182111EST
4/18/241523Z !PRC 04/156 P13 RWY 09 RWY END ID LGT U/S 2404181523-2410182111EST
4/12/241417Z !PRC 04/114 P13 RWY 27 PAPI UNUSABLE 2404121417-2410142111EST
2/27/240454Z !PRC 02/363 P13 SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2402270454-2406282200EST
No
UNATNDD
SAN CARLOS APACHE TRIBE
PO BOX O
SAN CARLOS, AZ 85550
Phone: 928-475-2361
MARVIN MULL JR.
C/O SAN CARLOS APACHE TRIBE, P.O. BOX O
SAN CARLOS, AZ 85550
Phone: 928-475-3222
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
PRC
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
2
0
0
0
0
0
None
None
None
None
None

Runway 09/27

6500 ft. x 100 ft.
ASPH
Fair
PFC
MED

60,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 33° 21' 18"N 33° 21' 05"N
Longitude 110° 40' 40"W 110° 39' 25"W
Elevation 3,261' 3,181'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1TWO HILLS SOUTH.
A110-2ALL RY HOLD & TWY EXIT SIGNS OTS INDEFLY.
A110-3PRIMARY SURFACE TO RWY. 9-27 HAS +5-12 FT. BRUSH 150-250 FT. ALONG SOUTH SIDE OF RWY.
A110-42 - 4 INCH WIDE CRACKS IN PARALLEL TAXIWAY PAVEMENT.
A110-5PRIMARY SURFACE 6-15 FT BRUSH, 60-250 FT FM CNTRLN ON SOUTH SIDE OF RWY; ISOLATED BRUSH 75-250 FT FM CNTRLN ON NORTH SIDE OF RWY.
SAN CARLOS APACHE (IATA: P13) is a public airport located in GLOBE, AZ.
