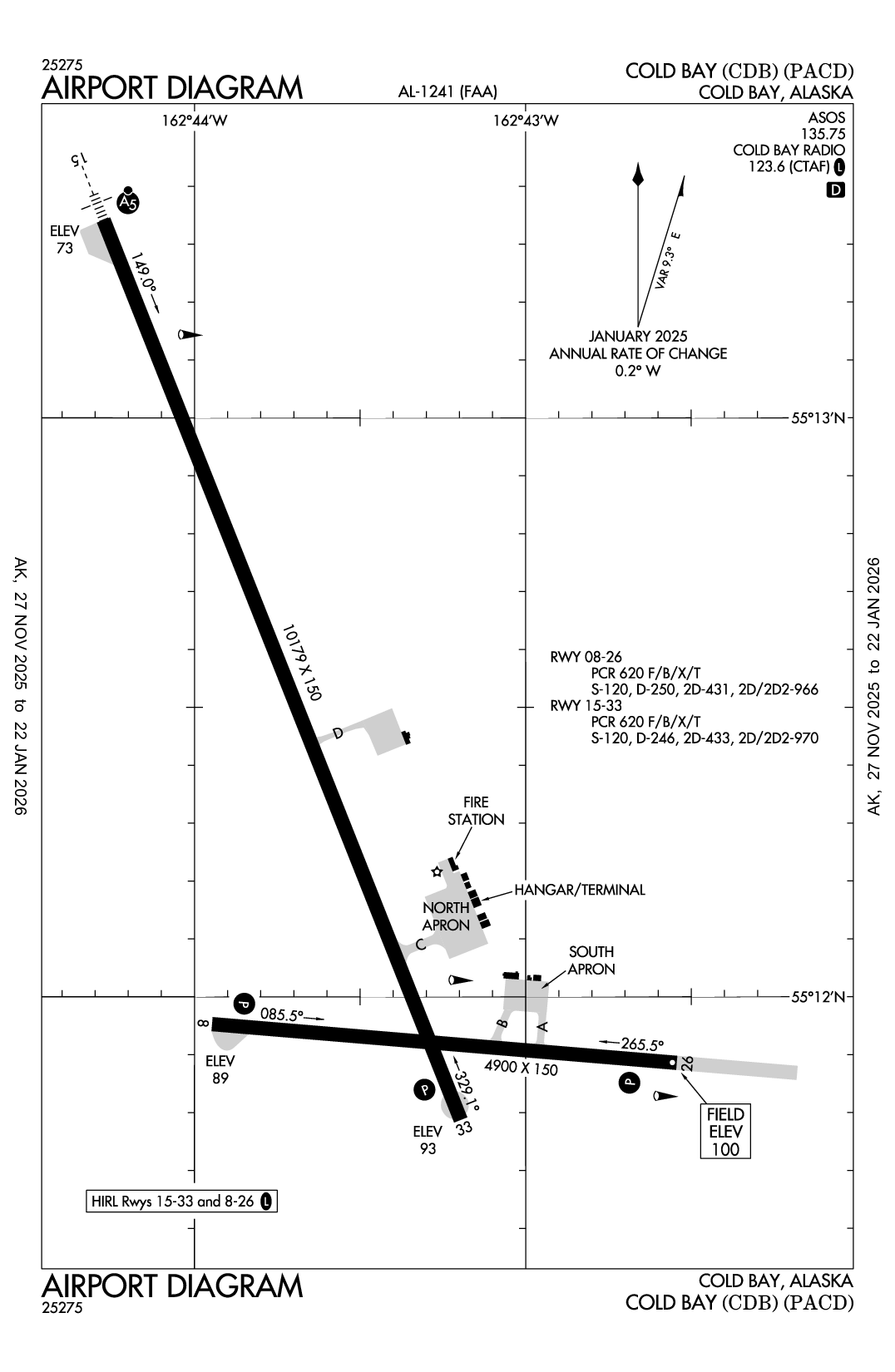

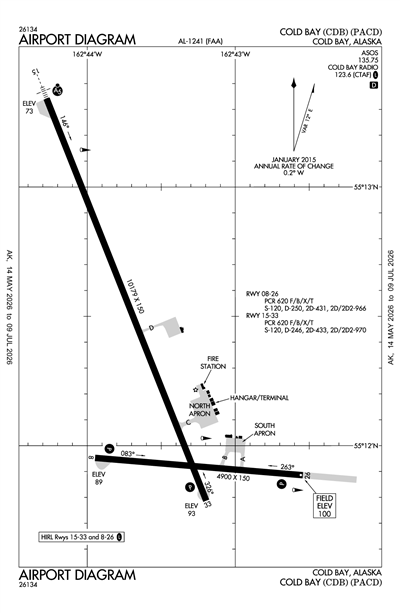

COLD BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PACD
COLD BAY
PublicPUB

0 miles N of COLD BAY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
55° 12' 21"N 162° 43' 34"W
100' MSL
1100' MSL
12E
JET A, 100LL
COLD BAY (CDB)
COLD BAY
ANCHORAGE (ZAN)
11/28/24-12/26/24
PACD IFR
3:12 AM AKST
Mist and Unknown Precipitation
Overcast 800'
2.5sm
36°F
34°F
28.80"Hg
250° 16kts
AO2 UPB12 P0000 T00220011 TSNO
PACD 231212Z AUTO 25016KT 2 1/2SM UP BR OVC008 02/01 A2880 RMK AO2 UPB12 P0000 T00220011 TSNO
Add Your Business

PACD FBOs

Promote Listing
Frosty Fuels
Phone: (907) 532-2467
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.15 8.35 7.01
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-532-2639
 135.75

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PACD
Mon, 12/23 2:34 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
IFR
3:00 AM AKST - 7:00 AM AKST
Overcast 500'
6sm
240° 15kts
MVFR
Temporary 3:00 AM AKST - 7:00 AM AKST
Broken 2,500'
Scattered 500'
N/A
Calm
MVFR
7:00 AM AKST - 12:00 PM AKST
Overcast 2,500'
Broken 1,500'
6sm
240° 10kts
MVFR
12:00 PM AKST - 3:00 PM AKST
Overcast 2,500'
Broken 1,500'
6sm
200° 8kts
MVFR
3:00 PM AKST - 3:00 AM AKST
Showers in vicinity
Overcast 2,500'
Broken 1,500'
6sm
140° 7kts
PACD 231134Z 2312/2412 24015KT P6SM OVC005
   TEMPO 2312/2316 SCT005 BKN025
   FM231600 24010KT P6SM BKN015 OVC025
   FM232100 20008KT P6SM BKN015 OVC025
   FM240000 14007KT P6SM VCSH BKN015 OVC025
PACD
Domestic
12/22/241614Z !CDB 12/179 CDB TWY ALL FICON WET OBS AT 2412221614. 2412221614-2412231614
12/22/241614Z !CDB 12/178 CDB APRON ALL FICON WET OBS AT 2412221614. 2412221614-2412231614
12/22/241614Z !CDB 12/177 CDB RWY 08 FICON 5/5/5 100 PCT WET OBS AT 2412221614. 2412221614-2412231614
12/22/241614Z !CDB 12/176 CDB RWY 15 FICON 5/5/5 100 PCT WET OBS AT 2412221614. 2412221614-2412231614
FDC
12/14/241941Z !FDC 4/6849 CDB SID COLD BAY, COLD BAY, AK.
WETSI TWO DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2412141941-2501141941EST
12/14/241941Z !FDC 4/6847 CDB IAP COLD BAY, COLD BAY, AK.
ILS OR LOC RWY 15, AMDT 19...
ADF AND DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 1200 THEN CLIMBING LEFT TURN TO 2200 DIRECT ELF NDB AND HOLD (ADF REQUIRED), CONTINUE CLIMB-IN-HOLD TO 2200,
CDB VOR OUT OF SERVICE. 2412141941-2501141941EST
12/14/241941Z !FDC 4/6846 CDB IAP COLD BAY, COLD BAY, AK.
LOC BC RWY 33, AMDT 11...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2412141941-2501141941EST
12/14/241941Z !FDC 4/6845 CDB ODP COLD BAY, COLD BAY, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
DEPARTURE PROCEDURE RWY 8, 15, 26, 33: ADF REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CDB VOR OUT OF SERVICE. 2412141941-2501141941EST
No
MON - SAT 0700 - 1800
ALASKA DOT&PF SOUTHCOAST REGION
P.O BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 465-1788
HAROLD KREMER
BOX 97
COLD BAY, AK 99571
Phone: 907-532-5000
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
CDB
--
ATCVT MALSR RWY 15; PAPI RWY 08, 26 & 33; HIRL RWY 08/26 & 15/33 - CTAF.
PHOTOCELL OPS.
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 08/26

4900 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
431,000lbs
966,000lbs
  Runway 08 Runway 26
True Heading 95°275°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 11' 57"N 55° 11' 53"N
Longitude 162° 43' 57"W 162° 42' 33"W
Elevation 89' 100'
Threshold Crossing Height 38 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

10179 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
246,000lbs
433,000lbs
970,000lbs
  Runway 15 Runway 33
True Heading 158°338°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 55° 13' 20"N 55° 11' 47"N
Longitude 162° 44' 16"W 162° 43' 12"W
Elevation 72' 93'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1SNOW, ICE REMOVAL & ARPT HAZ RPRTG DURG DUTY HR UNLESS PRIOR ARNGMT IN WRITING - AMGR.
A110-10PERSONNEL & EQUIP ON RWY.
A110-14ARPT SAND LRGR GRADE THAN FAA RCMDD/SEE AC150/5200-30.
A110-15WX CAMERA AVBL - HTTPS://WEATHERCAMS.FAA.GOV
A110-16ROTG BCN UNMON WHEN FSS UNMANNED.
A110-17NWS BALLOON LAUNCH FAC LCTD ON ARPT; SEE INSIDE BACK COVER FOR DETAILS.
A110-2BIRDS INVOF ALL RWY APCH ENDS.
A110-3BRAKELOCK TURNS NA.
A110-5CFR INDEX B; MAY BE REDUCED FOR ACFT LESS THAN 90 FT.
A110-7NO CUSTOMS AVBL; 24-48 HR WRITTEN PPR FOR FOREIGN ARR RFLG STOPS - FAX 907-271-2684 OR 907-271-2686.
A110-9UNLGTD TWR 0.4 NM N; UNLGTD TWR 0.9 NM S; UNLGTD TWR 4.8 NM NW.
COLD BAY (ICAO: PACD, IATA: CDB) is a public airport located in COLD BAY, AK.
