iFlightPlanner



...

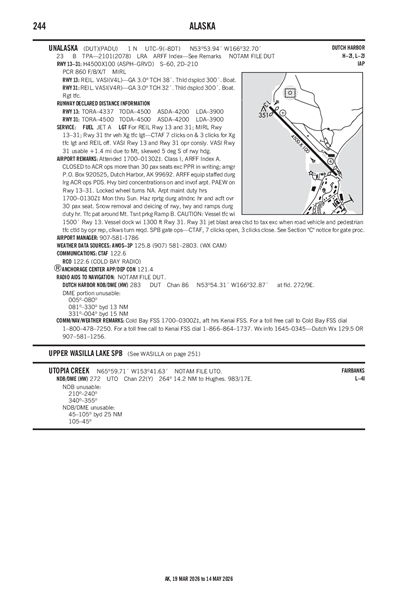

UNALASKA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PADU
UNALASKA
PublicPUB

1 miles N of UNALASKA, AK
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
53° 53' 56"N 166° 32' 42"W
23' MSL
2101' MSL
09E
JET A
COLD BAY (CDB)
DUTCH HARBOR
ANCHORAGE (ZAN)
11/28/24-12/26/24
PADU MVFR
2:56 AM AKST
Overcast 3,000'
10sm
39°F
30°F
28.93"Hg
250° 8kts
AO2 SLP796 60000 70007 T00391011 10039 20028 58001
PADU 231156Z AUTO 25008KT 10SM OVC030 04/M01 A2893 RMK AO2 SLP796 60000 70007 T00391011 10039 20028 58001

PADU FBOs

PenAir
Phone: (907) 581-1383
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.6

AWOS-3P

AWOS-3P
907-581-2803
125.8

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PADU
Mon, 12/23 2:34 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
MVFR
3:00 AM AKST - 12:00 PM AKST
Overcast 3,500'
Broken 2,500'
6sm
280° 8kts
VFR
12:00 PM AKST - 5:00 PM AKST
Broken 3,500'
Scattered 2,500'
6sm
160° 5kts
MVFR
5:00 PM AKST - 9:00 PM AKST
Light Rain
Overcast 2,500'
Scattered 1,500'
Few 700'
5sm
100° 15kts
Gusts 25kts
MVFR
9:00 PM AKST - 3:00 AM AKST
Light Rain
Broken 1,500'
Scattered 700'
4sm
070° 15kts
Gusts 25kts
PADU 231134Z 2312/2412 28008KT P6SM BKN025 OVC035
   FM232100 16005KT P6SM SCT025 BKN035
   FM240200 10015G25KT 5SM -RA FEW007 SCT015 OVC025
   FM240600 07015G25KT 4SM -RA SCT007 BKN015
PADU
Domestic
12/22/241737Z !DUT 12/075 DUT APRON ALL FICON WET OBS AT 2412221737. 2412221737-2412231737
12/22/241737Z !DUT 12/074 DUT TWY ALL FICON WET OBS AT 2412221737. 2412221737-2412231737
No
0800-1630
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112500
JUNEAU, AK 99811-2500
Phone: 907-465-4512
DALE RUCKMAN
PO BOX 920525
DUTCH HARBOR, AK 99692
Phone: 907-581-1786
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
DUT
--
FOR REIL RWY 13 & 31; MIRL RWY 13/31 - STOP LGT FOR VEH TFC CROSSING RWY 31 THR; KEY 122.6 - 7 TIMES FOR ON; 3 TIMES FOR STOP LGT & REIL OFF. VASI RWY 13 & 31 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 13/31

4500 ft. x 100 ft.
ASPH
Fair
GRVD
MED

60,000lbs
--
210,000lbs
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 53° 54' 12"N 53° 53' 40"N
Longitude 166° 33' 08"W 166° 32' 16"W
Elevation 23' 14'
Threshold Crossing Height 38 ft. AGL 32 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator V4L V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1TRANSIENT ACFT MUST PARK ON RAMP B.
A110-10FOR SEAPLANE GATE OPERATION KEY 122.8 - 7 TIMES TO OPEN 3 TIMES TO CLOSE; GATE CLOSES AUTOMATICALLY AFTER 5 MINUTES. SEE SECTION "C" NOTICES FOR GATE CONTROL PROCEDURE.
A110-11PERSONNEL AND EQUIPMENT MAY BE WORKING ON THE RWY AT ANY TIME.
A110-13DO NOT PERFORM LOCKED WHEEL TURNS ON RWY 13/31.
A110-14TRAFFIC PATTERN AROUND MOUNTAIN.
A110-15VASI RIGHT SIDE OF RWY SKEWED 5 DEG SOUTH OF RWY HEADING .
A110-16WX INFORMATION AVBL ON 129.5 (CALL SIGN DUTCH WX) OR PH: 907-581-1256, 0745-1845 HRS.
A110-18WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
A110-19BE ALERT: VESSEL TRAFFIC WITHIN 1500 FT FM RWY 13. VESSEL FUELING DOCK WITHIN 1300 FT FM RWY 31.
A110-2ARPT AREA SUBJECT TO MODERATE TO EXTREME CONCENTRATIONS OF BIRDS.
A110-4SNOW REMOVAL & DEICING OF RWY, TWY & RAMPS ONLY PERFORMED DURING ATTENDANCE DUTY HRS.
A110-5ARFF EQUIP STAFFED DURG PERIODS OF LARGE AIR CARRIER OPERATIONS ONLY.
A110-6ARPT HAZARD REPORTING ONLY PERFORMED DURING ATTENDANCE DUTY HOURS AND FOR OVER 30 PASSENGER SEAT ACFT.
A110-7JET BLAST AREA AER 31 CLSD TO TAXIING ACFT EXCP WHEN ROAD VEHICLE & PEDESTRIAN TFC IS CONTROLLED BY OPERATORS REPRESENTATIVE. CLOCKWISE TURN REQUESTED.
UNALASKA (ICAO: PADU, IATA: DUT) is a public airport located in UNALASKA, AK.
