iFlightPlanner



...

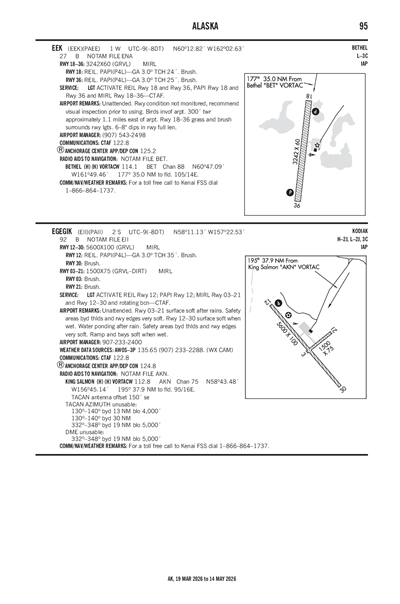

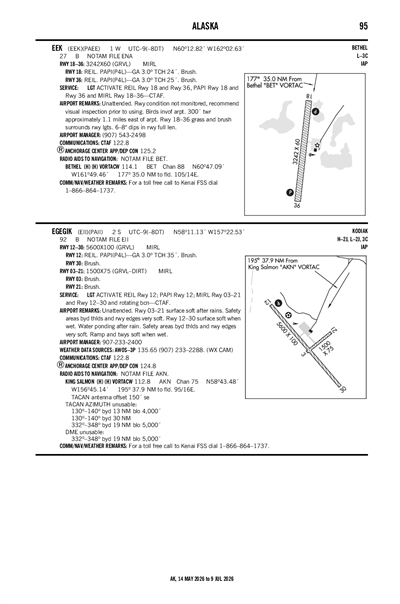

EEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAEE
EEK
PublicPUB

1 miles W of EEK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 12' 49"N 162° 02' 38"W
26' MSL
1026' MSL
11E
None Listed
KENAI (ENA)
BETHEL
ANCHORAGE (ZAN)
12/26/24-1/23/25
PAQH (28nm) IFR
7:11 AM AKST
Light Snow and Mist
Overcast 600'
6sm
28°F
28°F
29.59"Hg
230° 19kts
Gusts 25kts
AO2 SNB1557 CIG 004V008 P0000 FZRANO
PAQH 221611Z AUTO 23019G25KT 6SM -SN BR OVC006 M02/M02 A2959 RMK AO2 SNB1557 CIG 004V008 P0000 FZRANO
Add Your Business

PAEE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PABE (35nm)
Wed, 1/22 2:32 AM AKST
Wed, 1/22 3:00 AM AKST - Thu, 1/23 3:00 AM AKST
MVFR
3:00 AM AKST - 6:00 AM AKST
Light Snow and Mist
Overcast 1,500'
Scattered 800'
5sm
150° 7kts
IFR
6:00 AM AKST - 10:00 AM AKST
Light Snow and Mist
Overcast 800'
5sm
190° 12kts
MVFR
10:00 AM AKST - 3:00 PM AKST
Overcast 1,500'
Scattered 800'
6sm
220° 15kts
IFR
3:00 PM AKST - 5:00 PM AKST
Light Snow and Mist
Overcast 800'
3sm
160° 12kts
IFR
5:00 PM AKST - 10:00 PM AKST
Light Snow and Rain and Mist
Overcast 800'
4sm
150° 14kts
Gusts 22kts
IFR
10:00 PM AKST - 3:00 AM AKST
Light Rain and Snow and Mist
Overcast 800'
4sm
160° 20kts
Gusts 30kts
PABE 221132Z 2212/2312 15007KT 5SM -SN BR SCT008 OVC015
   FM221500 19012KT 5SM -SN BR OVC008
   FM221900 22015KT P6SM SCT008 OVC015
   FM230000 16012KT 3SM -SN BR OVC008
   FM230200 15014G22KT 4SM -SNRA BR OVC008
   FM230700 16020G30KT 4SM -RASN BR OVC008
PAEE
Domestic
12/24/241801Z !ENA 12/458 EEK RWY 36 PAPI U/S 2412241801-2512281500EST
10/31/242342Z !ENA 10/247 EEK RWY 36 RWY END ID LGT U/S 2410312342-2503011500EST
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: (907) 269-0783
JOSEPH LARAUX
BOX 505
BETHEL, AK 99559
Phone: (907) 543-2498
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
ENA
--
ACTVT REIL RWY 18, 36; PAPI RWY 18, 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 18/36

3242 ft. x 60 ft.
GRVL
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 189°9°
Traffic Pattern Left Left
Markings
Markings Condition GOOD GOOD
Latitude 60° 13' 05"N 60° 12' 34"N
Longitude 162° 02' 33"W 162° 02' 43"W
Elevation 25' 23'
Threshold Crossing Height 24 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RWY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO USING.
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-6BIRDS INVOF ARPT.
A110-7300 FT TOWER APPX 1.1 MILES EAST OF ARPT.
A110-86-8 IN DIPS IN RWY FULL LENGTH.
EEK (ICAO: PAEE, IATA: EEK) is a public airport located in EEK, AK.
