PAEH
CAPE NEWENHAM LRRS
Private
PVT
1 miles SE of CAPE NEWENHAM, AK
View on
Map
Status
Operational
Coordinates
58° 38' 53"N
162° 03' 50"W
Elevation
531' MSL
Pattern Alt
1531' MSL
Mag Variation
12E
Fuel
None Listed
FSS
KENAI (ENA)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
11/28/24-12/26/24
PAEH
LIFR
3:05 AM AKST
RAW
Overcast 2,400'
Broken 300'
Viz
10sm
Temp
30°F
Dew
28°F
Pres
28.79"Hg
Wind
010° 2kts
RMK
AO2 SLP758 $
PAEH 231205Z AUTO 01002KT 10SM BKN003 OVC024 M01/M02 A2879 RMK AO2 SLP758 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
PAEH FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
126.2
No communication frequencies available for this airport.

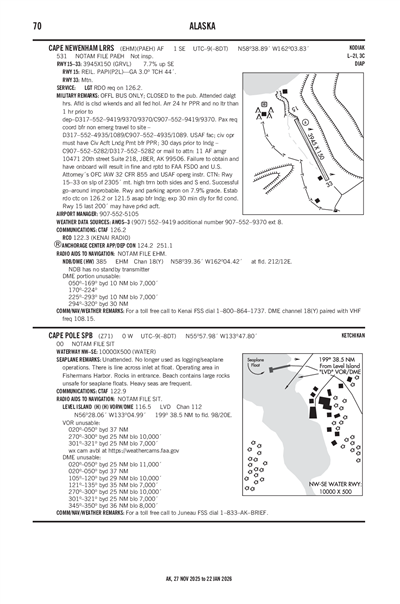

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
CABNN THREE (OBSTACLE) (RNAV)
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
NDB/DME RWY 15
RNAV (GPS) RWY 15
Terminal Area Forecast
No TAF is available for this location.
PAEH
Military
9/26/24
2005Z
!PAEH V0695/24 EHM AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED RNAV (GPS) RWY 15 LNAV MDA MINIMA: CAT ABC 1320-3 864 (800-3). 2409262005-2504302359
ATC Tower
No
Attendance
DALGT
Owner
U.S. AIR FORCE
11 ACW, ELMENDORF AFB
ANCHORAGE, AK 99506-2270
Manager
COMMANDER
11 ACW, 6900 9TH ST. STE 301
ELMENDORF AFB, AK 99506-2270
Phone: 907-552-5105
FSS
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
NOTAM
PAEH
Light Schedule
--
Lights
RDO REQ ON 126.2.
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
Yes
Parking
None
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Cargo Handling
Runway 15/33
Dimensions
3945 ft. x 150 ft.
Surface Type
Surface Cond
GRVL
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 15
Runway 33
True Heading
164°
344°
Traffic Pattern
Left
Left
Markings
Markings Condition
Latitude
58° 39' 12"N
58° 38' 35"N
Longitude
162° 04' 00"W
162° 03' 39"W
Elevation
226'
531'
Threshold Crossing Height
44 ft. AGL
--
Visual Glide Path Angle
3°
--
Visual Slope Indicator
P2L
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
Yes
No
A110-10
ARR 24 HR PPR & NO LTR THAN 1 HR PRIOR TO DEP - D317-552-9419/9370/C907-552-9419/9370.
A110-11
PAX REQ COORD BFR NON EMERG TRAVEL TO SITE - D317-552-4935/1089/C907-552-4935/1089.
A110-13
AFLD CLSD WKEND & FED HOL.
A110-5
RWY & PRKG APRON ON 7.9 PCT GRADE.
A110-6
ESTAB RDO CTC ON 126.2 OR 121.5 ASAP BFR LNDG; EXP 30 MIN DLY FOR FLD COND.
A110-9
USAF FAC; CIVIL OPR MUST HAVE CIV ACFT LNDG PMT BFR PPR; 30 DAYS PRIOR TO LNDG - C907-552-5282/D317-552-5282 OR MAIL TO ATTN: 11 AF AMGR 10471 20TH STREET SUITE 218, JBER AK, 99506. FAILURE TO HAVE ONBOARD WILL RESULT IN FINE & RPTD TO FAA FSDO & U.S. ATTORNEYS OFC IAW 32 CFR 855 & USAF OPERG INSTR.
CAPE NEWENHAM LRRS (ICAO: PAEH, IATA: EHM) is a private airport located in CAPE NEWENHAM, AK.
