PAHN
HAINES
PublicPUB

3 miles W of HAINES, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
59° 14' 38"N 135° 31' 25"W
15' MSL
1015' MSL
20E
JET A, 100LL
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
11/28/24-12/26/24
PAHN MVFR
3:16 AM AKST
Light Rain
Overcast 3,700'
Broken 3,000'
Scattered 700'
7sm
36°F
35°F
29.12"Hg
Calm
AO2 UPB03E05 P0000 T00220017 TSNO
PAHN 231216Z AUTO 00000KT 7SM -RA SCT007 BKN030 OVC037 02/02 A2912 RMK AO2 UPB03E05 P0000 T00220017 TSNO
Add Your Business

PAHN FBOs

Promote Listing
Delta Western
UNICOM: 122.9
Phone: (907) 766-3190
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 12/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 10.50 7.85
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

ASOS

ASOS
907-766-2519
 135.7

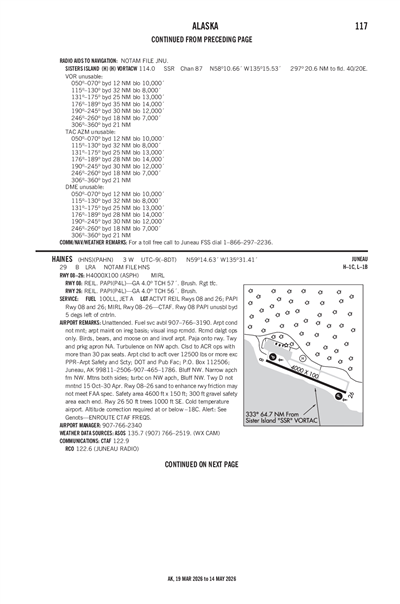

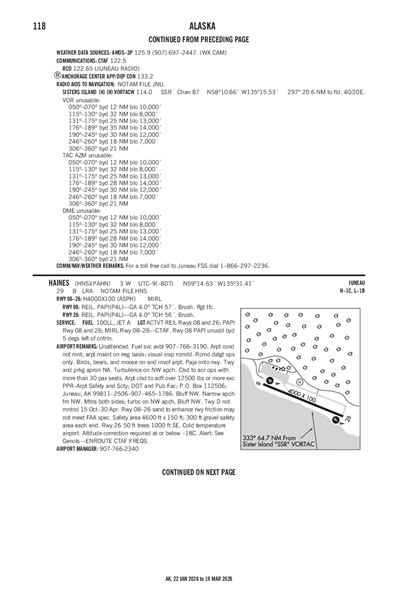

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAHN
Mon, 12/23 2:23 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
MVFR
3:00 AM AKST - 7:00 AM AKST
Light Rain and Mist
Overcast 3,500'
Scattered 1,400'
4sm
300° 5kts
MVFR
7:00 AM AKST - 1:00 PM AKST
Light Rain and Mist
Overcast 1,500'
Scattered 700'
4sm
110° 12kts
Gusts 20kts
VFR
1:00 PM AKST - 8:00 PM AKST
Light Rain and Mist
Overcast 3,500'
Scattered 1,500'
Scattered 700'
6sm
090° 11kts
Gusts 20kts
MVFR
8:00 PM AKST - 3:00 AM AKST
Light Rain and Mist
Overcast 1,500'
Scattered 700'
4sm
300° 8kts
PAHN 231123Z 2312/2412 30005KT 4SM -RA BR SCT014 OVC035
   FM231600 11012G20KT 4SM -RA BR SCT007 OVC015
   FM232200 09011G20KT 6SM -RA BR SCT007 SCT015 OVC035
   FM240500 30008KT 4SM -RA BR SCT007 OVC015 AMD LTD TO CLD VIS AND WIND
PAHN
Domestic
12/22/241735Z !HNS 12/023 HNS RWY 08 FICON 1/1/1 100 PCT ICE SANDED OBS AT 2412221735. 2412221735-2412231735
9/28/240457Z !HNS 09/010 HNS RWY 08 RWY END ID LGT U/S 2409280457-2501261400EST
1/26/222152Z !HNS 01/034 HNS RWY 26 RUNWAY END ELEVATION 26.4 FT 2201262152-PERM
1/26/222151Z !HNS 01/033 HNS RWY 08 RUNWAY END ELEVATION 29.5 FT 2201262151-PERM
1/26/222148Z !HNS 01/032 HNS AD AP FIELD ELEVATION 29.5 FT 2201262148-PERM
FDC
1/25/231243Z !FDC 3/6985 HNS SPECIAL HAINES, HAINES, AK.
RNAV (GPS) - A, AMDT 2...
PROCEDURE NA AT NIGHT.
CIRCLING CAT A/B MDA 1640/HAA 1610. APT ELEV 30.
2301251243-2501251243EST
No
UNATNDD
ALASKA DOT & PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811-2506
Phone: 907-465-4512
MATT BORON
BOX 302
HAINES, AK 99827
Phone: 907-766-2340
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
HNS
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 08/26

4000 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 110°290°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 59° 14' 45"N 59° 14' 31"N
Longitude 135° 32' 01"W 135° 30' 49"W
Elevation 15' 12'
Threshold Crossing Height 57 ft. AGL 56 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading 49°229°
Traffic Pattern
Markings
Markings Condition
Latitude 59° 14' 44"N N/A
Longitude 135° 31' 25"W N/A
Elevation 51' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-12RCMD DALGT OPS ONLY.
A110-14ALERT: SEE GENOTS - ENROUTE CTAF FREQS.
A110-15WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17ARPT CLSD TO ACFT OVER 12500 LBS OR MORE EXC PPR - ARPT SAFETY & SCTY; DOT & PUB FAC; P.O. BOX 112506; JUNEAU AK 99811-2506 - 907-465-1786.
A110-19TWY D NOT MNTND 15 OCT-30 APR.
A110-2NARROW APCH FM NW, MTNS BOTH SIDES; TURBC ON NW APCH, BLUFF NW.
A110-20FUEL SVC AVBL - 907-766-3190.
A110-21TWY & PRKG APRON NA.
A110-22COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -17C.
A110-3BIRDS, BEARS & MOOSE ON & INVOF ARPT.
A110-4SAFETY AREA 4600 FT X 150 FT; 300 FT GRAVEL SAFETY AREA EACH END.
A110-6ARPT COND NOT MNT; ARPT MAINT ON IREG BASIS; VISUAL INSP RCMDD.
A110-8PAJA ONTO RWY.
A110-9CLSD TO ACR OPS WITH MORE THAN 30 PAX SEATS.
HAINES (ICAO: PAHN, IATA: HNS) is a public airport located in HAINES, AK.
