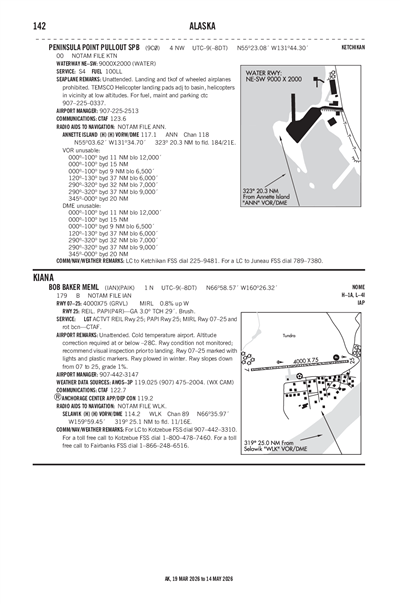

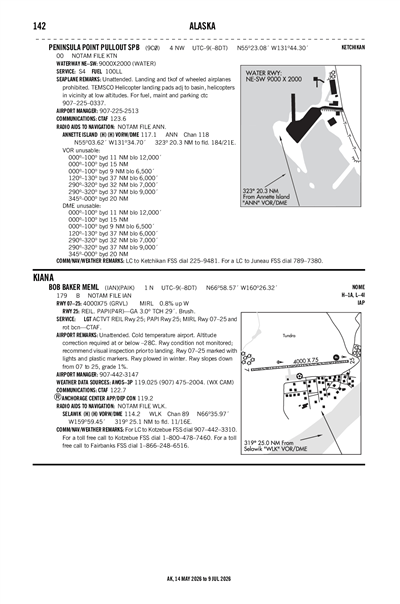

BOB BAKER MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAIK
BOB BAKER MEML
PublicPUB

1 miles N of KIANA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
66° 58' 34"N 160° 26' 19"W
179' MSL
1179' MSL
12E
None Listed
KOTZEBUE (OTZ)
NOME
ANCHORAGE (ZAN)
12/26/24-1/23/25
PAIK IFR
7:20 AM AKST
Light Snow and Mist
Overcast 2,800'
Broken 2,300'
Broken 1,500'
1.25sm
19°F
18°F
29.46"Hg
070° 3kts
AO2 P0000 FZRANO
PAIK 221620Z AUTO 07003KT 1 1/4SM -SN BR BKN015 BKN023 OVC028 M07/M08 A2946 RMK AO2 P0000 FZRANO
Add Your Business

PAIK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.7

AWOS-3P

AWOS-3P
907-475-2004
 119.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAIK
Domestic
1/21/251801Z !IAN 01/049 IAN APRON ALL FICON COMPACTED SN OBS AT 2501211801. 2501211801-2501221801
1/21/251801Z !IAN 01/048 IAN TWY ALL FICON COMPACTED SN OBS AT 2501211801. 2501211801-2501221801
1/21/251800Z !IAN 01/047 IAN RWY 25 FICON 100 PCT COMPACTED SN OBS AT 2501211800. 2501211800-2501221800
1/21/251800Z !IAN 01/046 IAN RWY 07 FICON 100 PCT COMPACTED SN OBS AT 2501211800. 2501211800-2501221800
1/13/252023Z !IAN 01/025 IAN SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2501132023-2503291500EST
12/18/242041Z !IAN 12/051 IAN AD AP ABN NOT STD WHITE ONLY 2412182041-2503010900
FDC
1/21/251543Z !FDC 5/5247 IAN IAP BOB BAKER MEML, KIANA, AK.
RNAV (GPS)-A, ORIG...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PASK ALTIMETER SETTING AND INCREASE ALL MDA 100 FEET. IAN AWOS OUT OF SERVICE.
2501211543-2504291543EST
1/21/251543Z !FDC 5/5246 IAN IAP BOB BAKER MEML, KIANA, AK.
RNAV (GPS) RWY 25, AMDT 1A...
NOTE: CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PASK ALTIMETER SETTING AND INCREASE LPV335.0 DA TO 531 FEET; INCREASE LPV DA TO 720 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE LNAVVNAV DA TO 888 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 100 FEET. IAN AWOS OUT OF SERVICE.
2501211543-2504291543EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
ALVIN WERNEKE
BOX 55
KOTZEBUE, AK 99752
Phone: 907-442-3147
KOTZEBUE FSS (OTZ)
Toll Free: 1-800-478-7460
IAN
--
ACTVT REIL RWY 25; PAPI RWY 25; MIRL RWY 07/25 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Charter Service

Runway 07/25

4000 ft. x 75 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 85°265°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 66° 58' 32"N 66° 58' 36"N
Longitude 160° 27' 09"W 160° 25' 29"W
Elevation 179' 147'
Threshold Crossing Height -- 29 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-2RWY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3RWY PLOWED IN WINTER.
A110-4WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-5COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -28C.
BOB BAKER MEML (ICAO: PAIK, IATA: IAN) is a public airport located in KIANA, AK.
