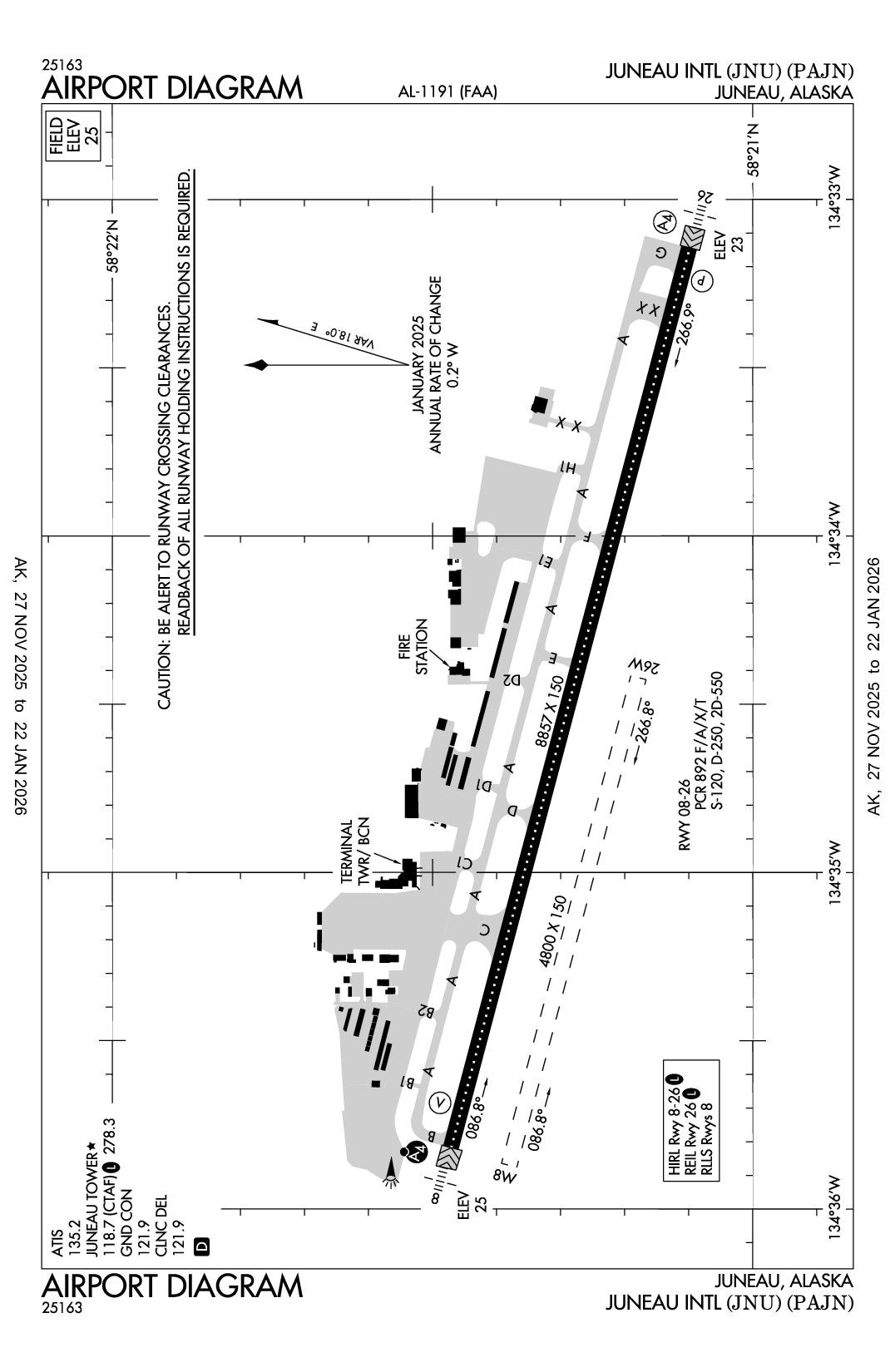

JUNEAU INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAJN
JUNEAU INTL
PublicPUB

7 miles NW of JUNEAU, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
58° 21' 17"N 134° 34' 42"W
25' MSL
1025' MSL
20E
JET A-1+, 100LL
JUNEAU (JNU)
JUNEAU
ANCHORAGE (ZAN)
11/28/24-12/26/24
PAJN MVFR
2:53 AM AKST
Light Rain and Mist
Overcast 5,000'
Broken 3,500'
Few 100'
5sm
36°F
35°F
29.14"Hg
070° 3kts
AO2 SLP869 P0000 60007 70013 T00220017 10033 20017 53009 $
PAJN 231153Z 07003KT 5SM -RA BR FEW001 BKN035 OVC050 02/02 A2914 RMK AO2 SLP869 P0000 60007 70013 T00220017 10033 20017 53009 $
Add Your Business

PAJN FBOs

Promote Listing
Aero Services
UNICOM: 122.95
Phone: (907) 789-0055
Fax: (907) 789-5103
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.98 9.27 9.43
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.7

ATIS

ATIS
 135.2

Clearance Delivery

CD/P
 121.9

Ground

GND/P
 121.9

Tower

LCL/P
 118.7
LCL/S
SEASONAL USE ONLY
 120.7

Other

NG OPS
 64.7
NG OPS
 124.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAJN
Mon, 12/23 2:23 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
VFR
3:00 AM AKST - 5:00 AM AKST
Light Rain and Mist
Overcast 3,500'
Scattered 800'
6sm
110° 5kts
Shear 120° 30kts @ 2000'
MVFR
5:00 AM AKST - 9:00 AM AKST
Light Rain and Mist
Overcast 2,500'
Scattered 800'
4sm
100° 12kts
Gusts 18kts
Shear 170° 30kts @ 2000'
MVFR
9:00 AM AKST - 12:00 PM AKST
Light Rain and Mist
Overcast 2,500'
Scattered 800'
6sm
110° 10kts
Gusts 15kts
Shear 170° 30kts @ 2000'
VFR
12:00 PM AKST - 7:00 PM AKST
Light Rain
Overcast 3,500'
6sm
100° 8kts
MVFR
7:00 PM AKST - 12:00 AM AKST
Light Rain and Mist
Overcast 2,500'
Scattered 800'
4sm
100° 6kts
Shear 130° 40kts @ 2000'
MVFR
12:00 AM AKST - 3:00 AM AKST
Light Rain and Mist
Overcast 1,500'
Scattered 800'
4sm
100° 9kts
Shear 140° 35kts @ 2000'
PAJN 231123Z 2312/2412 11005KT 6SM -RA BR SCT008 OVC035 WS020/12030KT
   FM231400 10012G18KT 4SM -RA BR SCT008 OVC025 WS020/17030KT
   FM231800 11010G15KT 6SM -RA BR SCT008 OVC025 WS020/17030KT
   FM232100 10008KT P6SM -RA OVC035
   FM240400 10006KT 4SM -RA BR SCT008 OVC025 WS020/13040KT
   FM240900 10009KT 4SM -RA BR SCT008 OVC015 WS020/14035KT
PAJN
Domestic
12/23/240913Z !JNU 12/533 JNU APRON ALL FICON WET SANDED BA GOOD TO MEDIUM OBS AT 2412230913. 2412230913-2412240913
12/23/240912Z !JNU 12/532 JNU TWY ALL FICON WET SANDED BA GOOD TO MEDIUM OBS AT 2412230912. 2412230912-2412240912
12/23/240912Z !JNU 12/531 JNU RWY 08 FICON 5/5/5 100 PCT WET OBS AT 2412230912. 2412230912-2412240912
12/20/241957Z !JNU 12/476 JNU NAV LOC TYPE DIRECTIONAL AID RWY 08 LOC/DME U/S 2412201957-2501302359
12/6/240302Z !JNU 12/149 JNU RWY 26 PAPI U/S 2412060302-2502281500EST
11/25/241613Z !JNU 11/471 JNU RWY 08W/26W WATERLANE CLSD 2411251613-2412312359
8/27/242008Z !JNU 08/052 JNU OBST TOWER LGT (ASR 1028325) 581804.00N1342632.00W (5.4NM ESE JNU) 285.8FT (277.9FT AGL) U/S 2408272008-2502272359
6/19/241600Z !JNU 06/049 JNU AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 5817N13422W (THANE) SFC-4200FT AGL 2406191600-2412312359
FDC
12/18/240726Z !FDC 4/8252 JNU SID JUNEAU INTL, JUNEAU, AK.
JUNEAU (OBSTACLE) SIX DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JDL LDA/DME OUT OF SERVICE. 2412180726-2501030100EST
12/18/240726Z !FDC 4/8251 JNU ODP JUNEAU INTL, JUNEAU, AK.
ASORT TWO DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
JDL LDA/DME OUT OF SERVICE. 2412180726-2501030100EST
9/25/242004Z !FDC 4/0533 JNU SID JUNEAU INTL, JUNEAU, AK.
JUNEAU (OBSTACLE) SIX DEPARTURE...
LEVEL ISLAND TRANSITION, SUMNER STRAIT TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SQM NDB OUT OF SERVICE. 2409252004-2505072004EST
9/21/240136Z !FDC 4/8830 JNU SPECIAL JUNEAU INTL, JUNEAU, AK.
LDA Z RWY 8, AMDT 11A...
PROCEDURE NA, PER FLIGHT CHECK.
2409210136-2609202330EST
9/5/241408Z !FDC 4/0941 JNU SID JUNEAU INTL, JUNEAU, AK.
JUNEAU (OBSTACLE) SIX DEPARTURE...
DISREGARD ALL REFERENCES TO A-15. 2409051408-2609051408EST
3/27/242018Z !FDC 4/3036 JNU SID JUNEAU INTL, JUNEAU, AK.
JUNEAU (OBSTACLE) SIX DEPARTURE...
TAKEOFF MINIMUMS: RWY 8W, 26W: NA - VFR ONLY
ALL OTHER DATA REMAINS AS PUBLISHED. 2403272018-2603252018EST
3/27/242018Z !FDC 4/3035 JNU ODP JUNEAU INTL, JUNEAU, AK.
ASORT TWO DEPARTURE ...
TAKEOFF MINIMUMS: RWY 8W, 26W: NA - VFR ONLY
ALL OTHER DATA REMAINS AS PUBLISHED. 2403272018-2603252018EST
3/27/242018Z !FDC 4/3034 JNU ODP JUNEAU INTL, JUNEAU, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF MINIMUMS: RWY 8W, 26W: NA - VFR ONLY
ALL OTHER DATA REMAINS AS PUBLISHED. 2403272018-2603252018EST
Yes
ALL
CITY OF JUNEAU
155 S SEWARD
JUNEAU, AK 99801
Phone: 907-789-7821
PATTY WAHTO
1873 SHELL SIMMONS DR, SUITE 200
JUNEAU, AK 99801
Phone: 907-789-7821
JUNEAU FSS (JNU)
Toll Free: 1-866-297-2236
JNU
--
FOR HIRL RWY 08/26, MALSF RWY 08 & REIL RWY 26 CTC JNU ATCT ON FREQ 118.7. WHEN ATCT CLSD CTC JNU FSS ON FREQ 118.7. VASI RWY 08 & PAPI RWY 26 OPER 24 HRS.
N/A
Yes - Lighted
Yes
Yes
Buoy, Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 08/26

8857 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
--
  Runway 08 Runway 26
True Heading 105°285°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 58° 21' 28"N 58° 21' 06"N
Longitude 134° 35' 49"W 134° 33' 09"W
Elevation 25' 23'
Threshold Crossing Height 38 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V2L P4L
Approach Lights MALSF MALS
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 08W/26W

4800 ft. x 150 ft.

WATER
NONE


--
--
--
--
  Runway 08W Runway 26W
True Heading 105°285°
Traffic Pattern
Markings
Markings Condition
Latitude 58° 21' 23"N 58° 21' 11"N
Longitude 134° 35' 52"W 134° 34' 25"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR LCL CALL TO JUNEAU FSS CALL 907-789-7380.
A110-11TRANSIENT DOCK AVBL FOR PUBLIC USE FOR UP TO SIX ACFT, SW CORNER.
A110-13SEE SPECIAL NOTICES AND GENERAL NOTICES FOR ADDITIONAL INFORMATION ON OPNS IN JUNEAU AREA.
A110-15LENA POINT, PEDERSON HILL AND SISTERS ISLAND WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-19RY 08/26 SAND USED TO ENHANCE RY FRICTION MAY NOT MEET FAA SPECS.
A110-20COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW 0C.
A110-21APRON TERMINAL RAMP CLSD TO ROTORCRAFT. APRON US CUSTOMS RAMP CLSD TO ACFT WITH WINGSPAN MORE THAN 79 FT INTL ACFT WITH WINGSPAN MORE THAN 79 FT AND ALL INTL ROTORCRAFT USE E-1 RAMP (NTL GUARD RAMP).
A110-3NATIONAL GUARD 24 HR PPR DUE TO LIMITED PARKING C907-789-3366. 0730-1600 WEEKDAYS CONTACT GUARD OPS 10 MIN PRIOR TO LANDING ON 124.65.
A110-4WILDLIFE & BIRDS ON & INVOF ARPT.
A110-5BATTLESHIP ISLAND RLLS GROUPING; CENTER LIGHT 582132.88N 1344012.22W. IJDL-LOCALIZER RLLS GROUPING; CENTER LIGHT 582132.02N 1343810.39W.
A110-6INCREASED HELICOPTER/LIGH ACFT ACTIVITY APR 15-OCT 1 ENTIRE LENGTH ON GASTINEAU CHANNEL & WITHIN 5 MILES OF ARPT.
A110-7PARAGLIDING ACTIVITY 3 MILES N OF ARPT INVOF THUNDER MOUNTAIN & OVER GASTINEAU CHANNEL NEARS DOWNTOWN APR 15-OCT 1 6000 FT & BLO.
A110-9TPA 1500 AGL FOR LARGE TURBINE ACFT; 1000 FT AGL FOR FIXED WING ACFT; 500 FT AGL FOR HELICOPTERS.
JUNEAU INTL (ICAO: PAJN, IATA: JNU) is a public airport located in JUNEAU, AK.
