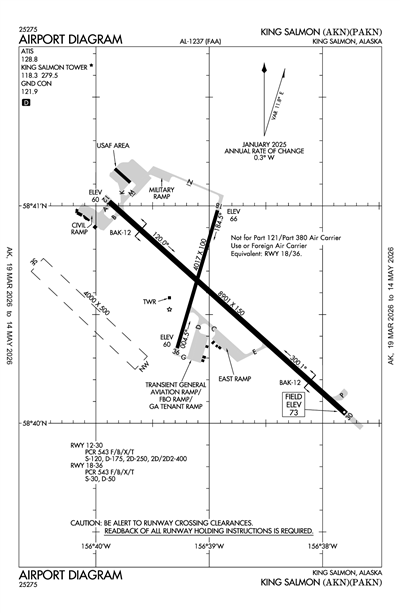

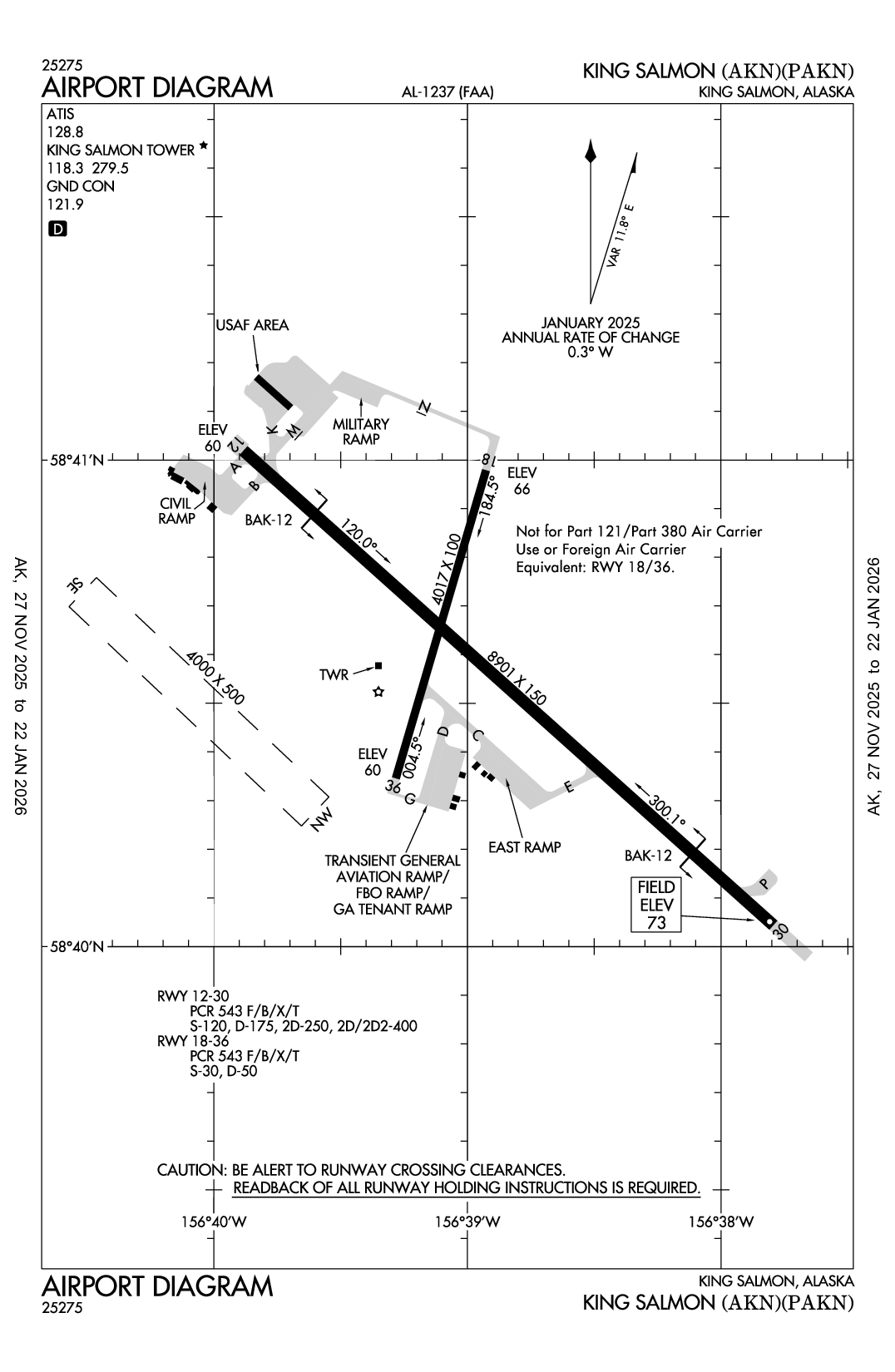

KING SALMON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKN
KING SALMON
PublicPUB

0 miles SE of KING SALMON, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
58° 40' 35"N 156° 38' 55"W
73' MSL
1073' MSL
11E
JET A, 100LL
KENAI (ENA)
KODIAK
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAKN VFR
8:54 PM AKDT
Broken 11,000'
Scattered 9,000'
Few 7,000'
10sm
54°F
35°F
29.56"Hg
100° 11kts
AO2 SLP009 T01220017 $
PAKN 010454Z 10011KT 10SM FEW070 SCT090 BKN110 12/02 A2956 RMK AO2 SLP009 T01220017 $
Add Your Business

PAKN FBOs

Promote Listing
Coastal Fuels
UNICOM: 122.95
Phone: (907) 246-0525
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 11.40 8.36
Full Serve 9.00
Fuel Notes
Prices include tax
Promote Listing
Egli Air Haul
UNICOM: 122.95
Phone: (907) 246-3554
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 12.50 10.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 121.9

ATIS

ATIS
 128.8

ASOS

ASOS
907-246-7506
 128.8

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAKN
Fri, 5/31 3:29 PM AKDT
Fri, 5/31 4:00 PM AKDT - Sat, 6/1 4:00 PM AKDT
VFR
4:00 PM AKDT - 10:00 PM AKDT
Overcast 8,000'
6sm
070° 10kts
Gusts 17kts
VFR
10:00 PM AKDT - 2:00 AM AKDT
Broken 6,000'
6sm
090° 6kts
VFR
2:00 AM AKDT - 9:00 AM AKDT
Light Rain
Broken 4,000'
6sm
090° 6kts
VFR
9:00 AM AKDT - 4:00 PM AKDT
Overcast 5,000'
6sm
060° 4kts
PAKN 312329Z 0100/0124 07010G17KT P6SM OVC080
   FM010600 09006KT P6SM BKN060
   FM011000 09006KT P6SM -RA BKN040
   FM011700 06004KT P6SM OVC050
PAKN
Domestic
5/30/241010Z !AKN 05/051 AKN NAV ILS RWY 12 LOC/GP/DME U/S 2405301010-2406221500EST
5/11/242302Z !AKN 05/020 AKN RWY 12 RVR U/S 2405112302-2406291500EST
4/10/242307Z !AKN 04/070 AKN RWY 12/30 BAK-12 ARRESTING SYSTEM U/S 2404102307-2406110100
3/9/240400Z !AKN 03/063 AKN COM REMOTE COM OUTLET 243.0 U/S DLY 0400-1600 2403090400-2406291600EST
2/21/240649Z !AKN 02/158 AKN RWY 12 ALS U/S 2402210649-2501041500EST
FDC
5/31/242024Z !FDC 4/1424 AKN IAP U.S. DOD KING SALMON, KING SALMON, AK.
HI - ILS Z OR LOC Z RWY 12, AMDT 8...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AKN VORTAC OUT OF SERVICE. 2405312024-2406302024EST
5/31/242024Z !FDC 4/1423 AKN IAP KING SALMON, KING SALMON, AK.
ILS Y OR LOC Y RWY 12, AMDT 19...
LOC BC RWY 30, AMDT 6...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
AKN VORTAC AND AUB NDB OUT OF SERVICE.
2405312024-2406302024EST
Yes
0700-1700
ALASKA DOT&PF SOUTHCOAST REGION
PO BOX 112500
JUNEAU, AK 99811-2500
Phone: 907-465-4512
FLOYD WILSON
PO BOX 65
KING SALMON, AK 99613
Phone: 907-246-3325
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
AKN
--
WHEN ATCT CLSD ACTVT SSALR RWY 12; PAPI RWY 12 & 30; MIRL RWY 18/36; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
33
3
0
3
0
0
Major
Major
None
None
Cargo Handling

Runway 12/30

8901 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
67 /F/B/X/T
67,000lbs
90,000lbs
175,000lbs
335,000lbs
  Runway 12 Runway 30
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition POOR POOR
Latitude 58° 41' 02"N 58° 40' 04"N
Longitude 156° 39' 53"W 156° 37' 48"W
Elevation 60' 73'
Threshold Crossing Height 66 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR
Centerline Lights
Runway End Identifier Lights No

Runway 18/36

4017 ft. x 100 ft.
ASPH
Fair
GRVD
MED
66 /F/B/X/T
30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 196°16°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 58° 40' 60"N 58° 40' 22"N
Longitude 156° 38' 56"W 156° 39' 17"W
Elevation 66' 60'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway NW/SE

4000 ft. x 500 ft.

WATER
NONE


--
--
--
--
  Runway NW Runway SE
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FIGHTER ARR EXP RDCD SEPN; SIMILAR APCH CHARCS & DALGT 3000 FT; DISSIMILAR APCH CHARCS & NGT 6000 FT; AHD/BHND FRMN LNDG 6000 FT.
A110-11600 FT SAFETY AREA AER 12.
A110-12RCR DURG 11TH AF FIGHTER FLYING WINDOW; COORD RCR WITH KING SALMON OPS 907-439-3001/907-439-6000. OPS RSTRD TO LOW APCH/FSL ONLY.
A110-14FLIGHT ORIG OUTSIDE AK REFER TO USAF FCG; CSTMS NOT AVBL.
A110-15SNOW/ICE REMOVAL & ARPT HAZ COND RPRTD DURG ATND HR.
A110-16USAF FAC CIV OPRD WITH LTD SUPPORT; CALL 24 HR PRIOR TO ARR FOR OPS HR; MIL CONFIRM FUEL RQMNTS 24-48 HR PRIOR.
A110-17MIL FIGHTER/EMERG DVRSN CTC WARRIOR/ELMENDORF SOF 395.15; NON FIGHTER/EMERG CTC KING SALMON OPS. 24 HR POINT MNTS CTAF DURG OPS HR.
A110-2FLOCKS OF LRG BIRDS INVOF DURG SEASON.
A110-20PVT JET PRKG SE SECTION OF E RAMP - AMGR FOR INFO.
A110-26GA APRON PAVEMENT CRUMBLING; PSBL FOD HAZ. JET ACFT BE ALERT DURG RUN UP TO AVOID JET WASH DMG.
A110-27WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-28TWY P CLSD. APRON SPOTS 4 - 7 N OF MIL HANGAR CLSD EXC PROP ACFT.
A110-29ARFF AVBL FOR PART 121 ACR INVOLVED IN ETOPS WITH 30 MIN NOTICE.
A110-3OFF PAVEMENT OPS BY ACFT & HEL NA AT ACR APRON. LNDG, TKOF OR PRKG FM DIRT OR GRASS NA.
A110-31NWS BLN LAUNCH FAC ON ARPT; SEE INSIDE BACK COVER FOR OPS DETAIL.
A110-32LOCKED WHEEL TURN NA ALL SFCS.
A110-33TSA REG ARPT; SEE 49 CFR 1542. ALL GATES & DOORS RMN SECURE ALL TIMES. TSNT OR UNFAMILIAR PILOTS - AMGR FOR INFO.
A110-34BUSINESS JET PRKG GTR THAN 1 HR 48 HR PPR.
A110-7CIV TSNT PRKG ON SE RAMP ONLY; OTR PRKG GTR THAN 48 HR RQRS PERMIT.
KING SALMON (ICAO: PAKN, IATA: AKN) is a public airport located in KING SALMON, AK.
