iFlightPlanner



...

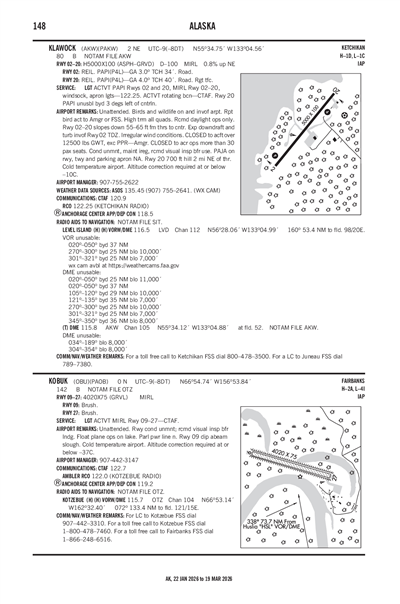

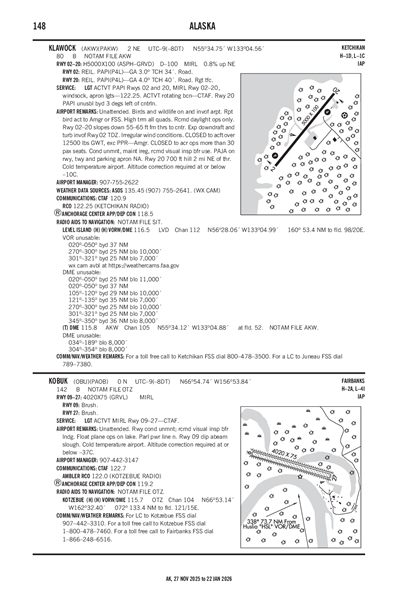

KLAWOCK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKW
KLAWOCK
PublicPUB

2 miles NE of KLAWOCK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
55° 34' 45"N 133° 04' 34"W
80' MSL
1080' MSL
20E
None Listed
KETCHIKAN (KTN)
KETCHIKAN
ANCHORAGE (ZAN)
11/28/24-12/26/24
PAKW MVFR
3:12 AM AKST
Light Rain
Overcast 3,700'
Broken 3,000'
Few 2,500'
8sm
46°F
41°F
29.41"Hg
190° 13kts
Gusts 23kts
AO2 RAB12 P0000 T00780050 TSNO
PAKW 231212Z AUTO 19013G23KT 8SM -RA FEW025 BKN030 OVC037 08/05 A2941 RMK AO2 RAB12 P0000 T00780050 TSNO
Add Your Business

PAKW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.9

ASOS

ASOS
907-755-2641
 135.45

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAKW
Mon, 12/23 2:23 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
MVFR
3:00 AM AKST - 4:00 AM AKST
Light Rain and Mist
Overcast 2,500'
4sm
200° 14kts
Gusts 23kts
Shear 230° 35kts @ 2000'
MVFR
4:00 AM AKST - 8:00 AM AKST
Light Rain and Mist
Overcast 2,500'
6sm
190° 9kts
Gusts 18kts
Shear 230° 30kts @ 2000'
VFR
8:00 AM AKST - 1:00 PM AKST
Light Rain
Broken 4,000'
Scattered 2,000'
6sm
150° 6kts
MVFR
1:00 PM AKST - 6:00 PM AKST
Light Rain and Mist
Overcast 3,500'
Broken 2,500'
5sm
110° 12kts
Gusts 21kts
Shear 160° 45kts @ 2000'
MVFR
6:00 PM AKST - 9:00 PM AKST
Light Rain and Mist
Overcast 2,500'
6sm
100° 9kts
Gusts 19kts
Shear 160° 45kts @ 2000'
VFR
9:00 PM AKST - 3:00 AM AKST
Light Rain and Mist
Overcast 4,000'
Scattered 2,500'
6sm
100° 5kts
Shear 160° 30kts @ 2000'
PAKW 231123Z 2312/2412 20014G23KT 4SM -RA BR OVC025 WS020/23035KT
   FM231300 19009G18KT 6SM -RA BR OVC025 WS020/23030KT
   FM231700 15006KT P6SM -RA SCT020 BKN040
   FM232200 11012G21KT 5SM -RA BR BKN025 OVC035 WS020/16045KT
   FM240300 10009G19KT 6SM -RA BR OVC025 WS020/16045KT
   FM240600 10005KT 6SM -RA BR SCT025 OVC040 WS020/16030KT AMD LTD TO CLD VIS AND WIND
PAKW
Domestic
11/30/240509Z !AKW 11/014 AKW COM SUNNY HAY MTN REMOTE COM OUTLET CTAF 120.9 U/S 2411300509-2502081500
No
UNATNDD
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 755-2229
DOUG CARL
PO BOX 91, ALASKA DOT&PF
CRAIG, AK 99921-0091
Phone: 907-755-2229
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
AKW
--
ACTVT PAPI RWY 02 & 20; MIRL RWY 02/20; WINDSOCK; APRON LGTS - 122.25.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Charter Service

Runway 02/20

5000 ft. x 100 ft.
ASPH
Good
GRVD
MED

--
100,000lbs
--
--
  Runway 02 Runway 20
True Heading 39°219°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 55° 34' 26"N 55° 35' 04"N
Longitude 133° 05' 01"W 133° 04' 06"W
Elevation 39' 80'
Threshold Crossing Height 34 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS & WILDLIFE ON & INVOF ARPT. RPT BIRD ACT TO AMGR OR FSS.
A110-10RCMD DALGT OPS ONLY.
A110-11IREG WIND CONDS.
A110-12CLSD TO ACFT OVR 12500 LBS GTW EXC PPR - AMGR.
A110-13WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-17COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -9C.
A110-3HIGH TRRN ALL QUADS.
A110-6COND UNMNT; MAINT IREG; RCMD VISUAL INSP BFR USE.
A110-7PAJA ON RWY, TWY & PRKG APRON NA.
A110-8CLSD TO ACR OPS MORE THAN 30 PAX SEATS.
KLAWOCK (ICAO: PAKW, IATA: AKW) is a public airport located in KLAWOCK, AK.
