PANO
NONDALTON
Public
PUB
1 miles NNE of NONDALTON, AK
View on
Map
Status
Operational
Coordinates
59° 58' 49"N
154° 50' 21"W
Elevation
314' MSL
Pattern Alt
1314' MSL
Mag Variation
14E
Fuel
None Listed
FSS
ILIAMNA (ILI)
Sectional
KODIAK
ARTCC
ANCHORAGE (ZAN)
Data Effective
11/28/24-12/26/24
PAKX (20nm)
VFR
4:15 AM AKST
RAW
Broken 8,500'
Scattered 7,000'
Scattered 6,000'
Viz
10sm
Temp
32°F
Dew
27°F
Pres
28.70"Hg
Wind
210° 4kts
RMK
AO2
PAKX 231315Z AUTO 21004KT 10SM SCT060 SCT070 BKN085 00/M03 A2870 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
PANO FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

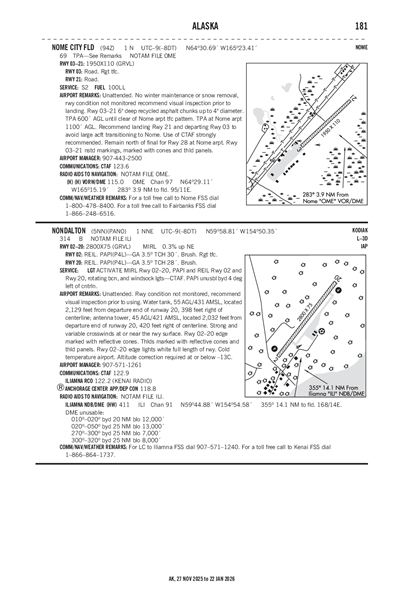

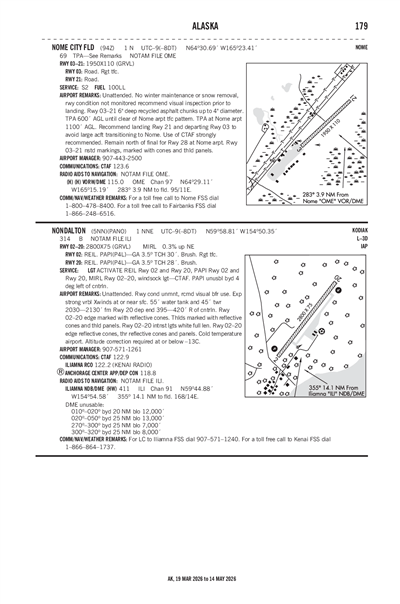

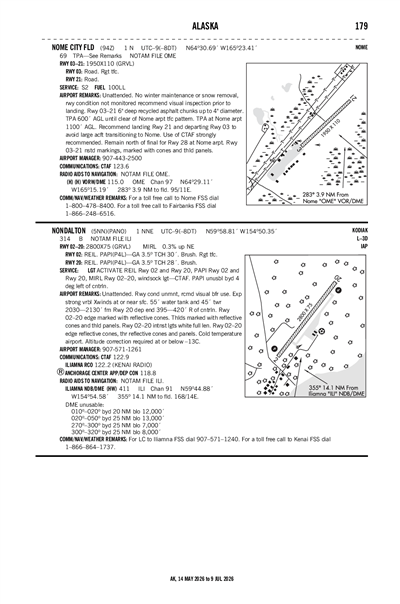

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
DUMZU ONE (OBSTACLE) (RNAV)
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 02
Terminal Area Forecast
PAIL (14nm)
RAW
Reported
Mon, 12/23 2:39 AM AKST
Valid
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
VFR
3:00 AM AKST - 10:00 AM AKST
Showers in vicinity
Broken 7,000'
Viz
6sm
Wind
360° 7kts
MVFR
10:00 AM AKST - 1:00 PM AKST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
Viz
5sm
Wind
020° 6kts
MVFR
1:00 PM AKST - 7:00 PM AKST
Light Rain and Mist
Overcast 1,500'
Viz
3sm
Wind
050° 5kts
MVFR
7:00 PM AKST - 11:00 PM AKST
Light Rain and Mist
Overcast 1,500'
Scattered 700'
Viz
5sm
Wind
070° 6kts
IFR
11:00 PM AKST - 3:00 AM AKST
Light Rain and Snow and Mist
Overcast 900'
Viz
4sm
Wind
090° 10kts
Gusts 18kts
PAIL 231139Z 2312/2412 36007KT P6SM VCSH BKN070
FM231900 02006KT 5SM -RA BR SCT015 OVC025
FM232200 05005KT 3SM -RA BR OVC015
FM240400 07006KT 5SM -RA BR SCT007 OVC015
FM240800 09010G18KT 4SM -RASN BR OVC009
PANO
Domestic
11/13/24
0059Z
!ILI 11/020 5NN RWY 02 PAPI U/S 2411130059-2501311500
ATC Tower
No
Attendance
UNATNDD
Owner
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811-2506
Phone: 907-465-1779
Manager
CLINT ANELON
PO BOX 187
ILIAMMA 99606
Phone: 907-571-1261
FSS
ILIAMNA FSS (ILI)
Toll Free: LC571-1240
NOTAM
ILI
Light Schedule
--
Lights
ACTVT MIRL RY 02/20; PAPI & REIL RYS 02 & 20; WINDSOCK LGTS - CTAF.
ACTVT ROTG BCN - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Cargo Handling
Runway 02/20
Dimensions
2800 ft. x 75 ft.
Surface Type
GRAVEL
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
38°
218°
Traffic Pattern
Right
Markings
NSTD
NSTD
Markings Condition
Latitude
59° 58' 38"N
59° 58' 60"N
Longitude
154° 50' 38"W
154° 50' 04"W
Elevation
305'
314'
Threshold Crossing Height
30 ft. AGL
28 ft. AGL
Visual Glide Path Angle
3.5°
3.5°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
RY COND NOT MONITORED; RCMD VISUAL INSPECTION PRIOR TO USING.
A110-2
WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-3
STRONG AND VARIABLE CROSSWINDS AT OR NEAR THE RWY SFC.
A110-5
WATER TANK, 55 AGL/431 AMSL, LOCATED 2,129 FEET FROM DEPARTURE END OF RUNWAY 20, 398 FEET RIGHT OF CENTERLINE; ANTENNA TOWER, 45 AGL/421 AMSL, LOCATED 2,032 FEET FROM DEPARTURE END OF RUNWAY 20, 420 FEET RIGHT OF CENTERLINE.
A110-6
COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -13C.
NONDALTON (ICAO: PANO, IATA: 5NN) is a public airport located in NONDALTON, AK.
