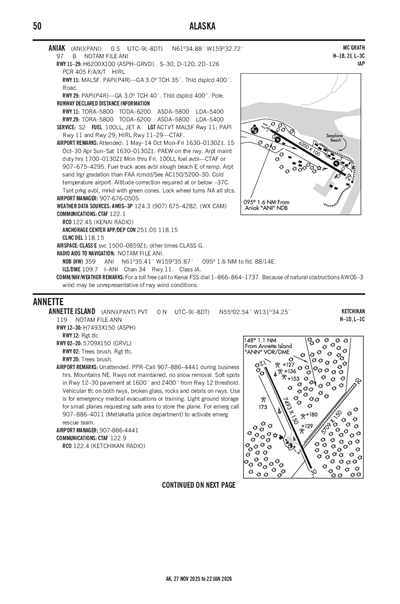

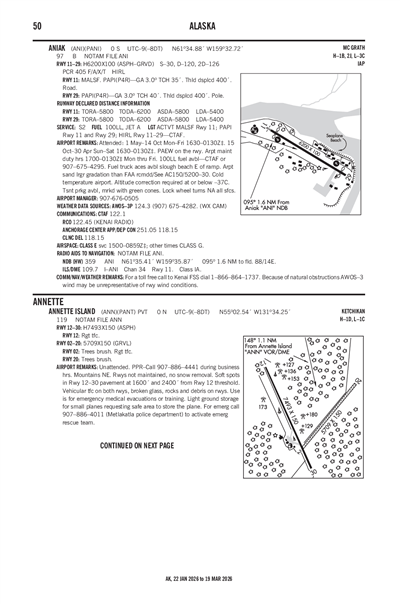

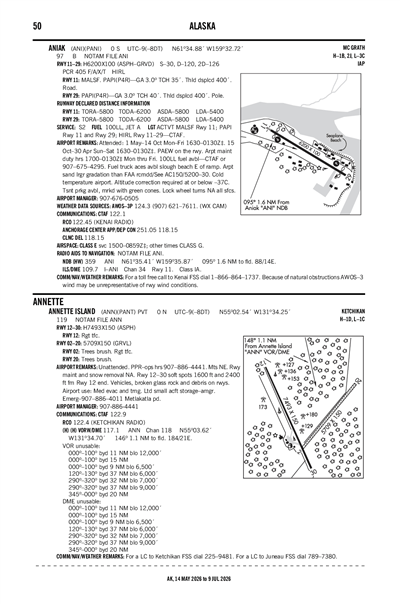

ANNETTE ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PANT
ANNETTE ISLAND
PrivatePVT

0 miles N of ANNETTE, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
55° 02' 32"N 131° 34' 15"W
119' MSL
1119' MSL
26E
None Listed
KETCHIKAN (KTN)
KETCHIKAN
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAMM (5nm) MVFR
7:56 PM AKDT
Light Rain and Mist
No Clouds
4sm
50°F
48°F
29.85"Hg
160° 12kts
Gusts 22kts
AO2 SLP200 P0003 T01000089 $
PAMM 010356Z AUTO 16012G22KT 130V200 4SM -RA BR 10/09 A2985 RMK AO2 SLP200 P0003 T01000089 $
Add Your Business

PANT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAKT (20nm)
Fri, 5/31 3:28 PM AKDT
Fri, 5/31 4:00 PM AKDT - Sat, 6/1 4:00 PM AKDT
MVFR
4:00 PM AKDT - 10:00 PM AKDT
Rain and Mist
Overcast 2,000'
Scattered 1,300'
Few 700'
3sm
140° 13kts
Gusts 22kts
Shear 140° 35kts @ 2000'
MVFR
10:00 PM AKDT - 2:00 AM AKDT
Light Rain and Mist
Overcast 2,500'
Scattered 1,000'
6sm
130° 10kts
VFR
2:00 AM AKDT - 10:00 AM AKDT
Light Showers and Rain
Overcast 3,500'
Scattered 1,500'
6sm
140° 5kts
VFR
10:00 AM AKDT - 4:00 PM AKDT
Overcast 5,000'
Scattered 2,500'
6sm
130° 10kts
PAKT 312328Z 0100/0124 14013G22KT 3SM RA BR FEW007 SCT013 OVC020 WS020/14035KT
   FM010600 13010KT 6SM -RA BR SCT010 OVC025
   FM011000 14005KT P6SM -SHRA SCT015 OVC035
   FM011800 13010KT P6SM SCT025 OVC050 AMD LTD TO CLD VIS AND WIND 0106/0115
PANT
No NOTAM Available
No
UNATNDD
METLAKATLA INDIAN COMM
PO BOX 8
METLAKATLA, AK 99926
Phone: 907-886-4441
REGINALD H. ATKINSON
PO BOX 8
METLAKATLA, AK 99926
Phone: 907-886-4441
KETCHIKAN FSS (KTN)
Toll Free: LC225-9481
ANN
--
--
N/A
N/A
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

5709 ft. x 150 ft.

GRAVEL
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 46°226°
Traffic Pattern Right Left
Markings
Markings Condition
Latitude 55° 02' 14"N 55° 02' 53"N
Longitude 131° 34' 20"W 131° 33' 09"W
Elevation 92' 99'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

7493 ft. x 150 ft.

ASPH
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 151°331°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 03' 03"N 55° 01' 59"N
Longitude 131° 35' 10"W 131° 34' 07"W
Elevation 99' 99'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1MTNS NE; RWYS NOT MAINTAINED NO SNOW REMOVAL.
A110-2FOR EMERG CALL 907-886-4011 (METLAKATLA POLICE DEPT) TO ACTVT EMERG RESCUE TEAM.
A110-3VEHICULAR TRAFFIC ON BOTH RWYS BROKEN GLASS ROCKS AND DEBRIS ON RWYS.
A110-4SOFT SPOTS IN PAVEMENT RWY 12/30 AT 1600' & 2400' FM RWY 12 THR.
A110-5PPR - CALL 907-886-4441 DURING BUSINESS HRS.
A110-6WX CAMERAS AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-7USE IS FOR EMERGENCY MEDICAL EVACUATIONS OR TRAINING.
A110-8LIGHT GROUND STORAGE FOR SMALL PLANES REQUESTING SAFE AREA TO STORE THE PLANE.
ANNETTE ISLAND (ICAO: PANT, IATA: ANN) is a private airport located in ANNETTE, AK.
