iFlightPlanner



...

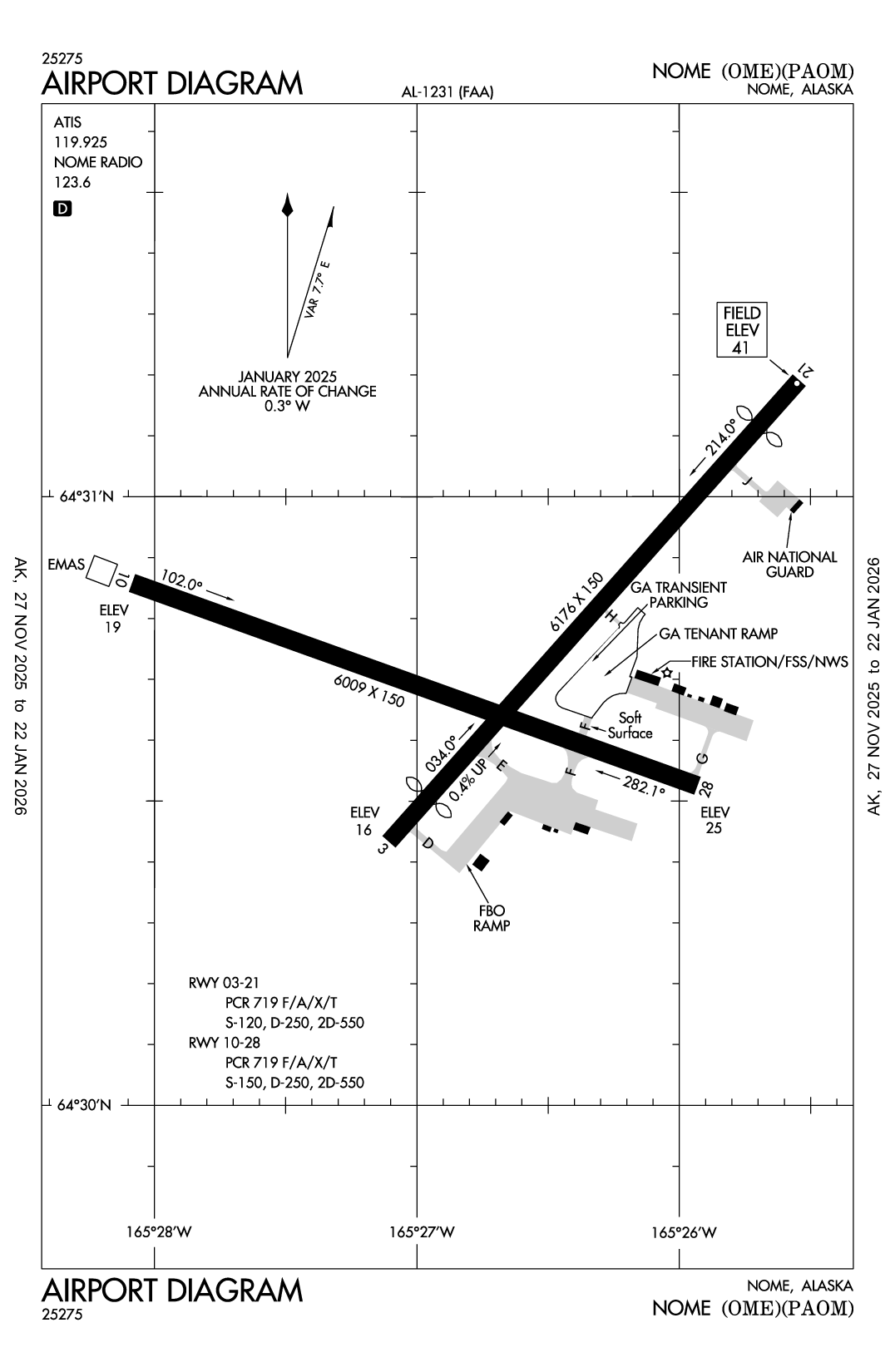

NOME - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAOM
NOME
PublicPUB

2 miles W of NOME, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
64° 30' 45"N 165° 26' 40"W
41' MSL
1141' MSL
11E
JET A, JET A-1+, 100LL
NOME (OME)
NOME
ANCHORAGE (ZAN)
12/26/24-1/23/25
PAOM IFR
7:28 AM AKST
Light Snow and Mist
Overcast 1,500'
1.25sm
24°F
21°F
29.35"Hg
010° 15kts
AO2 P0000 T10441061 $
PAOM 221628Z 01015KT 1 1/4SM -SN BR OVC015 M04/M06 A2935 RMK AO2 P0000 T10441061 $
Add Your Business

PAOM FBOs

Promote Listing
Bering Air
UNICOM: 123.6
Phone: (907) 443-5464
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 11.00
Full Serve 8.50 8.60
Fuel Notes
Prices include tax
Promote Listing
Crowley Aviation Fuels
UNICOM: 123.6
Phone: (907) 304-2626
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 1/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 11.08 7.99
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

ASOS

ASOS
907-443-4818
 119.925

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAOM
Wed, 1/22 2:38 AM AKST
Wed, 1/22 3:00 AM AKST - Thu, 1/23 3:00 AM AKST
IFR
3:00 AM AKST - 3:00 PM AKST
Light Snow and Mist
Overcast 1,500'
2sm
020° 17kts
Gusts 25kts
MVFR
3:00 PM AKST - 12:00 AM AKST
Mist
Overcast 2,500'
5sm
100° 7kts
IFR
12:00 AM AKST - 3:00 AM AKST
Light Snow and Mist
Overcast 1,500'
1.5sm
070° 19kts
PAOM 221138Z 2212/2312 02017G25KT 2SM -SN BR OVC015
   FM230000 10007KT 5SM BR OVC025
   FM230900 07019KT 1 1/2SM -SN BR OVC015
PAOM
Domestic
1/22/251530Z !OME 01/299 OME RWY 28 FICON 4/4/4 30 PCT 1/8IN DRY SN AND 70 PCT FROST OBS AT 2501221530. 2501221530-2501231530
1/22/251528Z !OME 01/298 OME RWY 03 FICON 3/2/2 30 PCT ICE AND 70 PCT COMPACTED SN OBS AT 2501221528. 2501221528-2501231528
1/22/251527Z !OME 01/297 OME APRON ALL FICON COMPACTED SN OBS AT 2501221527. 2501221527-2501231527
1/22/251527Z !OME 01/296 OME TWY ALL FICON COMPACTED SN OBS AT 2501221527. 2501221527-2501231527
1/22/250110Z !OME 01/291 OME TWY ALL LGT U/S 2501220110-2503312359
1/1/251905Z !OME 01/010 OME SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2501011905-2506141500EST
10/30/242349Z !OME 10/180 OME TWY J IRREGULAR SFC 2410302349-2501302349
FDC
6/15/231726Z !FDC 3/1695 OME IAP NOME, NOME, AK.
RNAV (GPS) RWY 3, AMDT 1...
MISSED APPROACH: CLIMBING RIGHT TURN TO 2000 DIRECT MAREE AND HOLD.
TDZE 34. LNAV CATS A/B/C MDA 460/HAT 426, CAT D MDA 600/HAT 566, VIS CAT D 1 5/8. TAA SECTOR 120/7 CW 300/7 TO MAREE MINIMUM ALTITUDE 2000.
2306151726-2506151726EST
No
0700-1830
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-443-2500
GEORGE KOST
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
OME
--
ACTVT MALSR RWY 28; REIL RWY 03 &10; PAPI RWY 03, 10, & 28; HIRL RWY 10/28; MIRL RWY 03/21 - CTAF. PAPI RWY 21 PAPI OPR CONSLY.
N/A
Yes
Yes
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Cargo Handling

Runway 03/21

6176 ft. x 150 ft.
ASPH
Good
GRVD
MED

120,000lbs
250,000lbs
550,000lbs
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 64° 30' 26"N 64° 31' 11"N
Longitude 165° 27' 07"W 165° 25' 33"W
Elevation 16' 40'
Threshold Crossing Height 29 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

6009 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

150,000lbs
250,000lbs
550,000lbs
--
  Runway 10 Runway 28
True Heading 110°290°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 64° 30' 52"N 64° 30' 32"N
Longitude 165° 28' 05"W 165° 25' 56"W
Elevation 19' 25'
Threshold Crossing Height 38 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10ARPT SAND LRGR GRADATION THAN FAA RCMDD/SEE AC150/5200-30.
A110-11130 FT LGTD WIND TURBINE TWRS 4 NM NNW.
A110-12WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-16TSA REG; SEE 49 CFR 1542. GATES & DOORS MUST BE SECURED H24. INFO - AMGR.
A110-2AIRFIELD MAINT SVCS AVBL 0700 -1730; AFT HR - AMGR.
A110-3ANG: AVN OPERG FAC - ANG HNGR 907-387-1800. OPS 1700-0100Z; LTD MAINT & SVCS AVBL.
A110-5BIRDS INVOF ARPT SEP-OCT & MAY-JUN.
A110-7RWY 21 & 28 ARR MNTN TFC PAT ALT TIL FNL.
NOME (ICAO: PAOM, IATA: OME) is a public airport located in NOME, AK.
