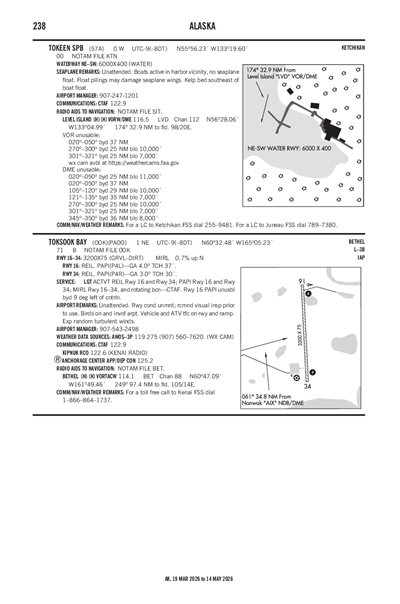

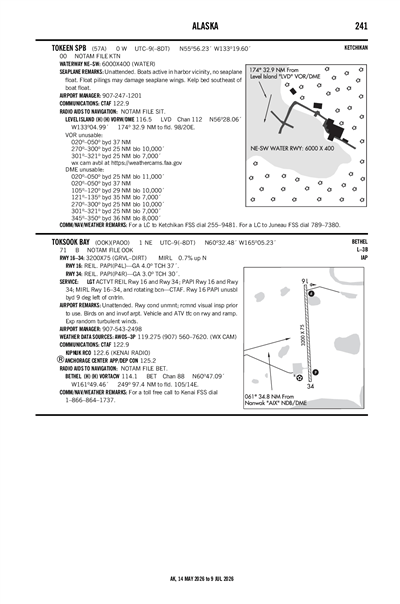

TOKSOOK BAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAOO
TOKSOOK BAY
PublicPUB

1 miles NE of TOKSOOK BAY, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 32' 29"N 165° 05' 14"W
71' MSL
1071' MSL
12E
None Listed
KENAI (ENA)
BETHEL
ANCHORAGE (ZAN)
11/28/24-12/26/24
PAVA (62nm) VFR
2:56 AM AKST
Overcast 11,000'
10sm
21°F
18°F
29.01"Hg
030° 15kts
AO2 SLP824 T10611078 11050 21061 51002 FZRANO
PAVA 231156Z AUTO 03015KT 10SM OVC110 M06/M08 A2901 RMK AO2 SLP824 T10611078 11050 21061 51002 FZRANO
Add Your Business

PAOO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3P

AWOS-3P
907-427-7004
 119.275

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PAOO
Domestic
11/20/240550Z !OOK 11/001 OOK RWY 16 PAPI U/S 2411200550-2502221500EST
10/30/241613Z !OOK 10/021 OOK SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2410301613-2502011500EST
No
UNATNDD
ALASKA DOT&PF CENTRAL REGION
PO BOX 196900
ANCHORAGE, AK 99519-6900
Phone: (907) 269-0749
JOSEPH LARAUX
PO BOX 505
BETHEL, AK 99559
Phone: (907) 543-2498
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
OOK
--
ACTVT REIL RWY 16 & 34; PAPI RWY 16 & 34; MIRL RWY 16/34 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

3200 ft. x 75 ft.
GRVL DIRT
Good
NONE
MED

--
--
--
--
  Runway 16 Runway 34
True Heading 177°357°
Traffic Pattern
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 60° 32' 45"N 60° 32' 13"N
Longitude 165° 05' 16"W 165° 05' 12"W
Elevation 71' 49'
Threshold Crossing Height 37 ft. AGL 30 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY COND UNMNT; RCMND VISUAL INSP PRIOR TO USE.
A110-3EXP RANDOM TURBULENT WINDS.
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-8BIRDS ON & INVOF ARPT. VEHICLE & ATV TFC ON RWY & RAMP.
TOKSOOK BAY (ICAO: PAOO, IATA: OOK) is a public airport located in TOKSOOK BAY, AK.
