PAQT
NUIQSUT
Public
PUB
0 miles S of NUIQSUT, AK
View on
Map
Status
Operational
Coordinates
70° 12' 35"N
151° 00' 23"W
Elevation
45' MSL
Pattern Alt
1045' MSL
Mag Variation
21E
Fuel
None Listed
FSS
DEADHORSE (SCC)
Sectional
POINT BARROW
ARTCC
ANCHORAGE (ZAN)
Data Effective
11/28/24-12/26/24
PAQT
MVFR
3:11 AM AKST
RAW
Haze
Broken 4,000'
Broken 2,800'
Viz
5sm
Temp
-12°F
Dew
-19°F
Pres
29.93"Hg
Wind
010° 8kts
RMK
AO2 T12441283 TSNO $
PAQT 231211Z AUTO 01008KT 5SM HZ BKN028 BKN040 M24/M28 A2993 RMK AO2 T12441283 TSNO $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
PAQT FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.8
ASOS
ASOS
907-480-5577
135.35
FAA A/FD Pages
FAA A/FD Page

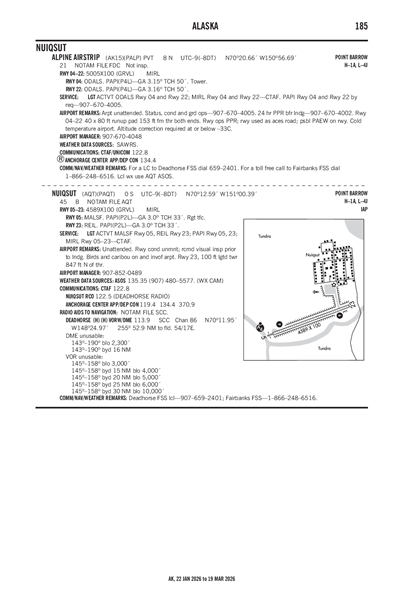

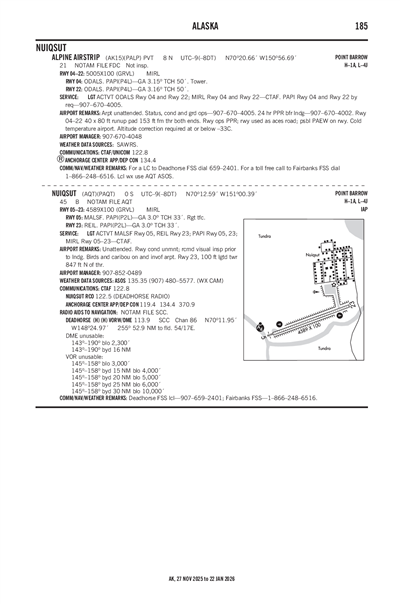

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) RWY 05
RNAV (GPS) RWY 23
Terminal Area Forecast
PAQT
RAW
Reported
Mon, 12/23 2:20 AM AKST
Valid
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
MVFR
3:00 AM AKST - 8:00 AM AKST
Light Snow and Mist
Overcast 4,000'
Viz
5sm
Wind
020° 7kts
MVFR
8:00 AM AKST - 3:00 AM AKST
Haze
Overcast 1,500'
Viz
4sm
Wind
020° 7kts
PAQT 231120Z 2312/2412 02007KT 5SM -SN BR OVC040
FM231700 02007KT 4SM HZ OVC015
PAQT
Domestic
12/19/24
2356Z
!AQT 12/004 AQT COM REMOTE COM OUTLET 122.5 U/S 2412192356-2502231500EST
7/19/24
1217Z
!AQT 07/004 AQT RWY 05 SEQUENCED FLG LGT U/S 2407191217-2501212111EST
7/19/24
1216Z
!AQT 07/003 AQT RWY 23 PAPI U/S 2407191216-2501212111EST
FDC
4/12/24
1500Z
!FDC 4/0181 AQT IAP NUIQSUT, NUIQSUT, AK.
RNAV (GPS) RWY 23, AMDT 1B...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SCC/PASC ALTIMETER SETTING AND INCREASE LPV DA TO 418 FEET; INCREASE LNAV/VNAV DA TO 492 FEET AND ALL VISIBILITIES 3/8 SM. INCREASE ALL MDAS 140 FEET AND LNAV AND CIRCLING VISIBILITY CAT C 1/4 SM.
2404121500-2604121500EST
ATC Tower
No
Attendance
UNATNDD
Owner
NORTH SLOPE BOROUGH
BOX 69
BARROW, AK 99723
Phone: 907-852-2611
Manager
GEORGE AHMAOGAK
BOX 69
BARROW, AK 99723
Phone: 907-852-0489
FSS
DEADHORSE FSS (SCC)
Toll Free: LC659-2401
NOTAM
AQT
Light Schedule
--
Lights
ACTVT MALSF RWY 05, REIL RWY 23; PAPI RWY 05, 23; MIRL RWY 05/23 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
None
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 05/23
Dimensions
4589 ft. x 100 ft.
Surface Type
GRAVEL
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 05
Runway 23
True Heading
70°
250°
Traffic Pattern
Right
Markings
Markings Condition
GOOD
GOOD
Latitude
70° 12' 28"N
70° 12' 43"N
Longitude
151° 01' 26"W
150° 59' 21"W
Elevation
44'
38'
Threshold Crossing Height
33 ft. AGL
33 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
MALSF
Centerline Lights
Runway End Identifier Lights
Yes
A110-1
BIRDS & CARIBOU ON & INVOF ARPT.
A110-3
RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-5
DEADHORSE FSS LCL - 907 659-2401; FAIRBANKS FSS - 1-866-248-6516.
A110-6
WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
NUIQSUT (ICAO: PAQT, IATA: AQT) is a public airport located in NUIQSUT, AK.
