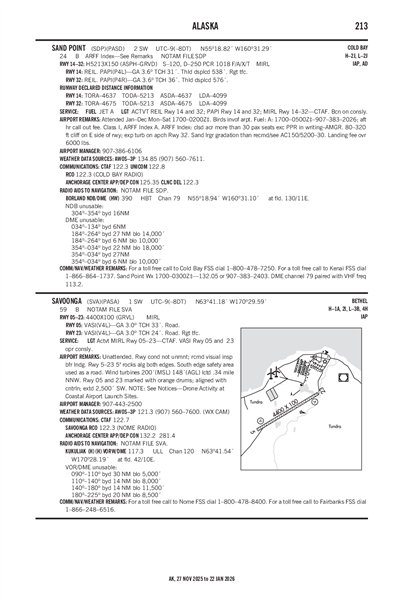

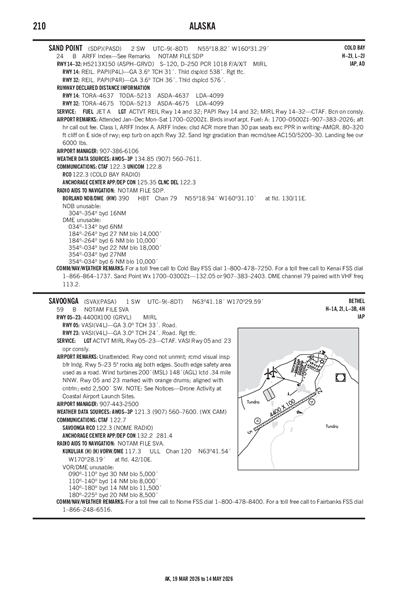

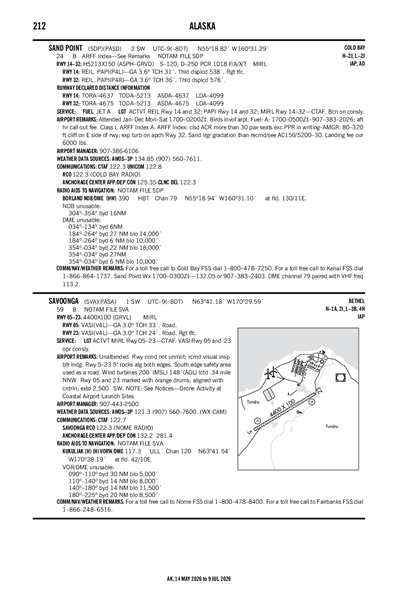

SAVOONGA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASA
SAVOONGA
PublicPUB

1 miles SW of SAVOONGA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
63° 41' 11"N 170° 29' 35"W
59' MSL
1059' MSL
05E
None Listed
NOME (OME)
BETHEL
ANCHORAGE (ZAN)
11/28/24-12/26/24
PASA MVFR
2:56 AM AKST
Light Snow
Overcast 1,600'
9sm
19°F
14°F
29.36"Hg
030° 29kts
Gusts 35kts
AO2 PK WND 02038/1109 SLP942 P0000 60000 T10721100 11061 21072 53001 FZRANO
PASA 231156Z AUTO 03029G35KT 9SM -SN OVC016 M07/M10 A2936 RMK AO2 PK WND 02038/1109 SLP942 P0000 60000 T10721100 11061 21072 53001 FZRANO
Add Your Business

PASA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.7

AWOS-3P

AWOS-3P
907-984-6429
 121.3

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
PASA
FDC
10/9/241523Z !FDC 4/7038 SVA IAP SAVOONGA, SAVOONGA, AK.
RNAV (GPS) RWY 23, AMDT 2...
DELETE NOTE: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA
BELOW -22°C OR ABOVE 54°C.
DELETE LPV DA 308/HAT 250 ALL CATS. DELETE LNAV/VNAV DA 408/HAT
350 ALL CATS.
THIS IS RNAV (GPS) RWY 23, AMDT 2A. 2410091523-PERM
7/11/240901Z !FDC 4/9936 SVA IAP SAVOONGA, SAVOONGA, AK.
RNAV (GPS) RWY 23, AMDT 2...
LPV DA NA, LNAV/VNAV DA NA.
2407110901-2607111918EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: 907-451-2200
GEORGE KOST
PO BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
SVA
--
ACTVT MIRL RY 05/23 - CTAF. VASI RYS 05 & 23 OPER CONTINUOUSLY .
N/A
Yes - Lighted
Yes
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 05/23

4400 ft. x 100 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 60°240°
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition
Latitude 63° 40' 60"N 63° 41' 22"N
Longitude 170° 30' 17"W 170° 28' 53"W
Elevation 59' 55'
Threshold Crossing Height 33 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3SOUTH EDGE SAFETY AREA USED AS A ROAD.
A110-4RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTIONS PRIOR TO LANDING.
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-6WIND TURBINES 200 FT (MSL) 148 FT (AGL) LOCATED .34 MILES NNW OF MIDPOINT RY 05/23.
SAVOONGA (ICAO: PASA, IATA: SVA) is a public airport located in SAVOONGA, AK.
